Danfoss FC 300 Design Guide

FC 300 Design Guide
How to Program
NOTE
If S-ramp [1] is selected and the
reference during ramping is changed,
the ramp time may be prolonged in
order to allow jerk free movement which may
result in a longer start or stop way.
Additional adjustment of the S-ramp ratios or
switching initiators m ay be nec essary.

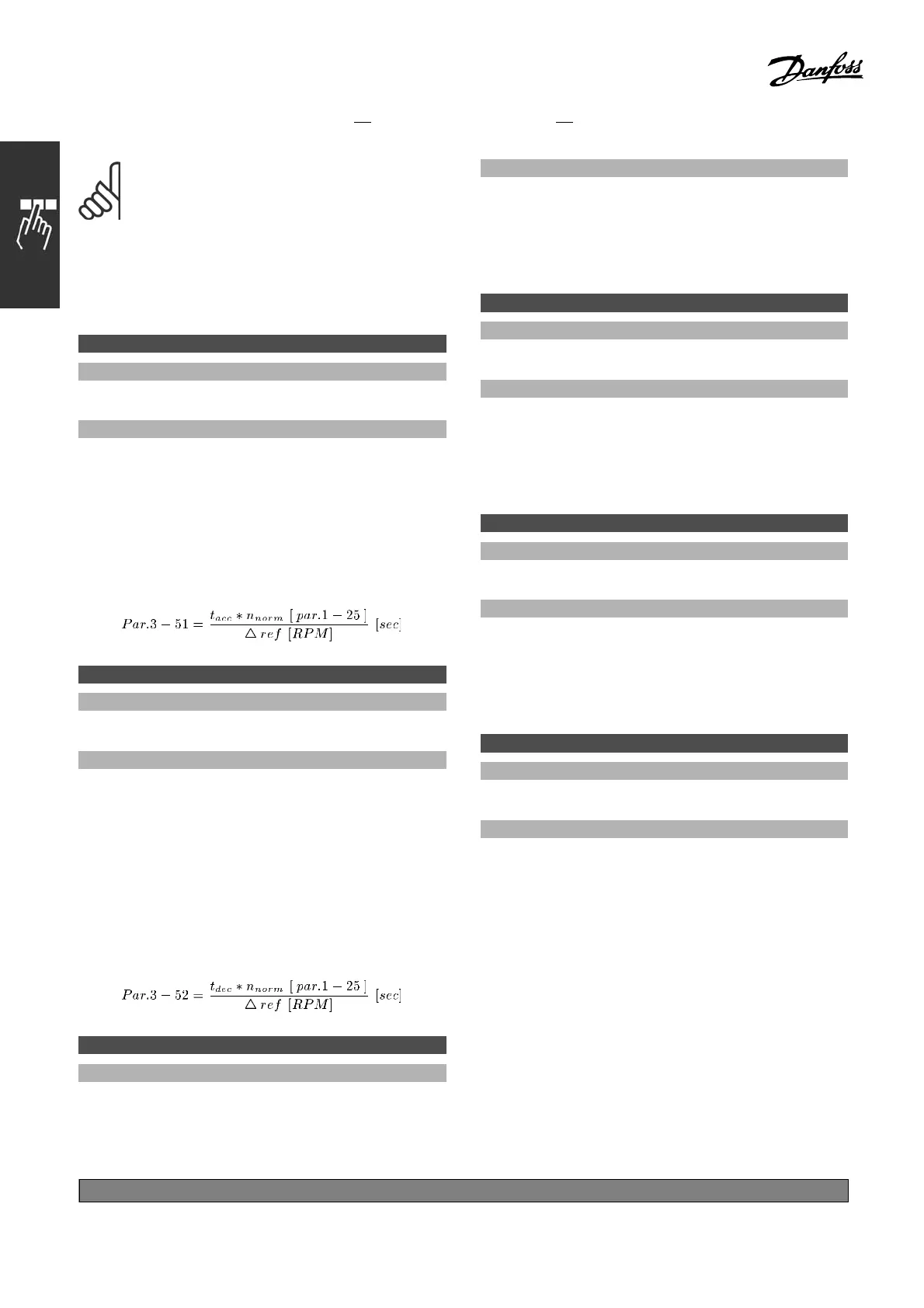

3-51 Ramp 2 Ramp-up Time
Range:
0.01 - 3600.00 s
*
s
Function:
Enter the ramp-up time , i.e., the acceleration
time from 0 RPM to the rated mo tor speed n
M,N
(par. 1-25). Choose a ramp-up time such that
the output current does not exceed the current
limit in par. 4-18 during ramping. The value
0.00 corresponds to 0.01 sec. in speed mode.
See ramp-down time in par. 3-52.
3-52 Ramp 2 Ramp-down Time
Range:
0.01 - 3600.00 s.
*
s
Function:
Enter the ramp-down time, i.e. the deceleration
time from the rated motor speed n
M,N
(par. 1-25)
to 0 RPM. Choose a ramp-down time such that
no over-voltage arises in the inverter due to
regenerative operation of the motor, and such
that the gen erated curre nt does not exceed
the current lim it set in par. 4-18. The value
0.00 corresponds to 0.01 s in speed mode.
See ramp-up time in pa r. 3-51.
3-55 Ramp 2 S-ramp Ratio at Accel. Start
Range:
1 - 99%
*
50%
Function:
Enter the pr oportion of the total ramp-up time (par.
3-51) in which the acceleration torque increases.
The la rger the percentage value, the greater the
jerk compensation achieved, and thus the lower
the torque jerks in the application.
3-56 Ramp 2 S-ramp Ratio at Accel. End
Range:
1-99%
*
50%
Function:
Enter the pr oportion of the total ramp-up time (par.
3-51) in which the acceleration torque decreases.
The la rger the percentage value, the greater the
jerk compensation achieved, and thus the lower
the torque jerks in the application.
3-57 Ramp 2 S-ramp Ratio at Decel. Start
Range:
1-99%
*
50%
Function:
Enter the proportion of the total ramp-down time
(par. 3-52) where the dece leration torque increases
The la rger the percentage value, the greater the
jerk compensation achieved, and thus the lower
the torque jerks in the application.
3-58 Ramp 2 S-ram p Ratio a t Decel. End
Range:
1-99%
*
50%
Function:
Enter the proportion of the total ramp-down
time (par. 3-52) where the deceleration torque
decreases. The larger the percentage value, the
greater the jerk compensation achieved, and thus
the lower the torque jerks in the application.
*
default setting ()display text []value for use in communication via serial communication port
182
MG.33.B
6.22 - V LT is a registered Danfoss trademark
