" Resolver Option MCB 103
MCB 103 Resolver option is used for interfacing
resolver motor feedback to the FC 300
AutomationDrive. Resolvers are used bas ically as
motor feedback devices for permanent magnet
brushless synchronous motors. When the resolver
option is ordered separately, the kit includes:
• Resolver option MCB 103
• Enlarged LCP fixture and enlarged terminal cover
Selection of parameters: 17-5x resolver interface.
The resolver interface must support one resolver
with the following specifications:
Resolver specifications:
The MCB 103 resolver option supports various
resolver types.
Number of poles on
resolver
Par. 17-50: 2 or 4 *2
Resolver input voltage Par. 17-51: 2.0 – 8.0
V *7.0 V
Carrier frequency (ref.
voltage)
Par. 17-5 2: 2.5 – 15
kHz
*10.0 kHz
Transformation ratio Par. 17-53: 0.1 – 1.1
*0.5
Primary voltage 2-8 Vrms
Primaryfrequency 2kHz-15kHz
Primary current Max. 50 mArms
Secondary input
voltage
Max 8 Vrms
Resolution 10 bit @ max input
amplitude
Secondary load App. 10 kΩ
Cable le ngth Up to 490 ft [150 m]
Note: Cables MUST
be shielded and
separated from the
motor cables.

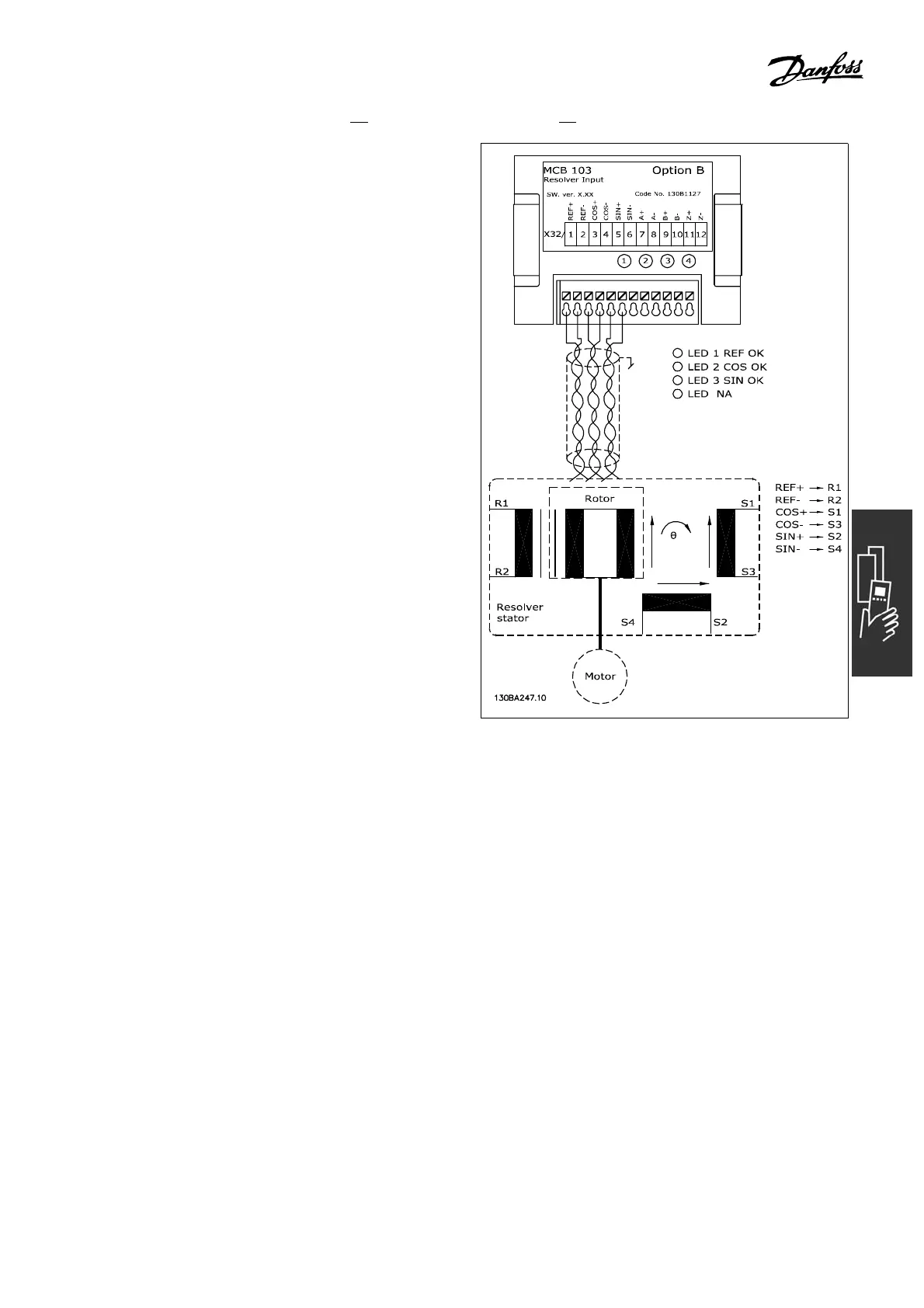

LED indicators
LED 1 is on when the reference signal
is OK to resolver
LED 2 is on when cosine signal is OK from re solver
LED 3 is on when sinus signa l is OK from resolver
The L EDs are active when par. 17-61 is
set to Warning or Trip.
