Danfoss FC 300 Design Guide

FC 300 Design Guide
FC 300 Selection
" Encoder Option MCB 102
The encoder module is used for interfacing feedback from motor or process. Parameter settings in group 17-xx
U
sed for:
• VVC plus closed-loop
• Flux Vector Speed control
• Flux Vector Torque control
• Permanent magnet motor with SinCos
feedback (Hipe rface
®
)
Incremental encoder: 5 V TTL type
SinCos Encoder: Stegmann/SICK (Hiperface
®
)
Selection of parameters in par. 17-1* and par.
1-02
When the encoder option kit is ordered
separately, the kit includes:
•EncodermoduleMCB102
• Enlarged LCP fixture and enlarged terminal
cover
The encoder option does not support FC 302
adjustable frequency drives manufactured
before week 50/2004.
Min. software version: 2.03 (par. 15-43)

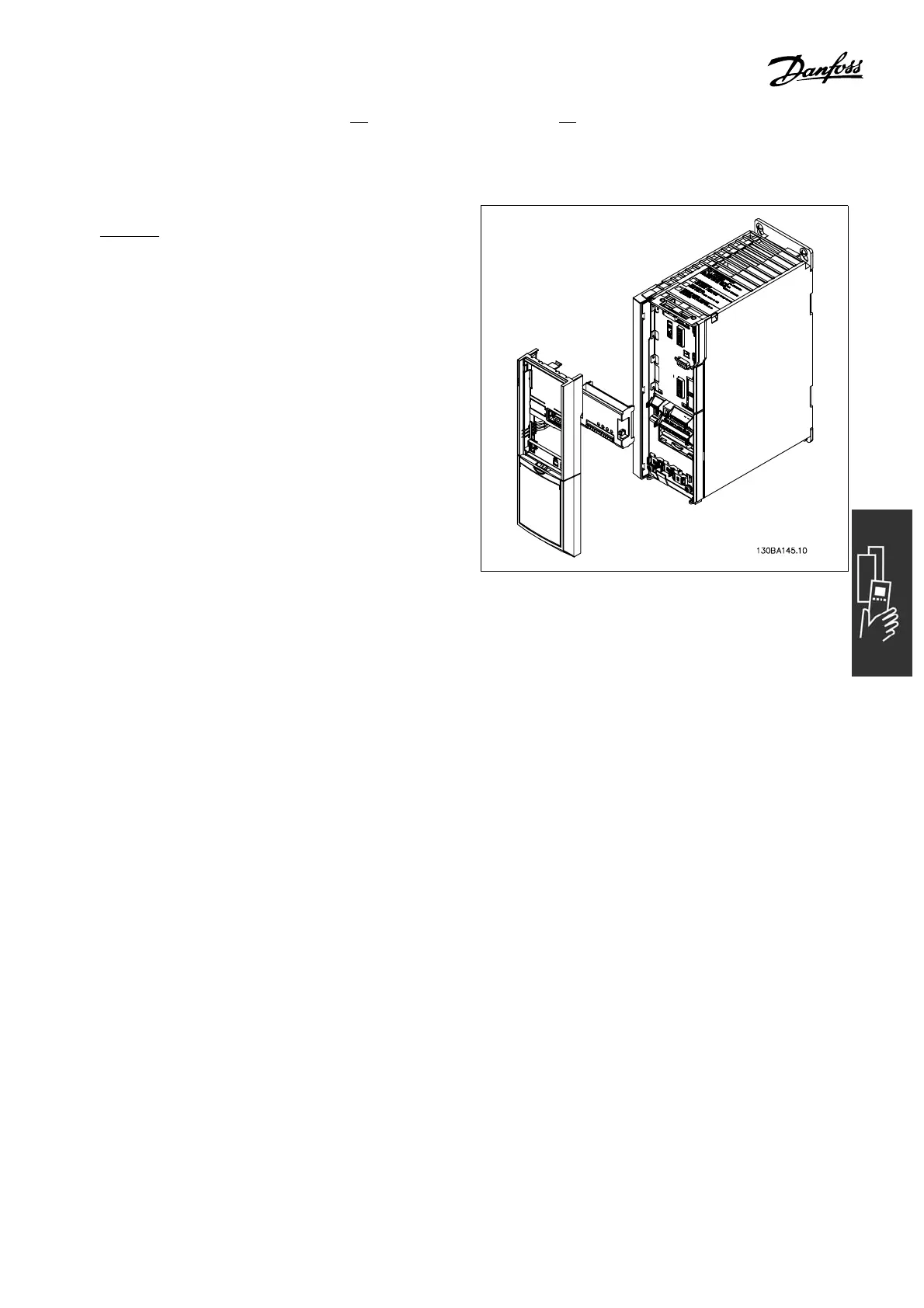

Installation of MCB 102:
• Thepowertotheadjustablefrequencydrivemustbedisconnected.
• Remove the LCP, the terminal cover, and the cradle from the FC
30x.
• Fit the M CB 102 option in slot B.
• Connect the control ca ble s and fasten the cables by the clamp to chassis.
• Fit the enla rged LCP fixture and enlarged terminal cover.
• Replace the LCP.
• Connect the powe r to the adjustable frequency drive.
• Select the encoder functions in par. 17-*.
• See also description in chapter Introduction to FC 300,sectionSpeed PID Control
75
MG.33.B6.22 - VLT is a registered Danfoss trademark

Danfoss FC 300 Specifications

General

Enclosure	IP20
Approvals	cUL, UL, CE
EMC filter	Built-in
Communication Options	CANopen, PROFIBUS DP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Output Voltage	0-100% of supply voltage
