How to Program
" Parameter Selection
In Main Menu mode, the parameters are divided
into groups. You select a parameter group
using the navigation keys.
The following parameter groups are accessib le:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2Brakes
3 References/Ramps
4 Limits/Warnings
5 Digital In/Out
6 Analog In/Out
7 Controls
8 Comm. and Options
9Profibus
10 CANser.com.bus
11 Reserved Com. 1
12 Reserved Com. 2
13 Smart Logic
14 Special Functions
15 Drive Information
16 Data Readouts
17 Motor Feedb. Option
After selecting a parameter group, choose a
parameter using the navig ation keys.

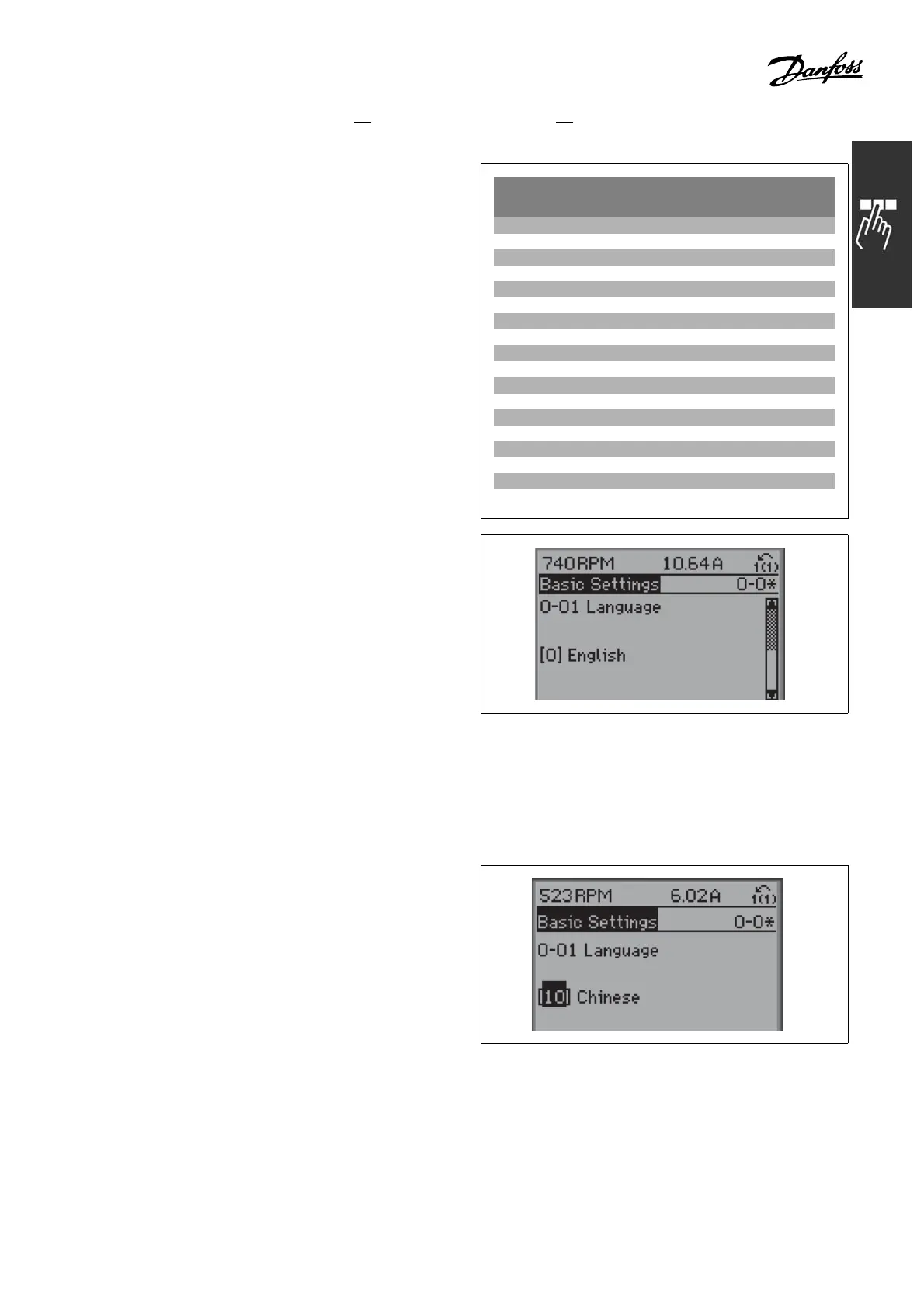

The middle section on the display shows the
parameter number and name as well as the
selected parameter value.
130BP067.10
" Changing Data
The procedure for changing data is the same whether you select
a parameter in the Quick menu
or the Main menu mode. Press [OK] to change the selected parameter.
The procedure for changing data depends on whether the selected parameter represents
a numerical data value or a text value.
" Changing a Text Value
If the selected parameter is a text value, change the
text value by means of the up/down navigation keys.
The up key increases the value, and the down
key decreases the value. Place the cursor on the
value you want to save and press [OK].
130BP068.10
143
MG.33.B6.22 - VLT is a registered Danfoss trademark
