Danfoss FC 300 Design Guide

FC 300 Design Guide

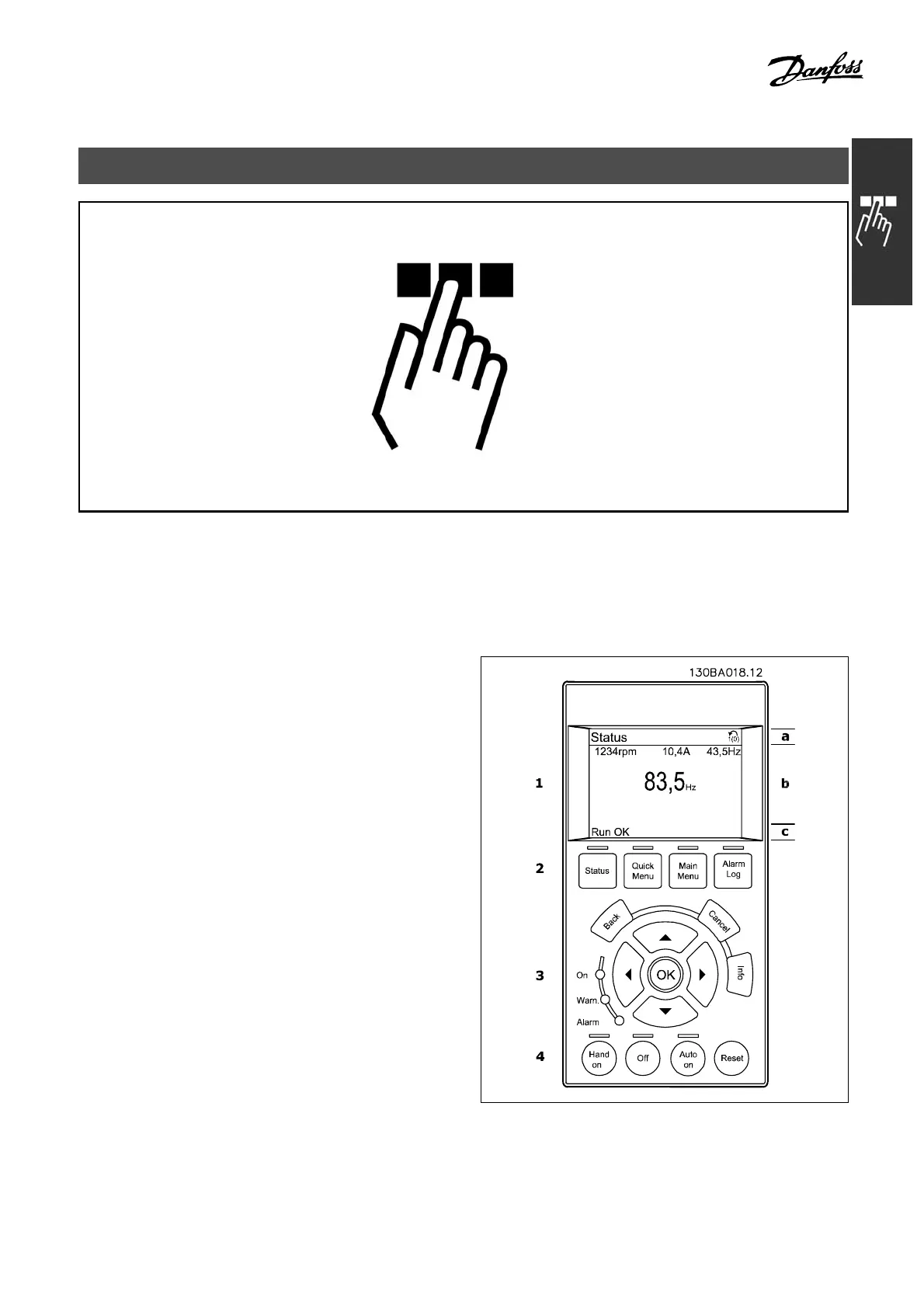

How to Program
" The Graphical and Numerical FC 300 Local
" HowtoProgramontheGraphicalLocal
Control Panel
The following instructions are valid for the
graphical LCP (LCP 102):
The control panel is divided into four
functional groups:
1. Graphical display with Status lines.
2. Menu keys and LEDs - changing parameters
and switching between display functions.
3. Navigation keys and LEDs.
4. Operation keys and LEDs.
All data is displayed in a graphical LCP display,
which can show up to five items of operating
data while displaying [Status].
Display lines:
a. Status line:Status mess ages displaying
icons and graphic.
b. Line 1-2: Operator data lines displaying data
defined or chosen by the user. By pressing the
[Status] key, up to one extra line can be added.
c. Status line: Status messages displaying t ext.
135
MG.33.B6.22 - VLT is a registered Danfoss trademark

Danfoss FC 300 Specifications

General

Enclosure	IP20
Approvals	cUL, UL, CE
EMC filter	Built-in
Communication Options	CANopen, PROFIBUS DP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Output Voltage	0-100% of supply voltage
