" Motor Connection
NOTE
Motor cable must be shielded/armore d. If
an unshielded/ una rmored cable is used,
some EMC requirements are not complied
with. For more information, see EMC specifications.

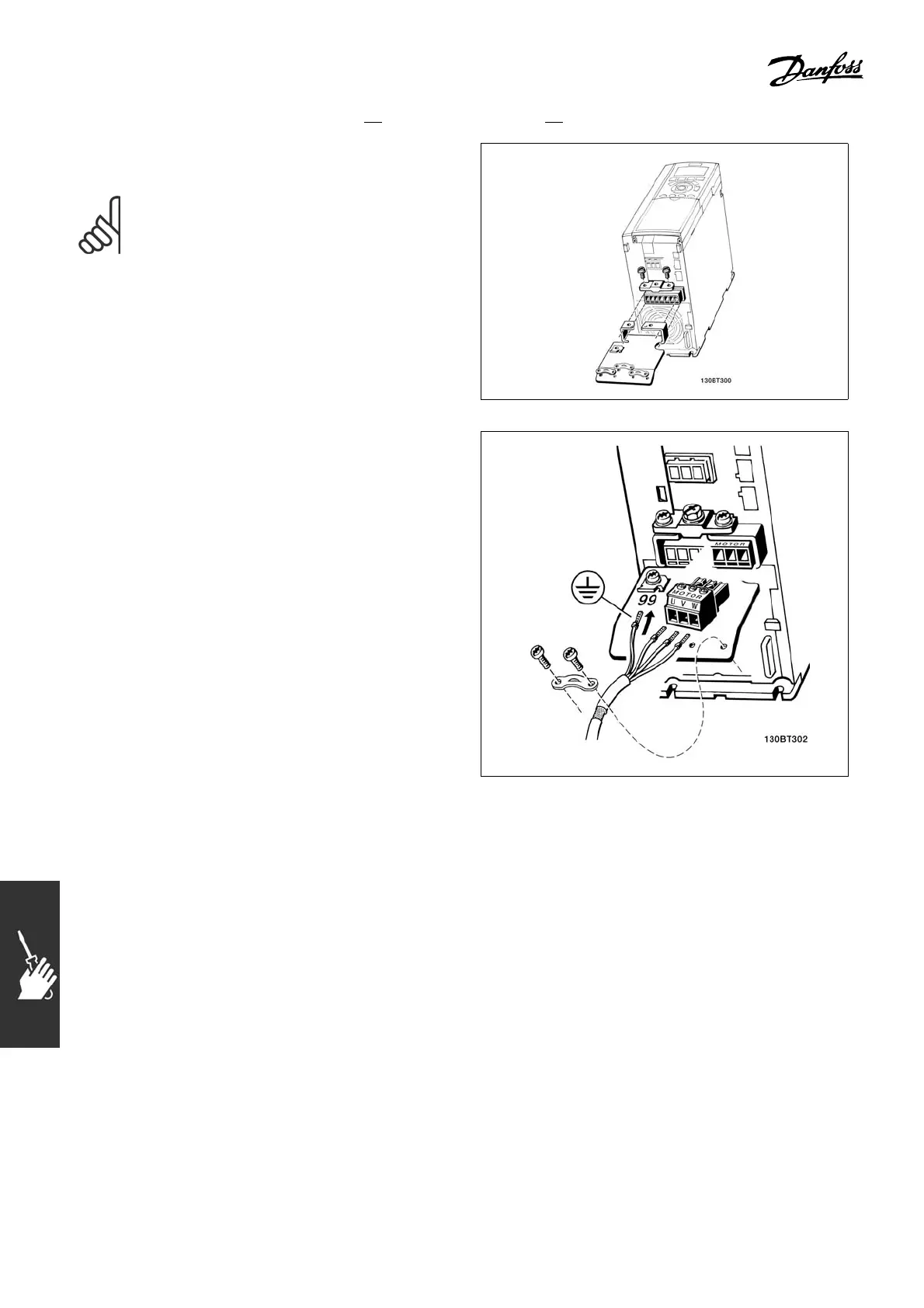

1. Fasten decoupling plate to the bottom
of the FC 30 0 with screws and washers
from the accessory bag.
2. Attach motor cable to terminals 96 ( U),
97 (V ), 98 (W).
3. Connect to ground connection (terminal
99) o n decoup ling plate with screws from
the accessory bag.
4. Insertterminals96(U),97(V),98(W)and
motor cable to terminals labeled MOTOR.
5. Fasten shielded cable to decoupling plate with
screws and washers from the accessory bag.
≤ 10 HP [7.5 kW] IP 20
100
