FC 300 Design Guide
How to Install
" Final Set-Up and Test
To test the set-up a nd ensure that the adjustable frequency drive is running, follow these steps.

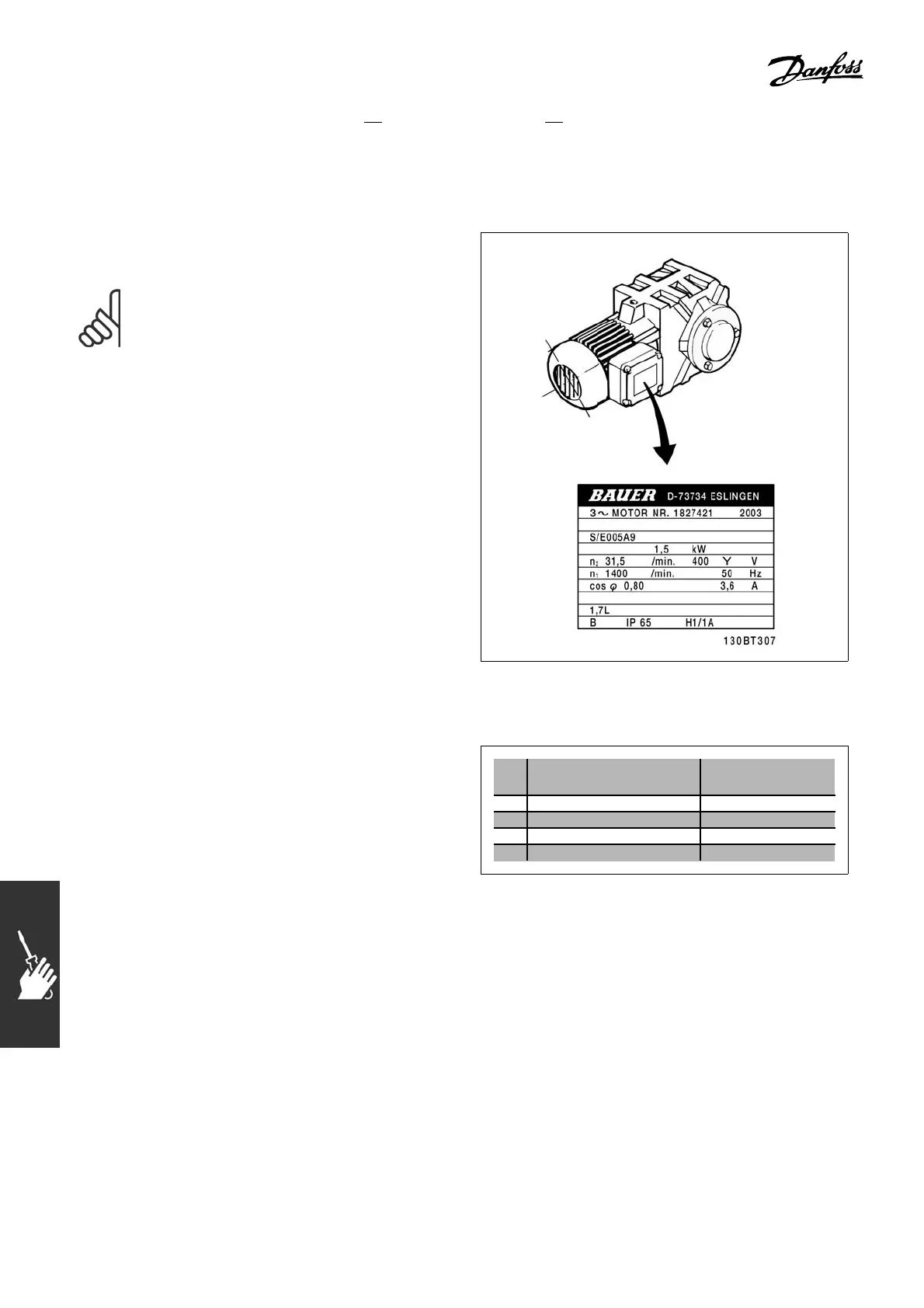

Step 1. Locate the motor nameplate.
NOTE
The motor is either star- (Y) or
delta-connected (∆). This information is
located on the motor nameplate data.
Step 2. Enter the motor nam eplate data
in this parameter list.
To ac cess this list first press the [QUICK MENU]
key, then select “Q2 Quick Setup”.
1. Motor Power [kW]
or Motor Power [HP]
par. 1-20
par. 1-21
2. Motor Voltage par. 1-22
3. Motor Frequency par. 1-23
4. Motor Current par. 1-24
5. Motor Nom inal Speed par. 1-25
Step 3. Activate the Automatic Motor Adapta tion (AM A)
Performing an AMA will ensure optimum performance. The AMA measures the values
from the motor model equivalent diagram.
1. Connect terminal 37 t o termi nal 12 (FC 302).
2. Connect terminal 27 to term inal 12 or set par. 5-12 to ’No function’ (par. 5-12 [0])
3. Activate the AMA par. 1-29.
4. Choose between complete or reduced AMA . If an LC filter is mounted , run only the re duced
AMA, or remove the LC filter during the AMA procedure.
5. Pressthe[OK]key. Thedisplayshows“Press[Handon]tostart”.
6. Press the [Han d on] key. A progress bar indicates if the AMA is in progress.
110
MG.33.B6.22 - VLT is a registered Danfoss trademark
