How to Install
Control terminals (all enclosures)
"

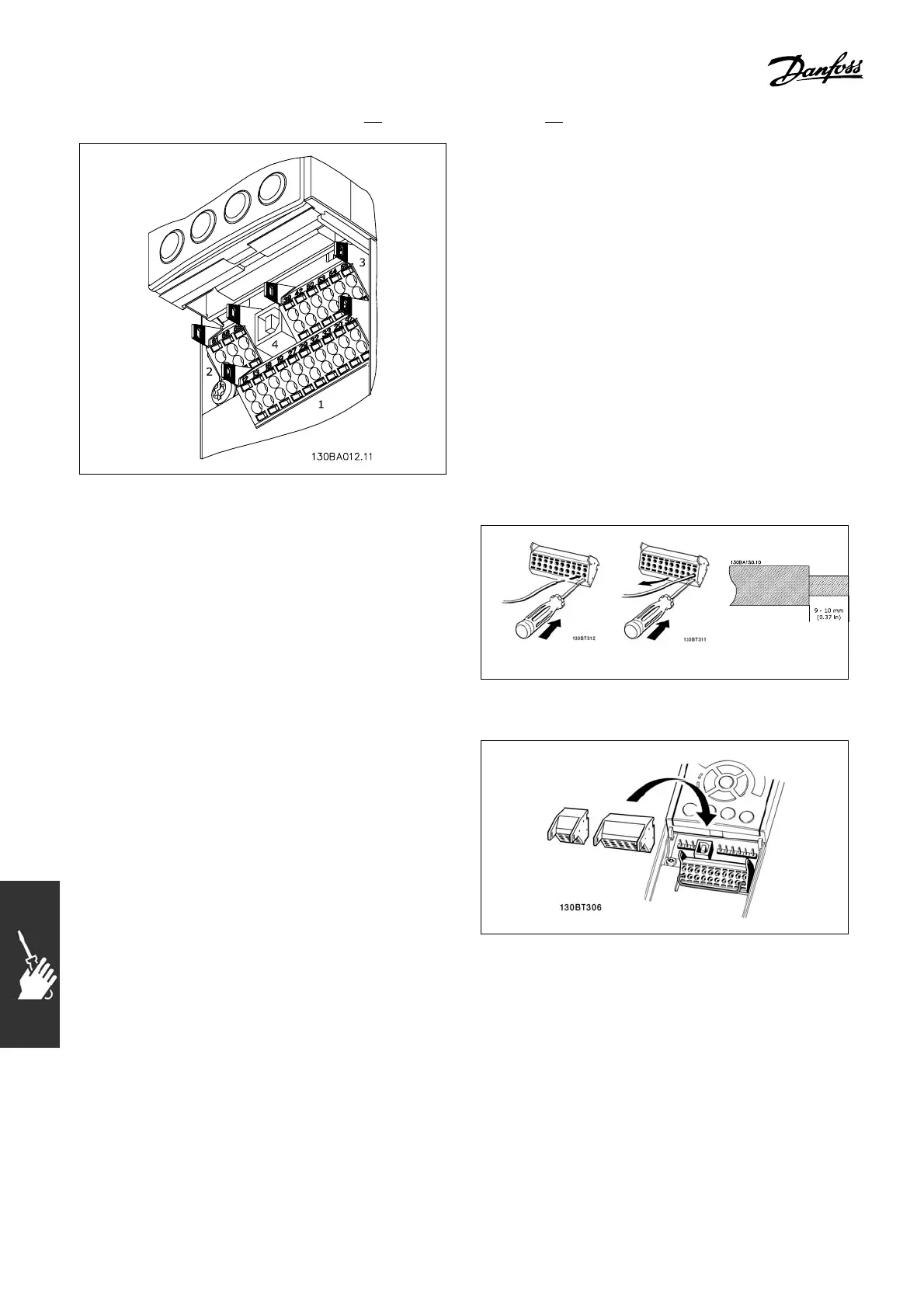

Electrical Installation, Control Terminals
To mount the cable to the terminal:
1. Strip isolation of 0.34-0.39 in [9-10 mm]
2. Insert a screwdriver in the square hole
.
3. Insert the cable in the adjacent circular h ole.
4. Remove the screwdriver. The cable is now
mounted to the terminal.
To remove the cable from the term inal:
1. Insert a screwdriver in the square hole.
2. Pull out the cable.
1. 2.
3.
Assembling IP 5 5 / NEMA TYPE 12 (A5 housing )
with line supply d isconnector
106
MG.33.B6.22 - VLT is a registered Danfoss trademark
