Danfoss FC 300 Design Guide

FC 300 Design Guide

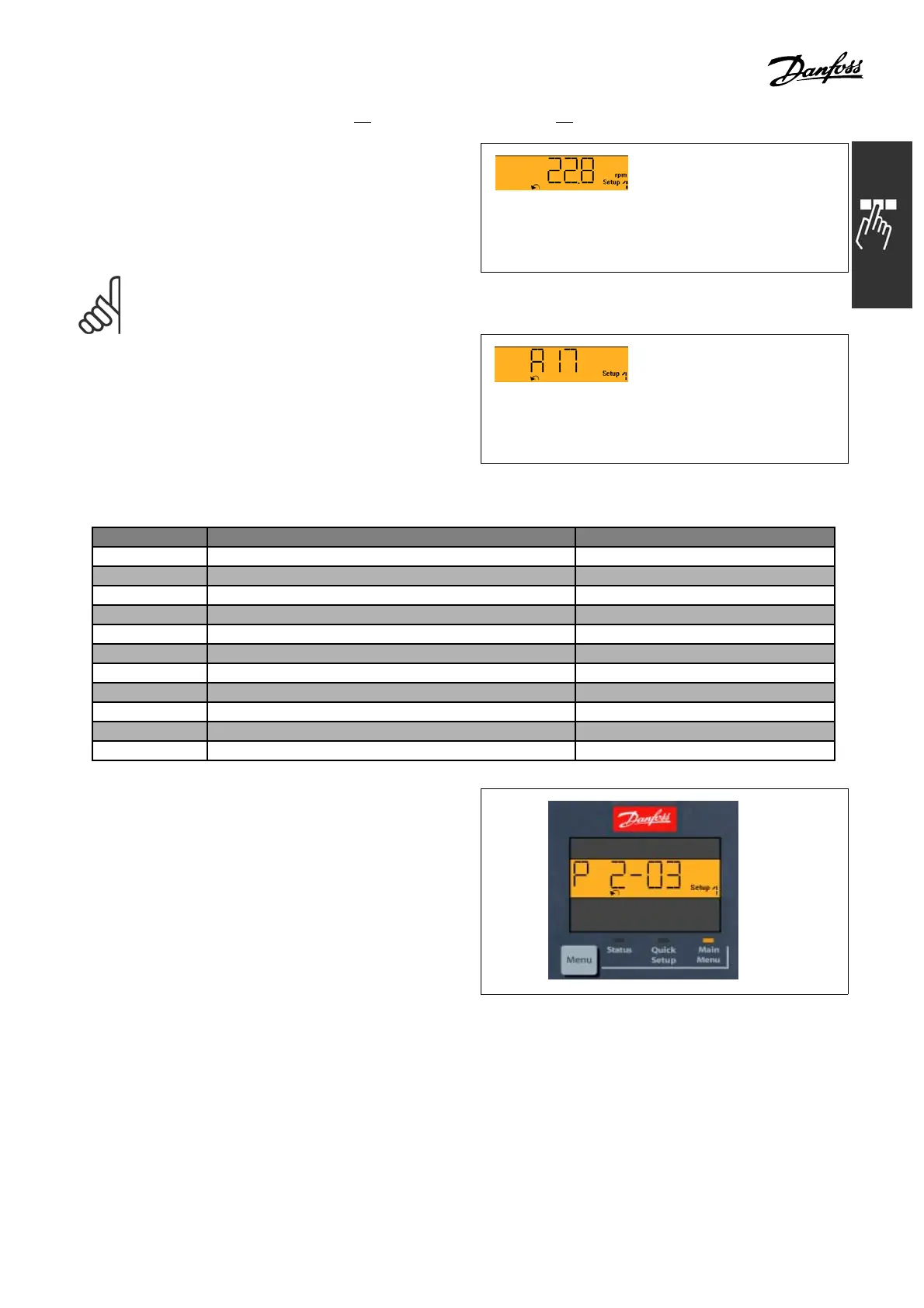

How to Program
Status Mode :Displays the status of the adjustable
frequency drive o r motor.
If an alarm occurs, the NLCP automatically
switches to status mod e.
A number of alarms can be displayed.
NOTE
Parameter c opy is not possible w ith LCP
101 numerical local control panel.
130BP077.10
130BP078.10
Par. No. Parameter Description Unit
1-20 Motor Power kW
1-22 Motor Voltage V
1-23 Motor Frequency Hz
1-24 Motor Current A
5-12 Terminal 27 Digital Input [0] No function
3-02 Minimum Reference rpm
3-03 Maximum Reference rpm
3-41 Ramp 1 Ramp-up Time sec
3-42 Ramp 1 Ramp-down Time sec
3-13 Reference Site
1-29 Automatic Motor Adaptation, AMA [1] Enable complete AMA
Main Menu is used for programming all parameters.
The para
meter values ca n be changed using the
up/down arrows when the value is flashing.
Selectthemainmenubypressingthe
[Menu
]keyseveraltimes.
Select the parameter group [xx-__] and press [OK].
Select the parameter [__-xx] and press [ O K].
If the pa
rameter is an array parameter, select
the array number and press [OK].
Select the desired data value and press [OK].
[Back] for stepping backwards.
Arrow [∧
][∨] keys are used for navigating
between commands and within parameters.
130BP079.10
" Local Control Keys
Keys for local control are found at the bottom
of the control panel.
147
MG.33.B6.22 - VLT is a registered Danfoss trademark
