How to Program
" How to Program on the Numerical
Local Control Panel
The following instructions are valid for the
Numerical LCP (LCP 101).

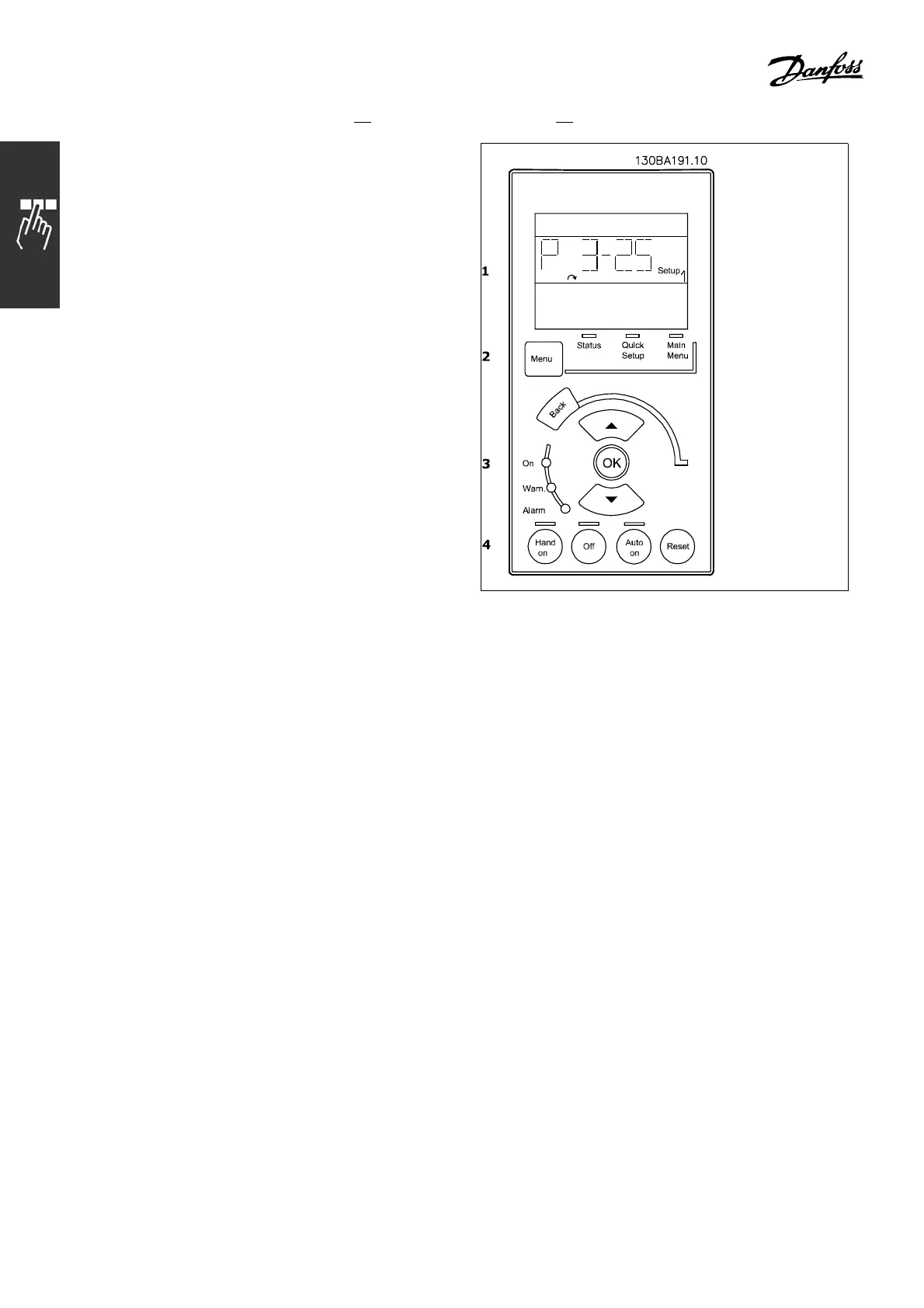

The control panel is divided into four
functional groups:
1. Numerical display.
2. Menu keys and LEDs - changing parameters
and switching between display functions.
3. Navigation keys and LEDs.
4. Operation keys and LEDs.
Display line:
Status line: Status messages displaying
icons and numeric value.
LEDs:
• Green LED/On: Indicates if control section is on.
• Yellow LED/Wrn.: Indicates a warning.
• Flashing red LED/Alarm: Indicates a n alarm.
LCP keys
[Menu] Select one of the following mode s:
• Status
• Quick Setup
• Main Menu
146
