FC 300 Design Guide
Application Examples
" Closed Loop Drive System
A drive syst em consist usually of more elements as:
• Motor
• Add
(Gearbox)
(Mechanical B rake)
• FC 302 AutomationDrive
• Encoder as feedback system
• Brake resistor for dynamic braking
• Transmission
• Load

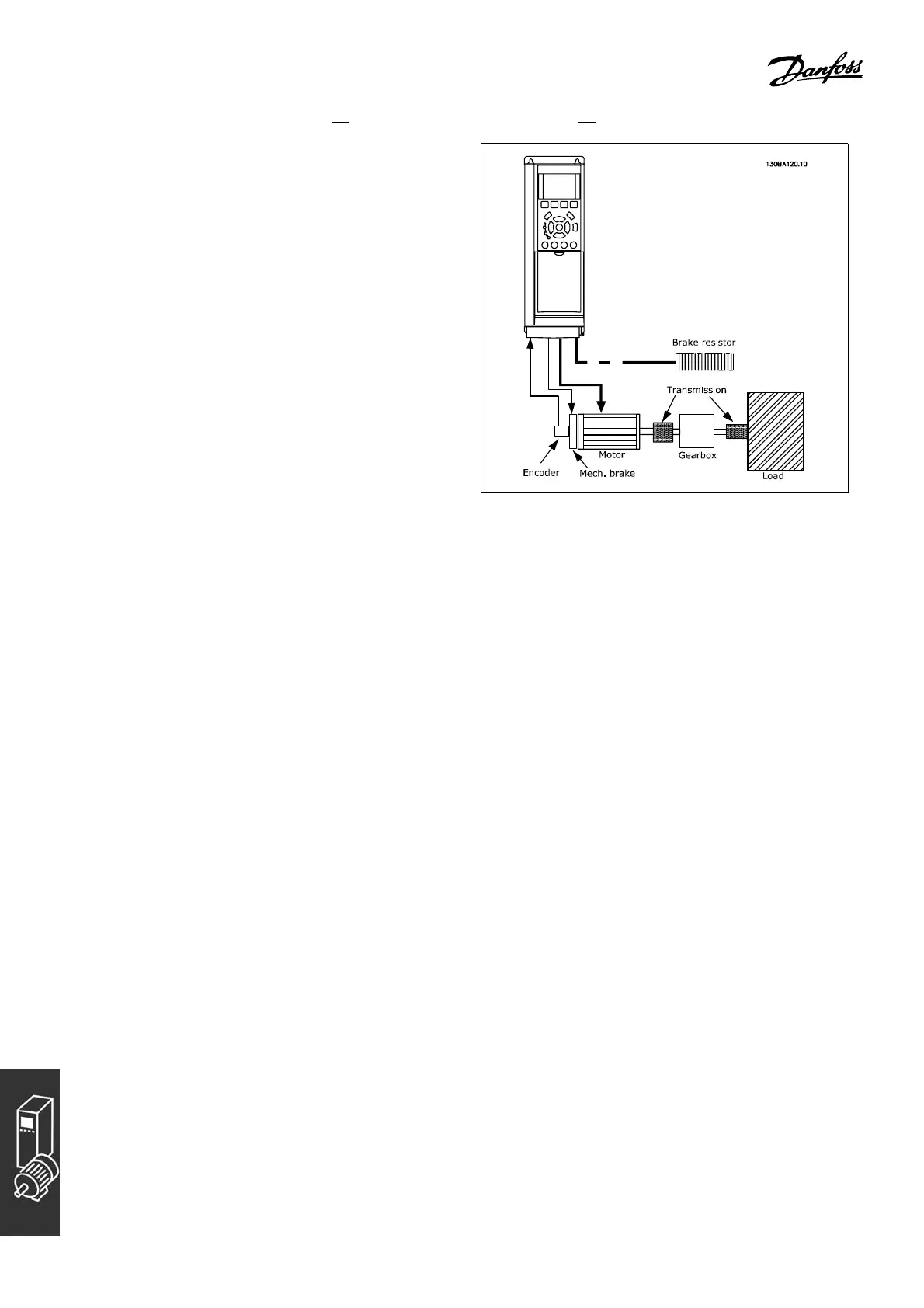

Basic Set-up for FC 302 Closed Loop Speed Control
Applications demanding mechanical brake control will usually need a brake resistor.
130
