Danfoss offers a wide range of options and accessories for VLT AutomationDrive FC 300 Series.

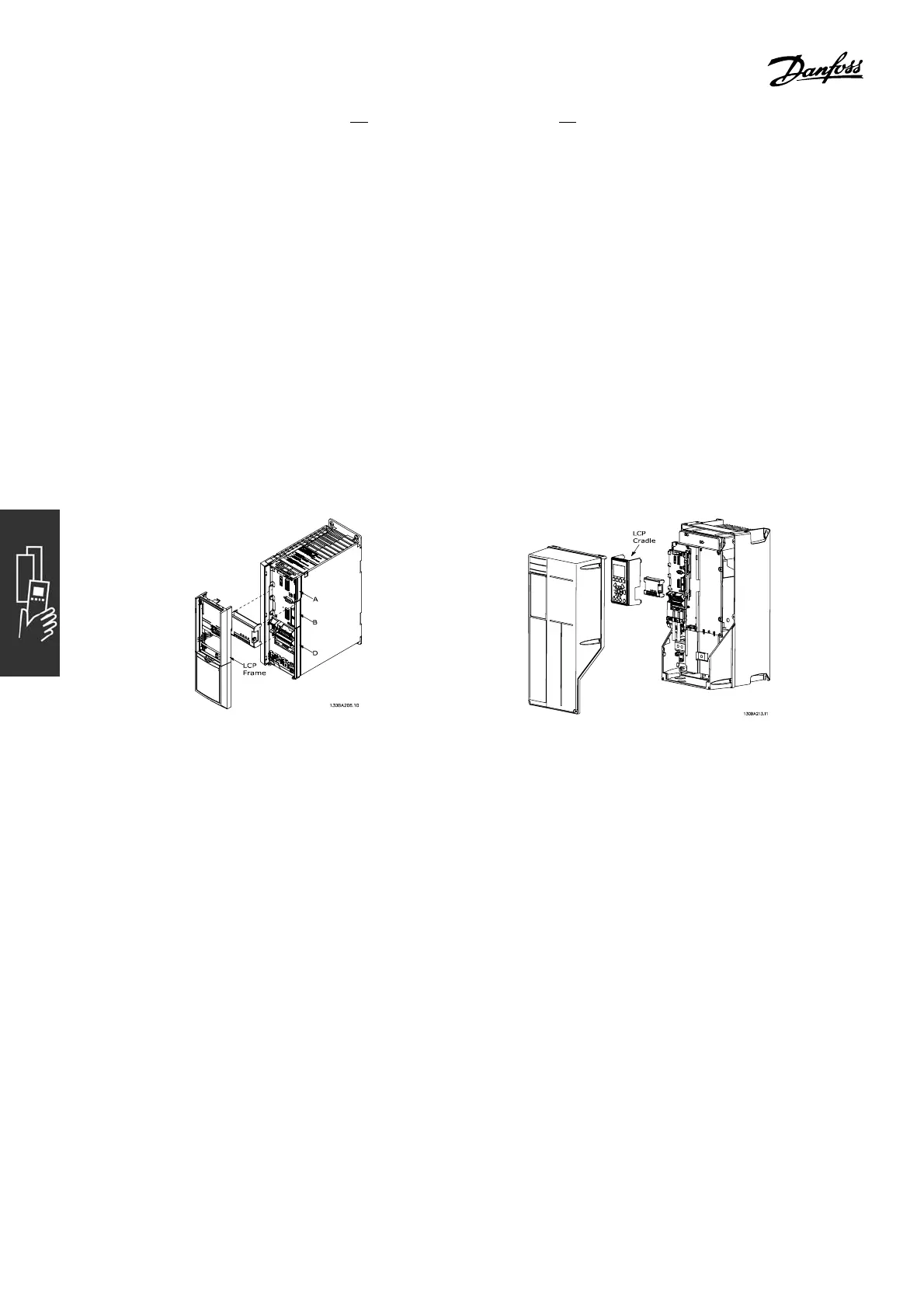

" Mounting Option Modules in Slot B
Thepowertotheadjustablefrequencydrivemustbedisconnected.
• Remove the LCP (Local Control Panel), the terminal cover, and the LCP frame
from the adjustable frequency drive.
• Insert the MCB10 x option card into slot B.
• Connect the control cables and f aste n the cables with the e nclosed cable strips.
* Remove the knock out in the extended LCP frame, so that the option w ill fit under the extended LCP frame.
• Fit the extended LCP frame and terminal cover.
• Fit the LCP o r blind cover in the extended LCP frame.
• Connect power to the adjustable frequency d rive.
• Set up the input/output functions in the corresponding parameters, as me ntioned
in the section General Technical Da ta.
0.34-10HP[0.25-7.5kW]IP20 0.34-10HP[0.25-7.5kW]IP55
