Danfoss FC 300 Design Guide

FC 300 Design Guide
FC 300 Selection
Connec-
tor
Designa-
tion

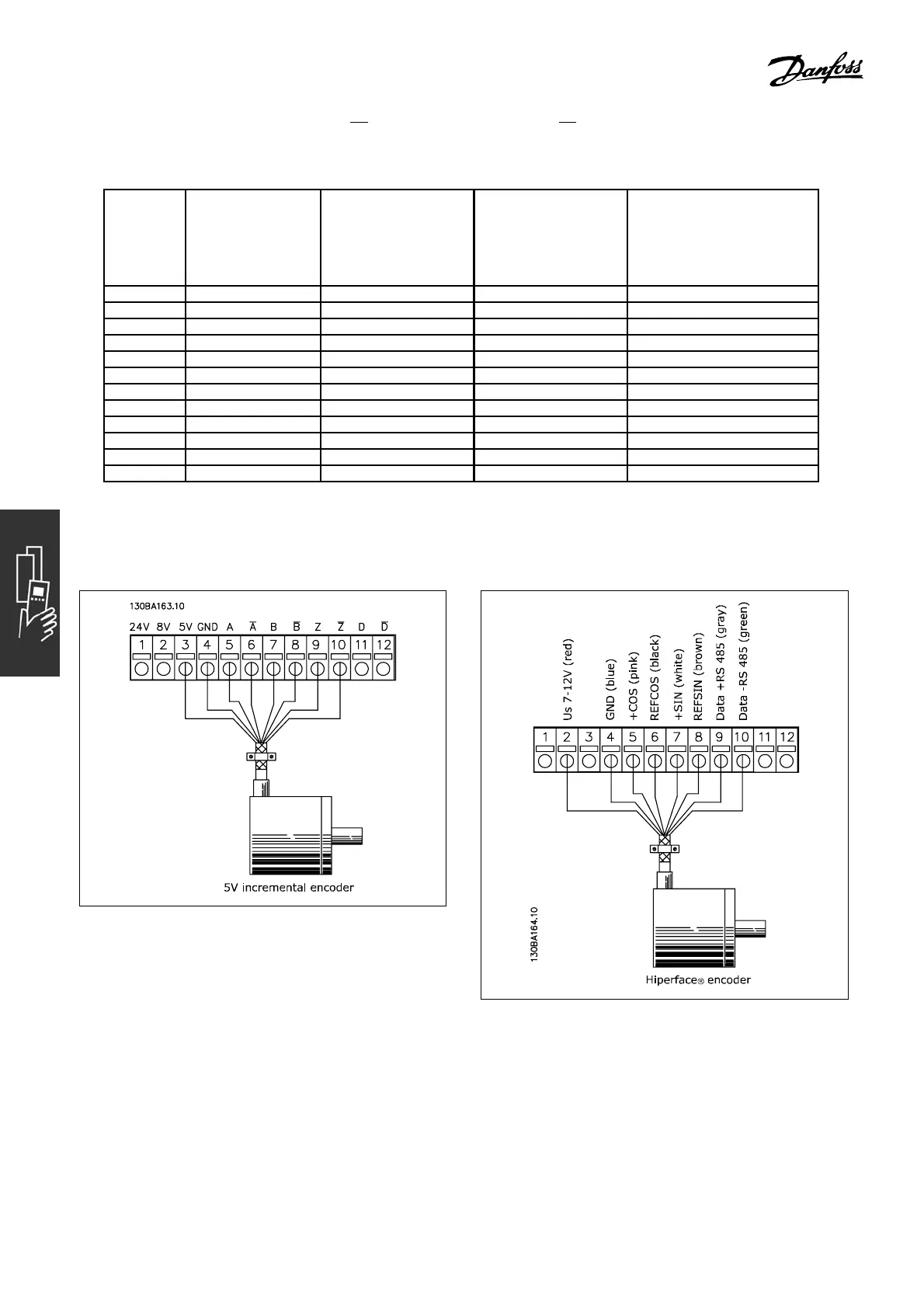

X31
Incremental
Encoder
SinCos Encoder
Hiperface
SinCos Encoder
EnDat
Description
1 NC 24 V Output
2 NC 8Vcc 8 V Output
3 5VCC 5Vcc 5 V Output
4 GND GND GND
5 A input +COS +COS A input
6 Ainvinput REFCOS REFCOS Ainvinput
7 B input +SIN +SIN B input
8 Binvinput REFSIN REFSIN Binvinput
9 Z input +Data RS485 Clock out Z input OR +Data RS485
10 Zinvinput -Data RS485 Clock in Z input OR -Data RS485
11 NC NC Data+ Future use
12 NC NC Data- Future use
Max. 5V on X31.5-12
76
MG.33.B6.22 - VLT is a registered Danfoss trademark
