2.

3.
RUN
READY
ALARM
I/O
Motor Current
Motor Speed
0.02A
-317rpm
e30bg690.10

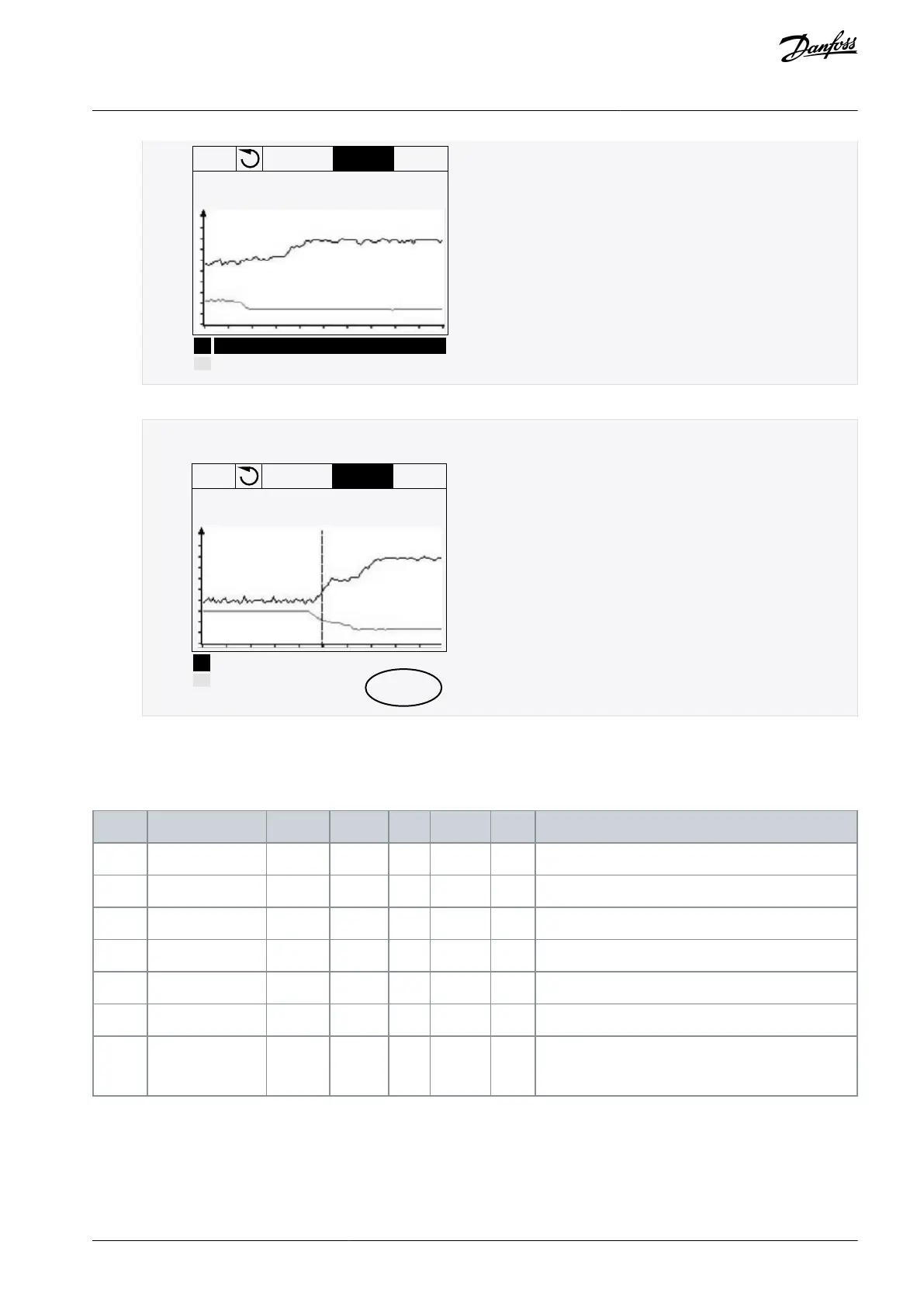

Push [OK] at the target point of the curve.
A vertical line comes into view on the display. The values at the bottom of the display agree to the location of the
line.
RUN
READY
ALARM
I/O
Motor Current
Motor Speed
0.01A
-252rpm
e30bg691.10
To move the line to see the values of some other location, use the arrow buttons Left and Right.
5.3.4 Trend Curve Parameters
Table 13: The Trend Curve Parameters
Index
Parameter
Min
Max
Unit
Default
ID
Description
M2.2.1
View Trend curve
Go into this menu to monitor values in a curve form.
P2.2.2
Sampling interval
100
432000
ms
100
2368
P2.2.3
Channel 1 min
-214748
1000
-1000
2369
P2.2.4
Channel 1 max
-1000
214748
1000
2370
P2.2.5
Channel 2 min
-214748
1000
-1000
2371
P2.2.6
Channel 2 max
-1000
214748
1000
2372
P2.2.7
Autoscale
0
1
0
2373
0 = Disabled
1 = Enabled
5.4 Basic Monitoring
5.4.1 Uses of the Basic Monitoring
Only the standard I/O board statuses are available in the Monitor menu. For the statuses of all the I/O board signals as raw data, see
the I/O and Hardware menu.
AB298035655957en-000201 / DPD01083 | 77Danfoss A/S © 2023.08
Monitor Menu
VACON® 100 FLOW
Application Guide
