5.7.6.6 Cabinet Heater
Table 38: Auxiliary Function Option Codes
Character posi-
tion
Option
code
Description
23–24 A3 Cabinet heater
AB AC socket + cabinet light + cabinet heater
AE AC socket + cabinet light + extended I/O terminals + cabinet heater
AH AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AI AC socket + cabinet light + extended I/O terminals + cabinet heater + insulation monitor
AK AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insu-
lation monitor
AL AC socket + cabinet light + cabinet heater + motor heater control
AM AC socket + cabinet light + cabinet heater + insulation monitor
AN AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AP Extended I/O terminals + cabinet heater
AS Extended I/O terminals + cabinet heater + motor heater control
AT Extended I/O terminals + cabinet heater + insulation monitor
AU Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
AW Cabinet heater + motor heater control
AX Cabinet heater + insulation monitor
AY Cabinet heater + motor heater control + insulation monitor
The cabinet heater option increases the inside temperature of the cabinet above the ambient temperature, preventing condensation
in the cabinet. Each cabinet has 1 cabinet heater. The heater element is self regulating. The external supply is connected to terminal -
XD1.1. When the drive is not in run state, the control relay +QAM changes the supply to the output terminals (-XD4). When the drive is
in run state, the control relay disconnects the supply to the cabinet heater. The function is disabled when MCB –FCE is open.

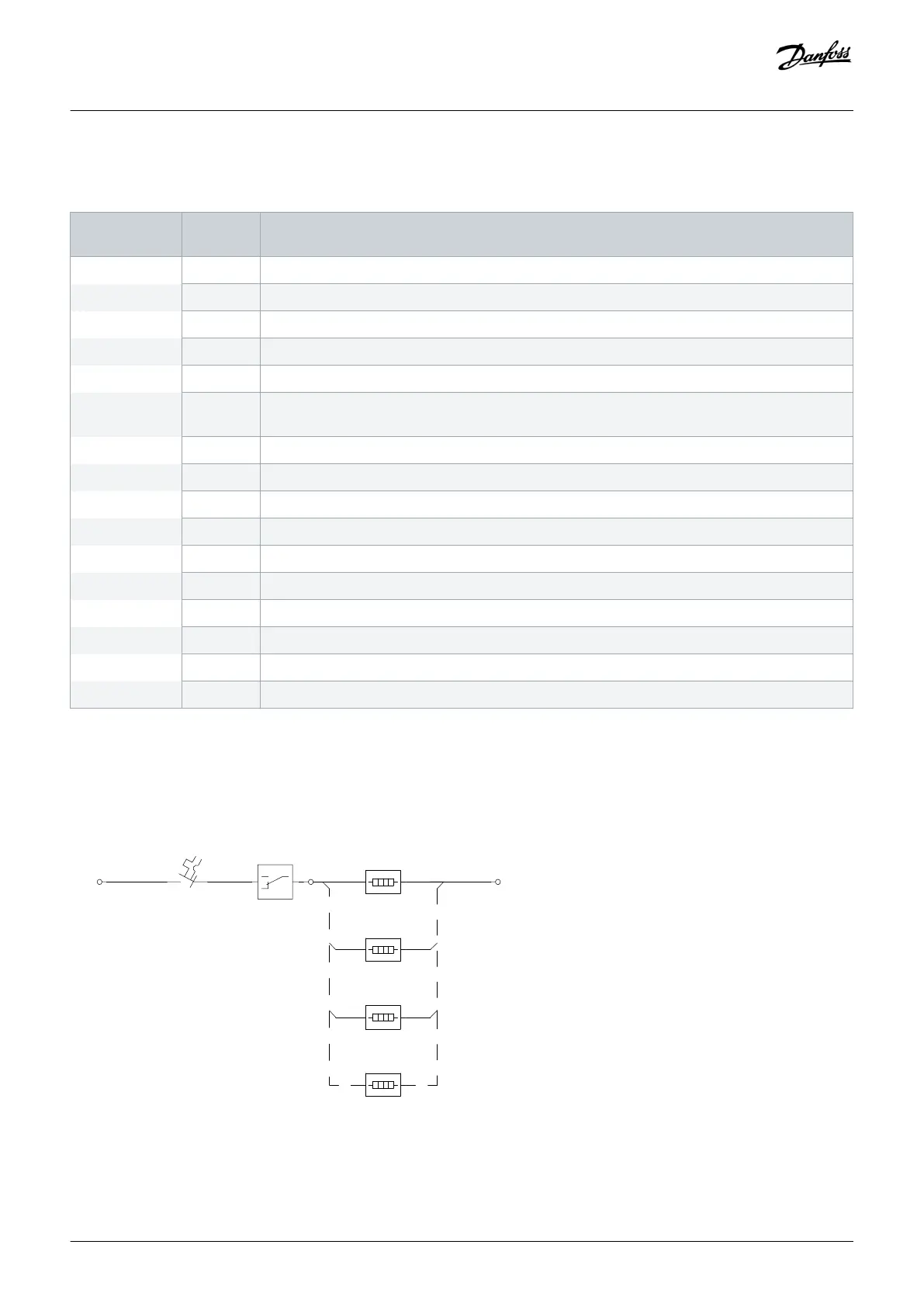

Illustration 46: Cabinet Heater Terminals
Electrical Installation
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882
76 | Danfoss A/S © 2018.10
