2. Remove the four (M2x3) screws that secure the express-card reader board to the express-card reader bracket.
3. Lift and remove the express-card reader bracket from the computer chassis.
Installing the express-card reader
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the express-card reader and provides a visual representation of the installation
procedure.

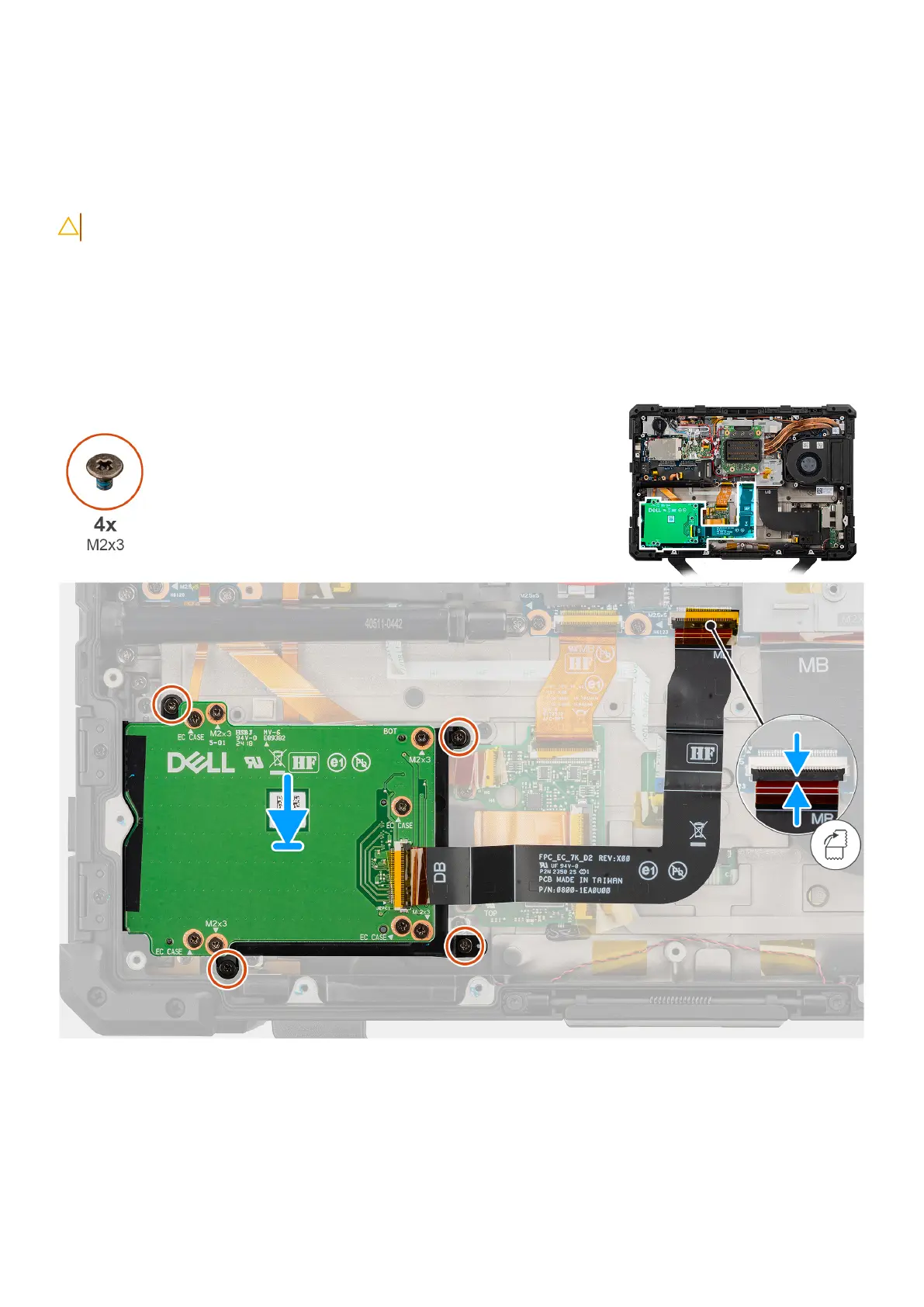

Figure 77. Installing the express-card reader
Steps
1. Align the express-card reader bracket with the screw holes on the computer chassis.
2. Replace the four (M2x3) screws that secure the express-card reader bracket to the computer chassis.
3. Connect the express-card reader flat-printed cable to its connectors on the system board.
114
Removing and installing Field Replaceable Units (FRUs)
