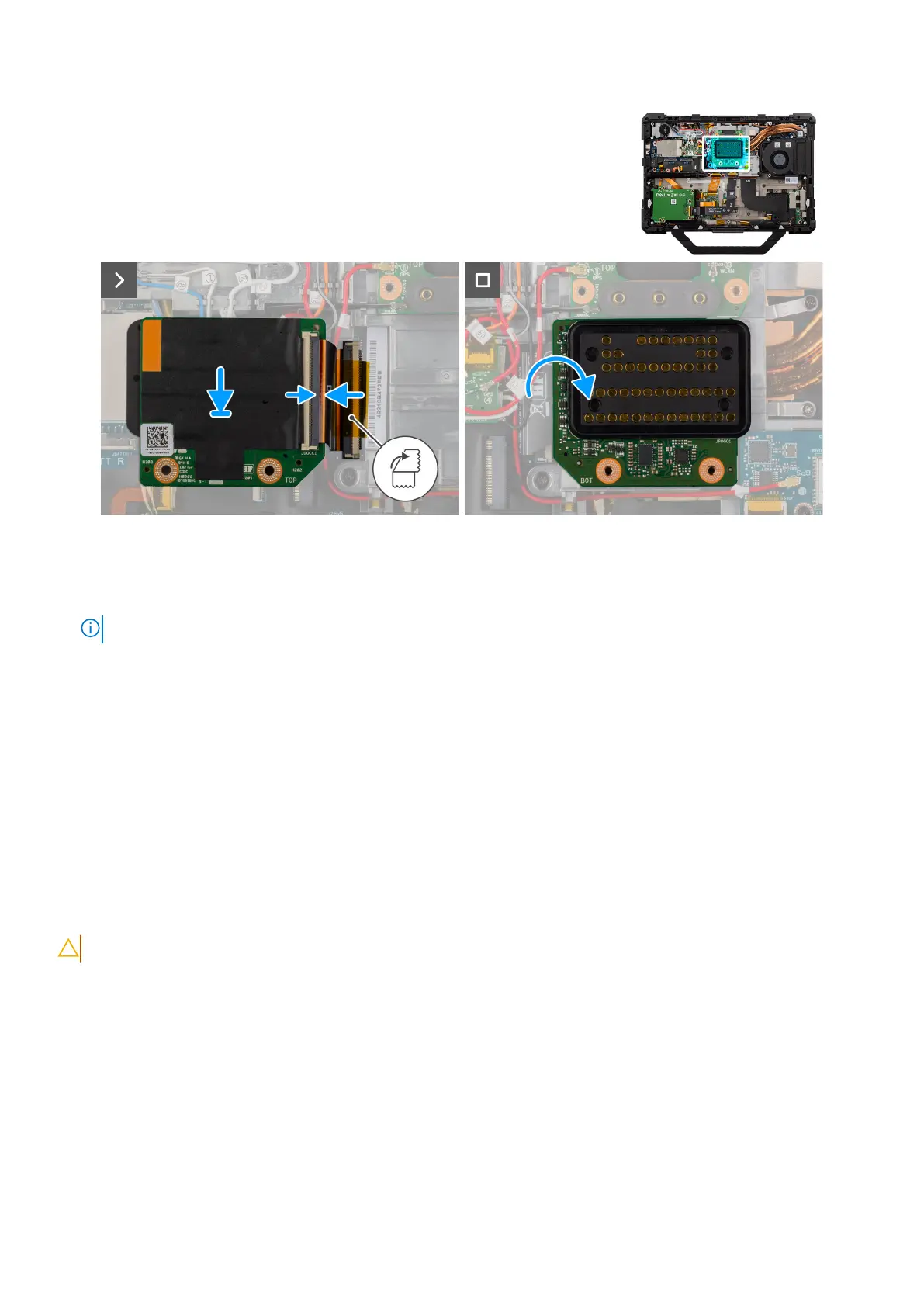

Figure 83. Installing the dock I/O-module
Steps
1. Place the dock I/O-module and connect the dock I/O flexible printed cable to the system board.
NOTE: Adhere the dock I/O flexible printed cable with kapton tapes to the connector.
2. Flip the dock I/O-module.
Next steps
1. Install the base cover.
2. Install the solid state drive carrier.
3. Install the batteries.
4. Follow the procedure in after working inside your computer.
Dock I/O-bracket
Removing the dock I/O-bracket
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the batteries.
3. Remove the keyboard (rubberized) or keyboard (standard).
4. Remove the solid state drive carrier.
5. Remove the base cover.
6. Remove the GPS board.
7. Remove the rear I/O-board.
8. Remove the RF switch board.
9. Remove the WLAN card.
120
Removing and installing Field Replaceable Units (FRUs)
