Installing the smart-card reader
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the smart-card reader and provides a visual representation of the installation
procedure.

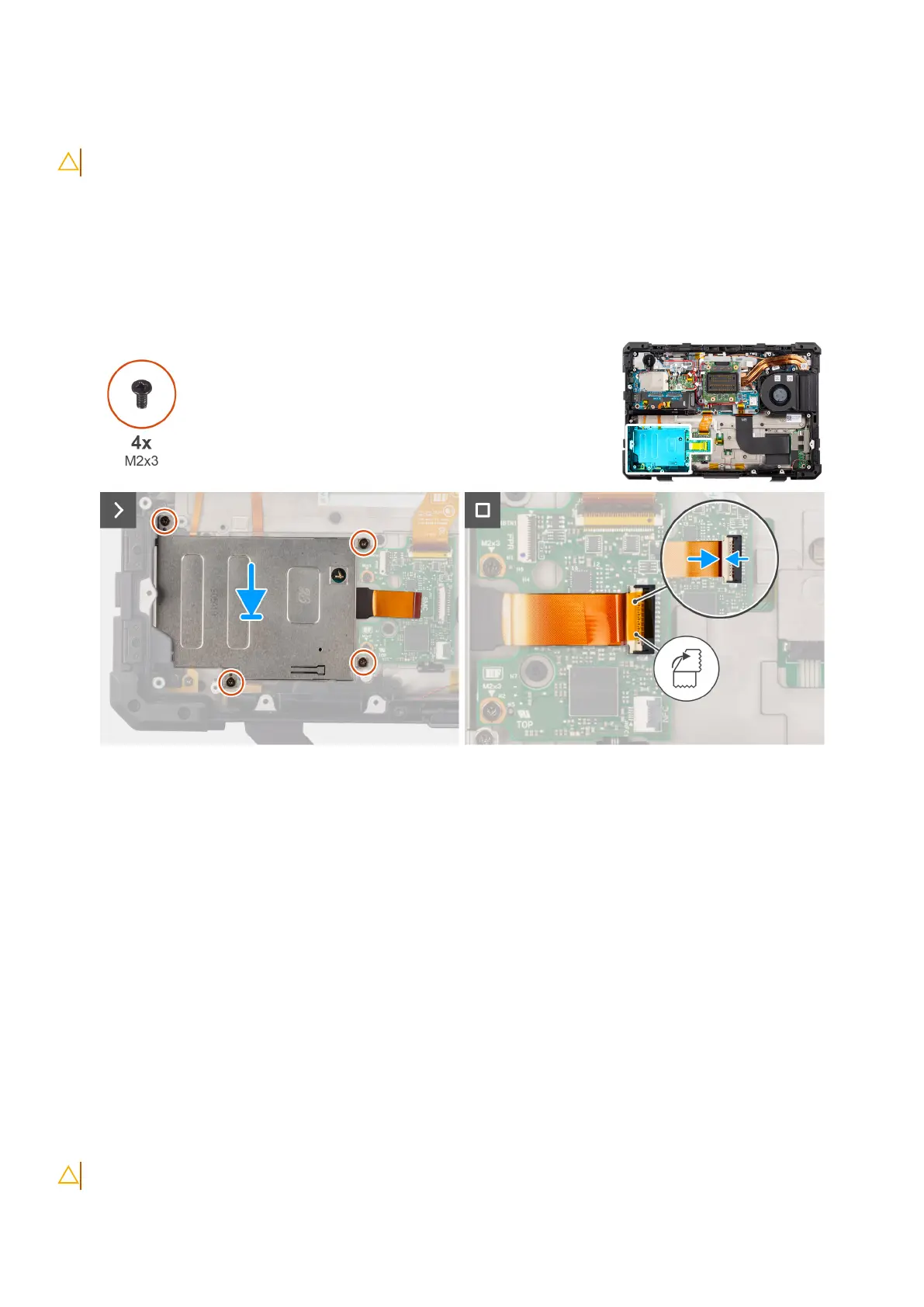

Figure 79. Installing the smart-card reader
Steps
1. Place the smart-card reader into the slot on the computer chassis.
2. Replace the four (M2x3) screws that secure the smart-card reader to the computer chassis.
3. Connect the smart-card reader flat-printed cable to the connector on the USH board.
Next steps
1. Install the express-card reader.
2. Install the base cover.
3. Install the solid state drive carrier.
4. Install the batteries.
5. Follow the procedure in after working inside your computer.
Smart-card and Express-card reader bracket
Removing the smart-card and express-card reader bracket
CAUTION: The information in this removal section is intended for authorized service technicians only.
116 Removing and installing Field Replaceable Units (FRUs)
