Fischer USB port (optional)
Removing the rear Fischer USB port
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the batteries.
3. Remove the solid state drive carrier.
4. Remove the base cover.
5. Remove the rear I/O-board.
About this task
The following image indicates the location of the rear Fischer USB port and provides a visual representation of the removal
procedure.

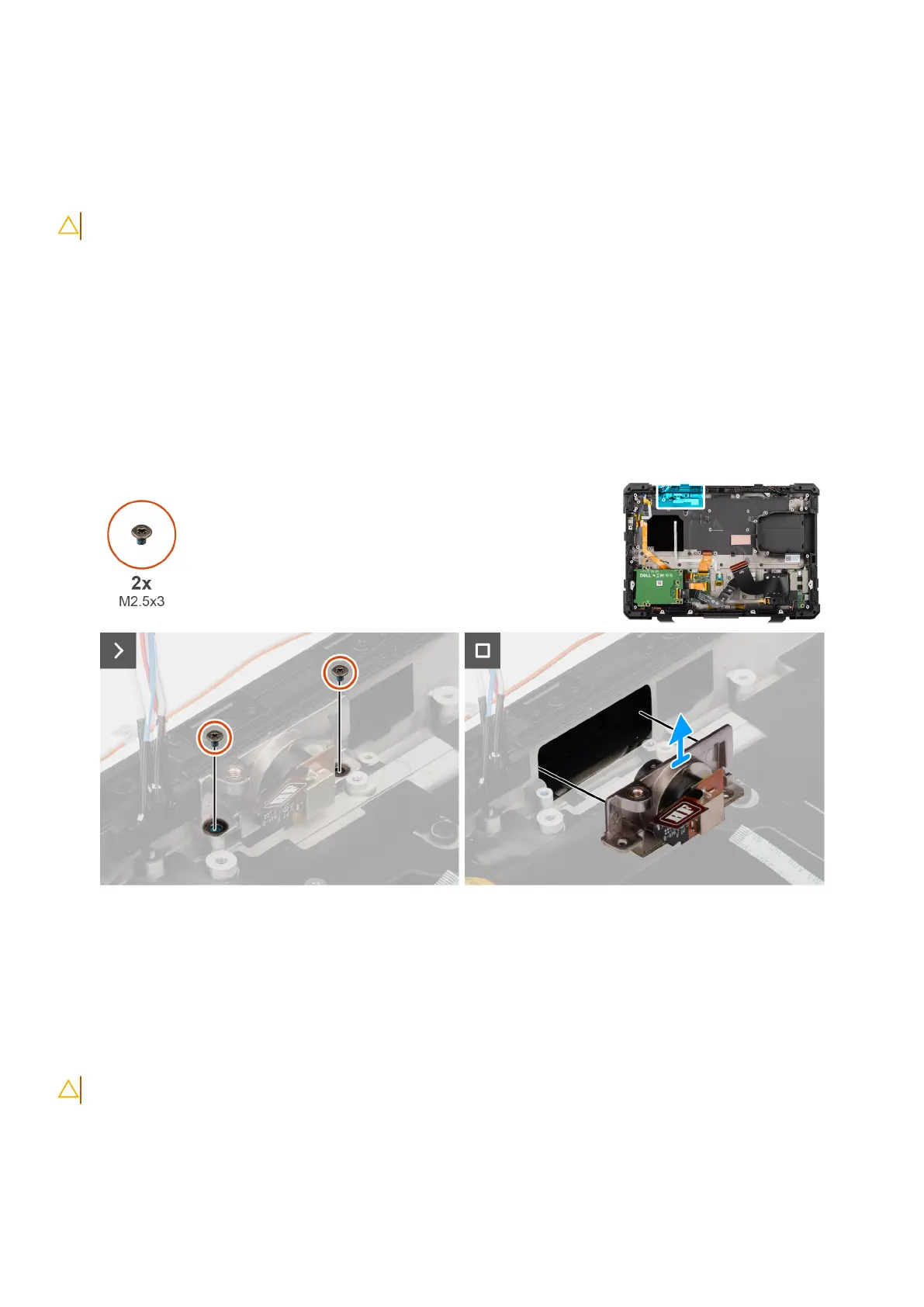

Figure 62. Removing the rear Fischer USB port
Steps
1. Remove the two (M2.5x3) screws that secure the rear Fischer USB port to the computer chassis.
2. Lift the Fischer USB port from the computer chassis.
Installing the rear Fischer USB port
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
96
Removing and installing Field Replaceable Units (FRUs)
