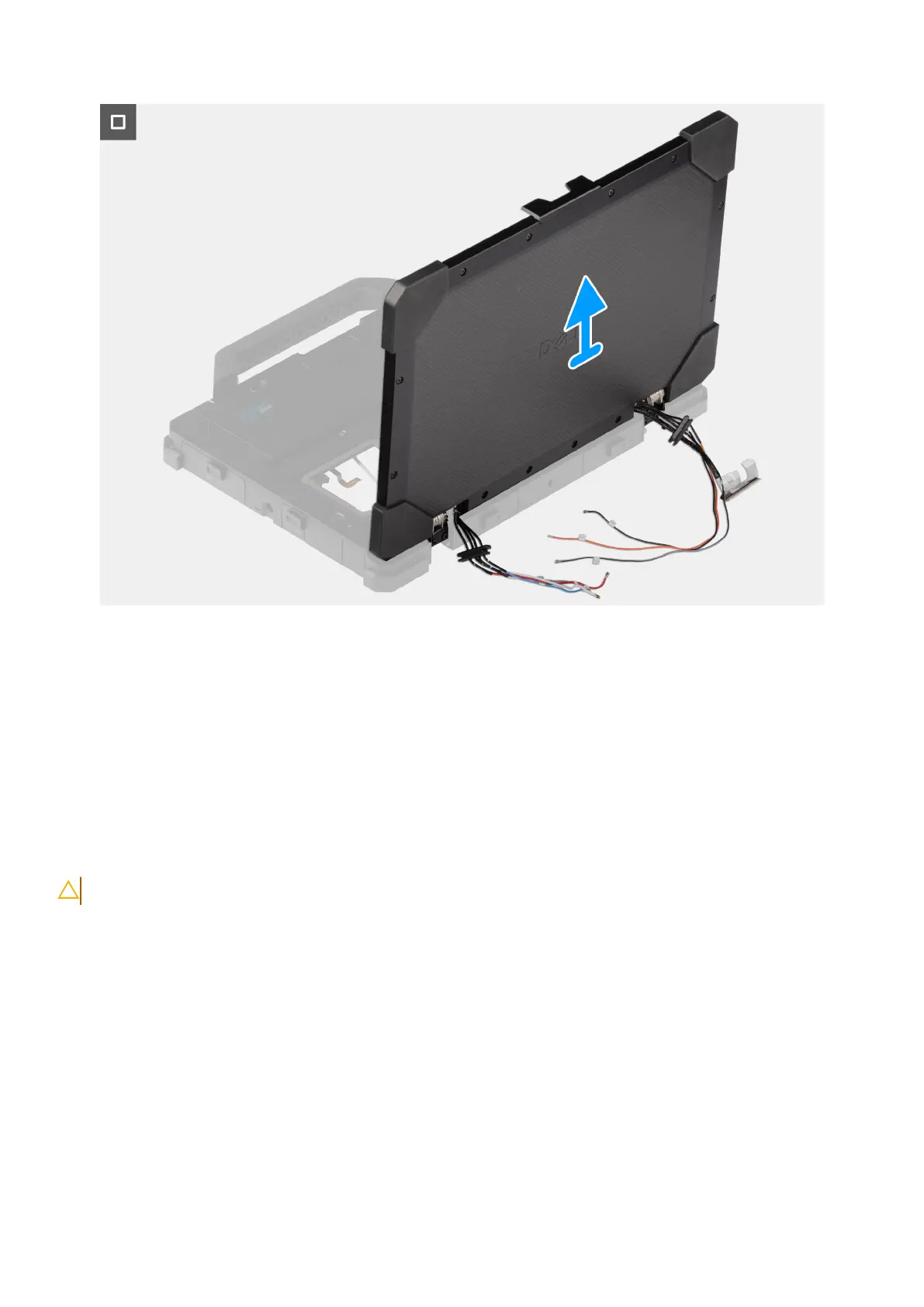

Figure 111. Removing the display assembly
Steps
1. Remove the two (M2.5x5) screws that secure the left/right hinge covers to the computer chassis.
2. Remove the left/right hinge covers from the computer chassis.
3. Remove the four (M3x6, T8) epoxy screws that secure the display assembly hinges to the computer chassis.
4. Pull the cable connections and remove the four (M3x6) epoxy screws that secure the display assembly to the computer
chassis.
5. Lift and remove the display assembly from the computer chassis.
Installing the display assembly
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the display assembly and provide a visual representation of the installation
procedure.
