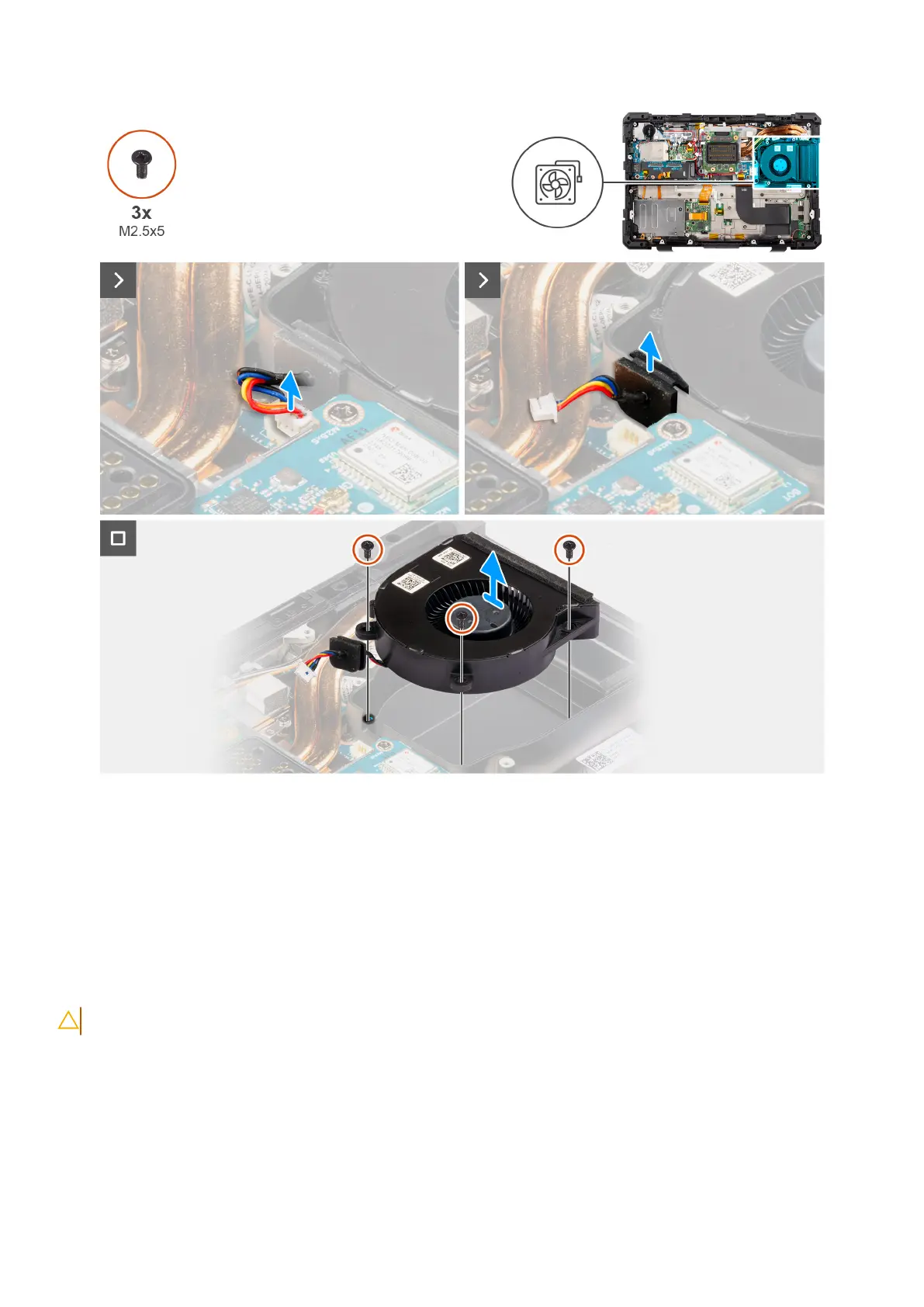

Figure 56. Removing the fan
Steps
1. Disconnect the fan cable from its connector on the system board.
2. Remove the fan cable connector clip from the chassis.
3. Remove the three (M2.5x5) screws that secure the fan to the computer chassis.
4. Lift the fan from the computer chassis.
Installing the fan
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the fan and provides a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
89
