3. Remove the solid state drive carrier.
4. Remove the base cover.
About this task

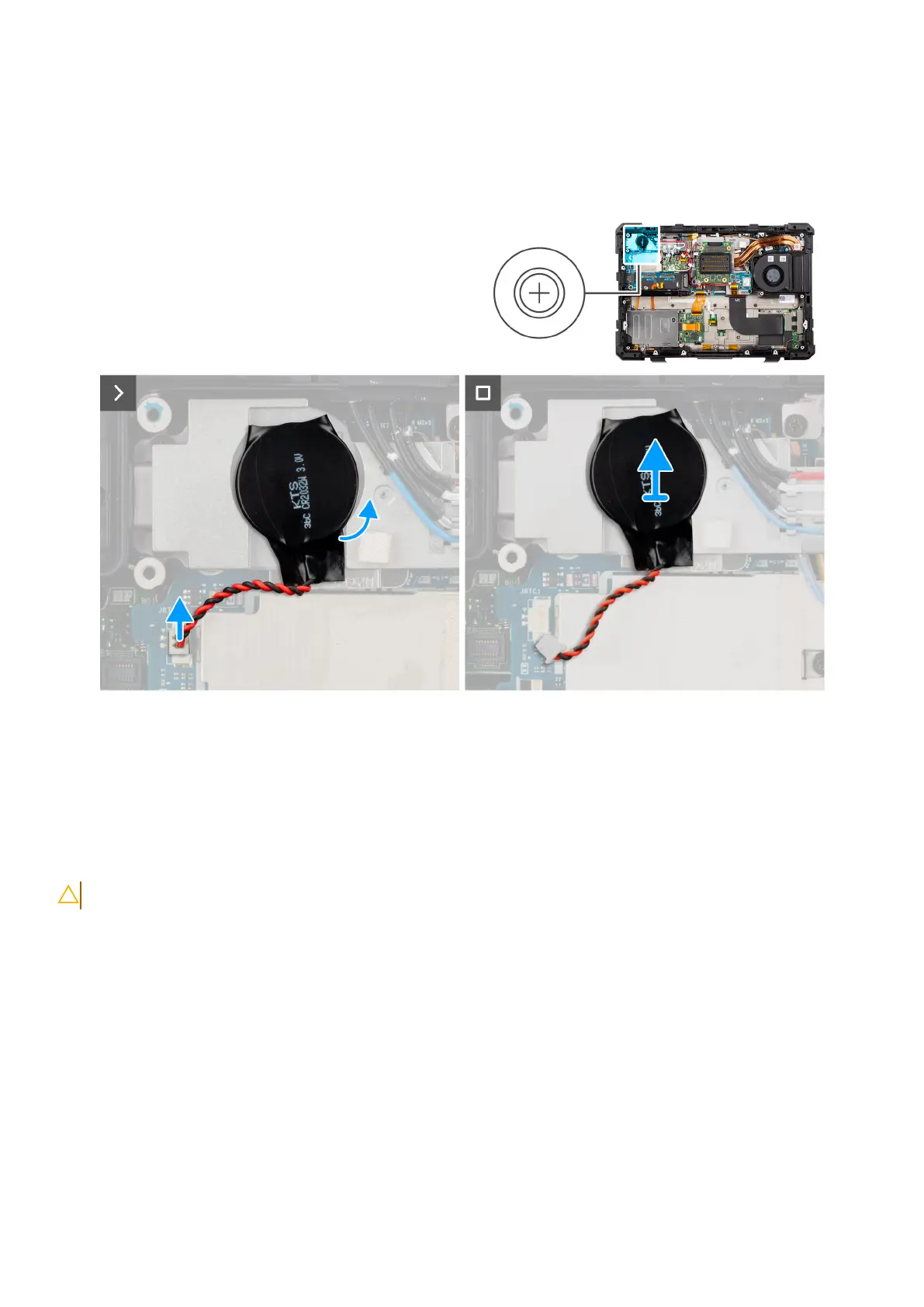

The following images indicate the location of the coin-cell battery and provide a visual representation of the removal procedure.
Figure 54. Removing the coin-cell battery
Steps
1. Disconnect the coin-cell battery cable from the system board.
2. Peel the coin-cell battery off the computer chassis.
Installing the coin-cell battery
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
87
