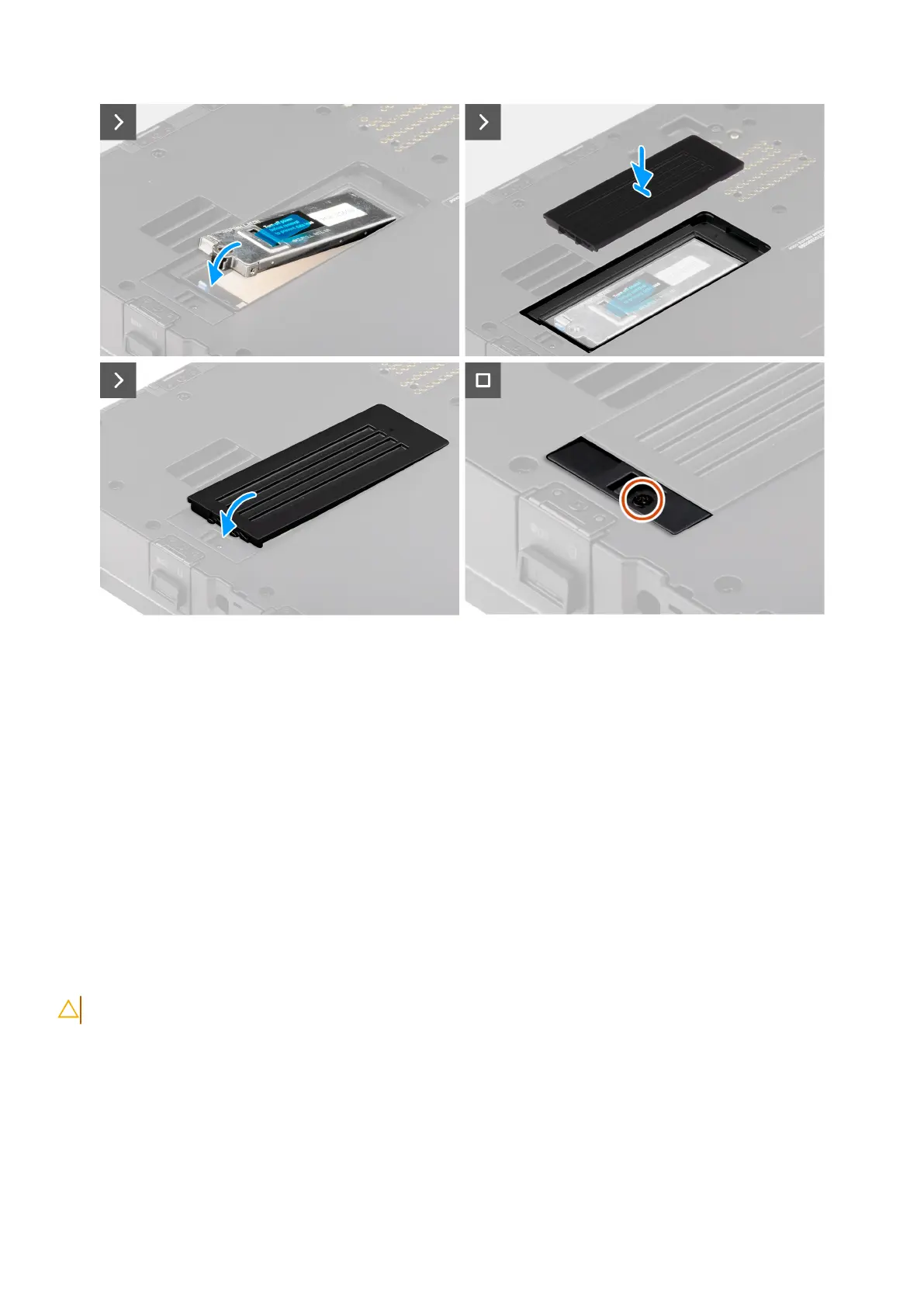

Figure 40. Installing the solid state drive carrier
Steps
1. Align the notch on the SSD carrier with the tab on the M.2 slot and slide the SSD carrier into the slot on the chassis.
2. Pull the carrier latch to lock the SSD carrier.
3. Place the SSD door on the SSD carrier.
4. Replace the (M2x3) screw on the SSD door latch cover.
Next steps
1. Install the batteries.
2. Follow the procedure in after working inside your computer.
M.2 solid state drive
Removing the M.2 2230 solid state drive from the carrier
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the solid state drive carrier.
About this task
The following image indicates the location of the solid state drive and provides a visual representation of the removal procedure.
74
Removing and installing Field Replaceable Units (FRUs)
