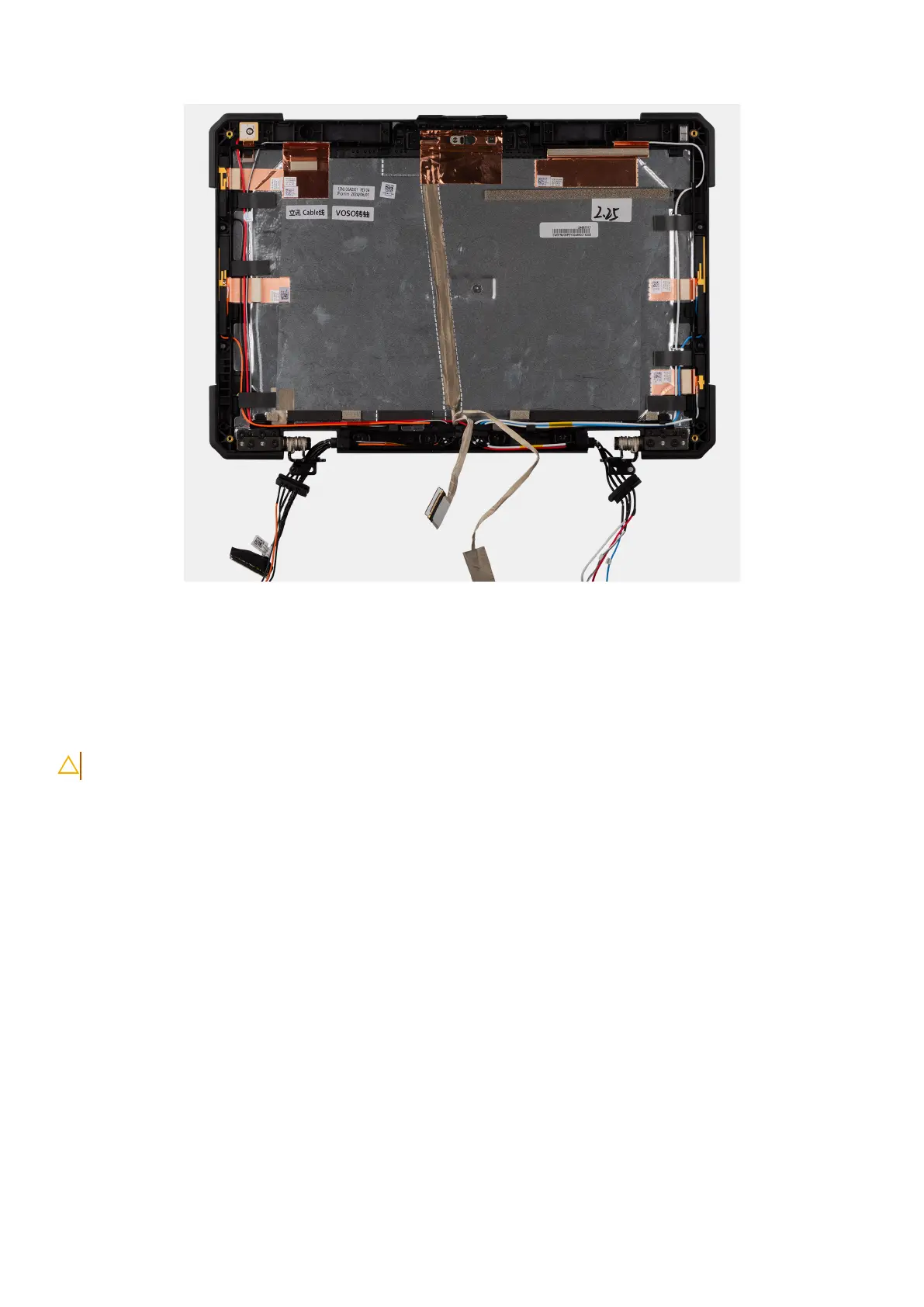

Figure 120. Removing the display back-cover assembly
Steps
After performing the preceding steps, you are left with the display back-cover assembly.
Installing the display back-cover assembly
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the display back-cover assembly and provides a visual representation of the
installation procedure.
158
Removing and installing Field Replaceable Units (FRUs)
