Dell Pro Rugged 13 - Installing the M.2 2230 Solid State Drive into the Carrier

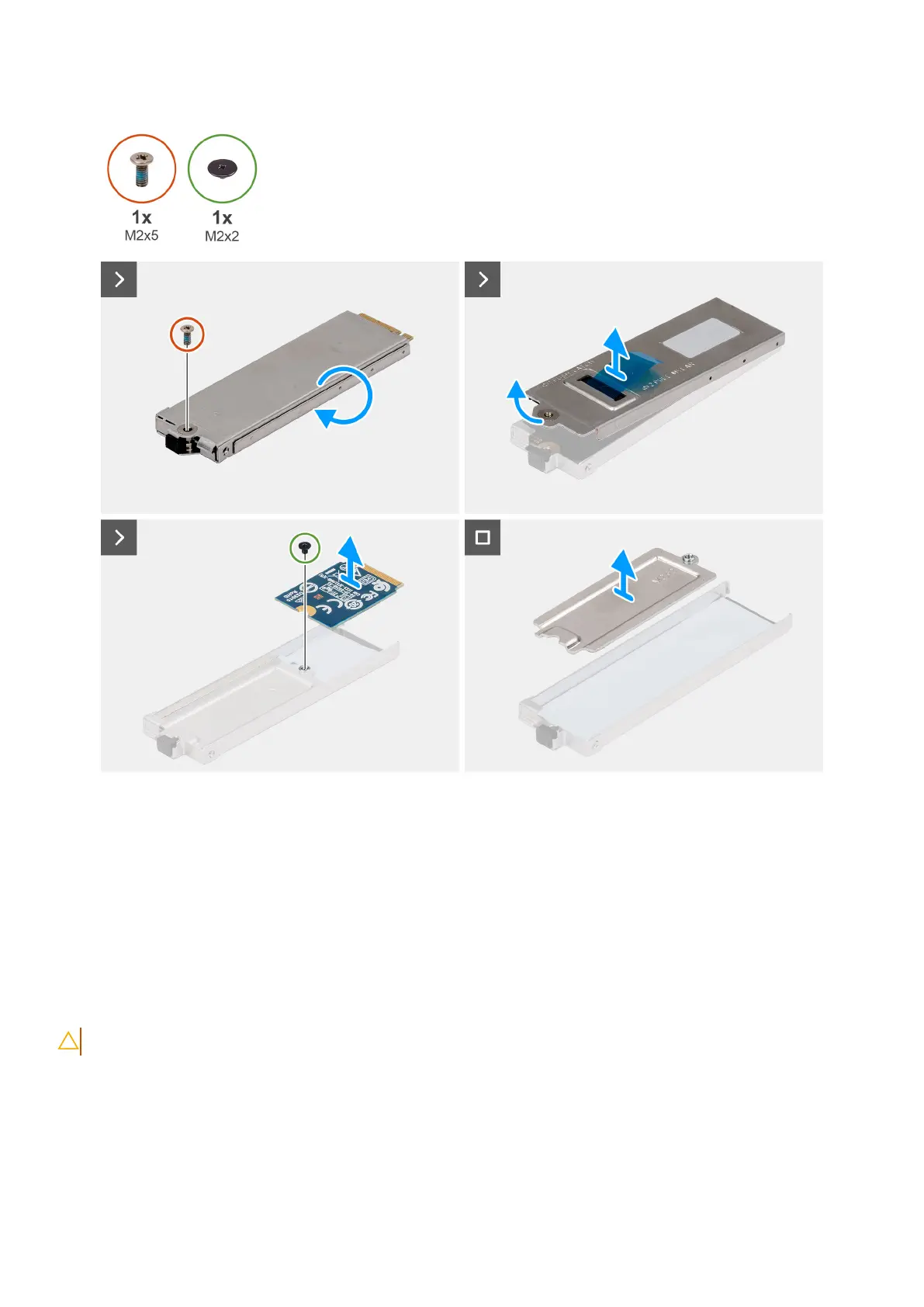

Figure 41. Removing the M.2 2230 solid state drive from the carrier
Steps
1. Flip the SSD carrier and remove the (M2x5) screw that secures the SSD carrier cover to the SSD carrier.
2. Flip the SSD carrier and pull the mylar tape to lift the SSD carrier cover.
3. Remove the (M2x2) screw that secures the M.2 2230 solid state drive to the SSD carrier.
4. Lift and remove the M.2 2230 solid state drive.
5. Lift and remove the SSD extender off the SSD carrier.
Installing the M.2 2230 solid state drive into the carrier
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
