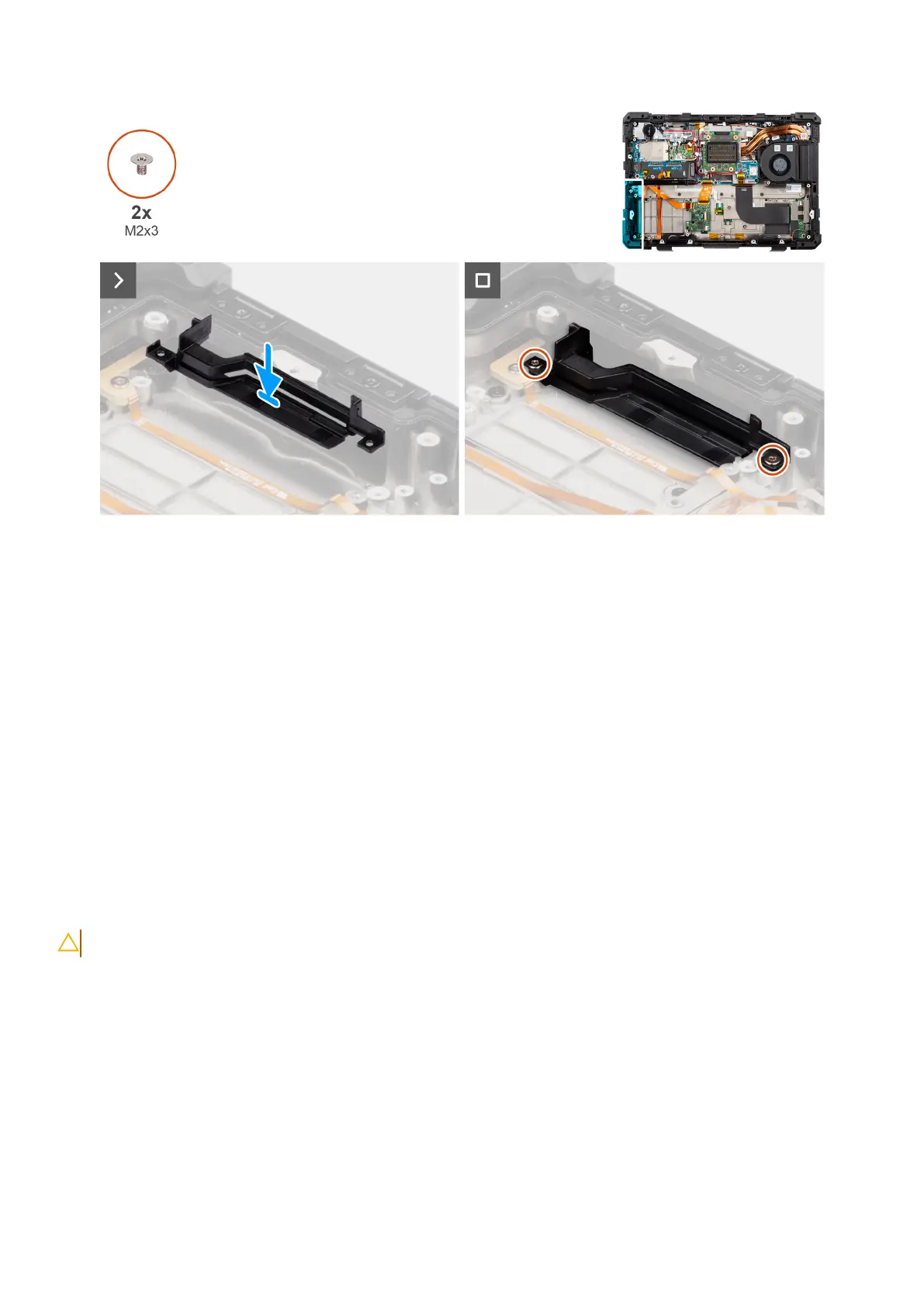

Figure 81. Installing the smart-card and express-card reader bracket
Steps
1. Align the screw holes on the smart-card and express-card reader bracket with the screw holes on the computer chassis.
2. Replace the two (M2x3) screws that secure the smart-card and express-card reader bracket to the computer chassis.
Next steps
1. Install the smart-card reader.
2. Install the express-card.
3. Install the base cover.
4. Install the solid state drive carrier.
5. Install the batteries.
6. Follow the procedure in after working inside your computer.
Dock I/O-module
Removing the dock I/O-module
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the batteries.
3. Remove the solid state drive carrier.
4. Remove the base cover.
About this task
The following image indicates the location of the dock I/O-module and provides a visual representation of the removal
procedure.
118
Removing and installing Field Replaceable Units (FRUs)
