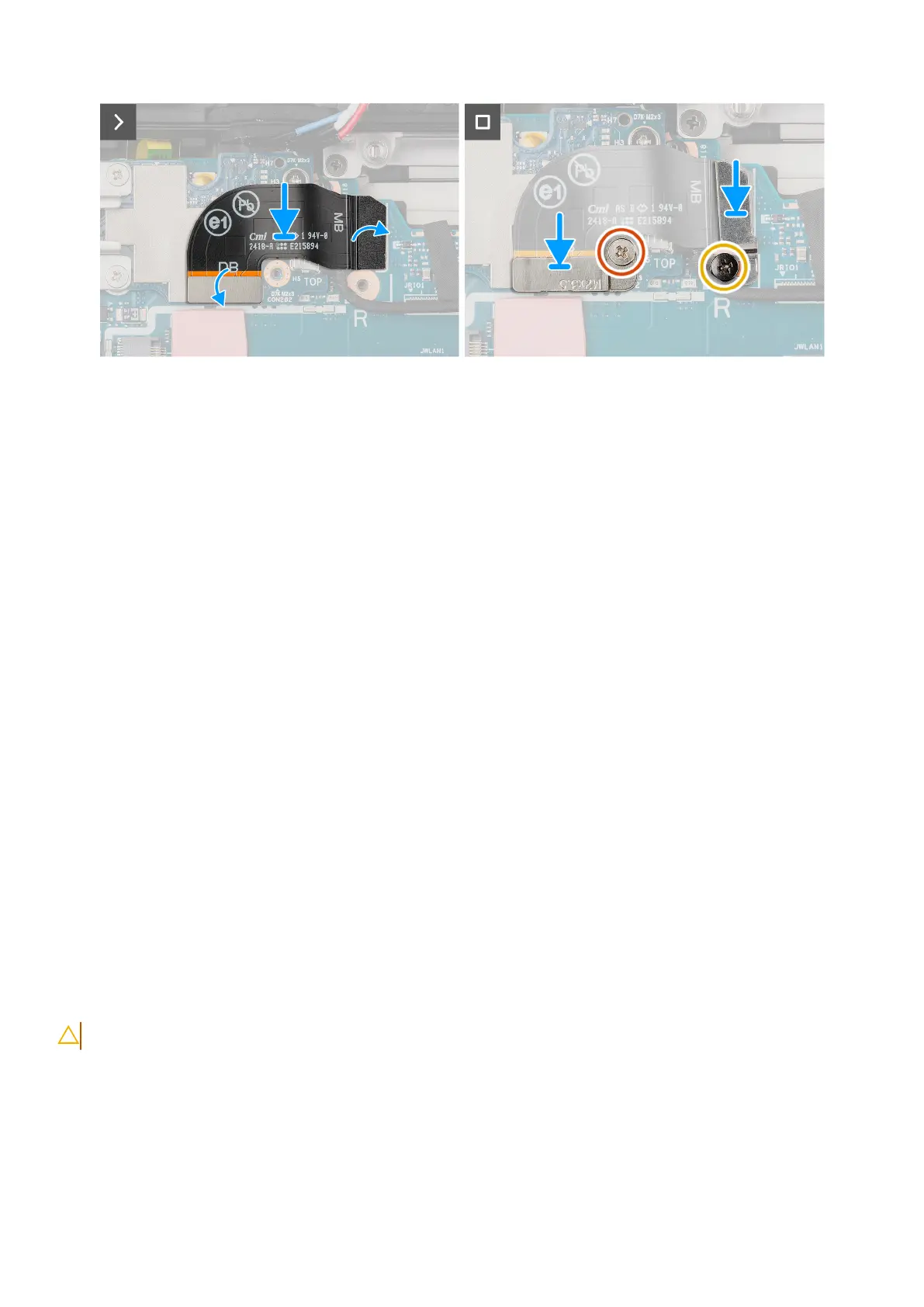

Figure 101. Installing the right Type-C board
Steps
1. Place the right Type-C board on the computer chassis and replace the (M2x3.5) screw to secure the right Type-C board to
the computer chassis.
2. Place the right Type-C port holder on the right Type-C board and replace the two (M2.5x5) and (M2x3.5) screws to secure
it.
3. Connect the right Type-C cable connector to its connector on the right Type-C board.
4. Connect the flat printed cable to its connector on the right Type-C board.
5. Place the flat printed cable holder and replace the (M2.5x5) and (M2x3.5) screw to secure it.
Next steps
1. Install the heat sink .
2. Install the fan.
3. Install the dock I/O-bracket.
4. Install the dock I/O-module.
5. Install the WWAN card.
6. Install the WLAN card.
7. Install the RF switch board.
8. Install the rear I/O-board.
9. Install the GPS board.
10. Install the base cover.
11. Install the keyboard (rubberized) or keyboard (standard).
12. Install the solid state drive carrier.
13. Install the batteries.
14. Follow the procedure in after working inside your computer.
Left Type-C board
Removing the left Type-C board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the batteries.
3. Remove the solid state drive carrier.
4. Remove the keyboard (rubberized) or keyboard (standard).
5. Remove the base cover.
