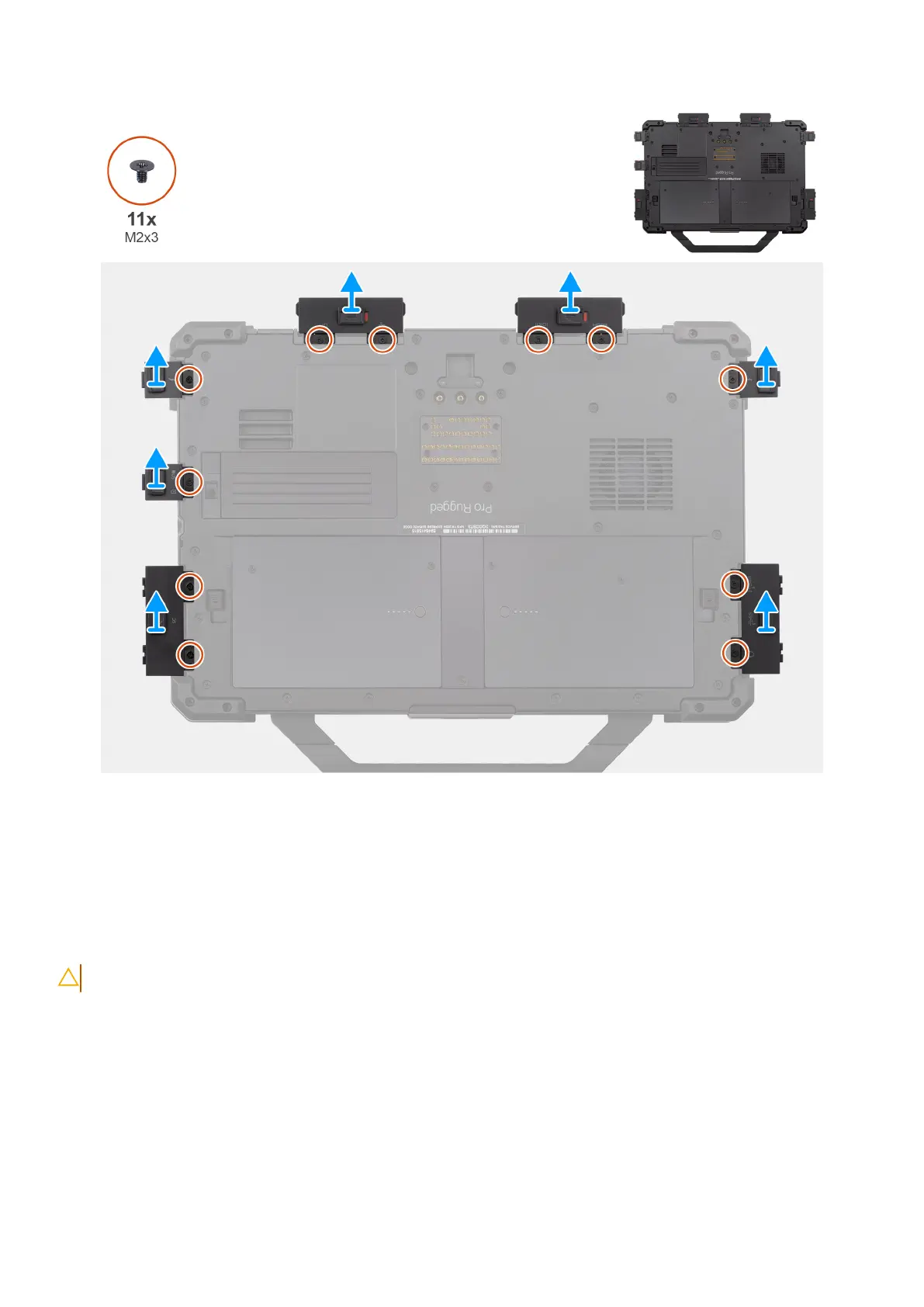

Figure 106. Removing the latch doors
Steps
1. Remove the 11 (M2x3) screws that secure the latch doors to the computer chassis.
2. Lift and remove the latch doors from the computer chassis.
Installing the latch doors
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the latch doors and provides a visual representation of the installation procedure.
