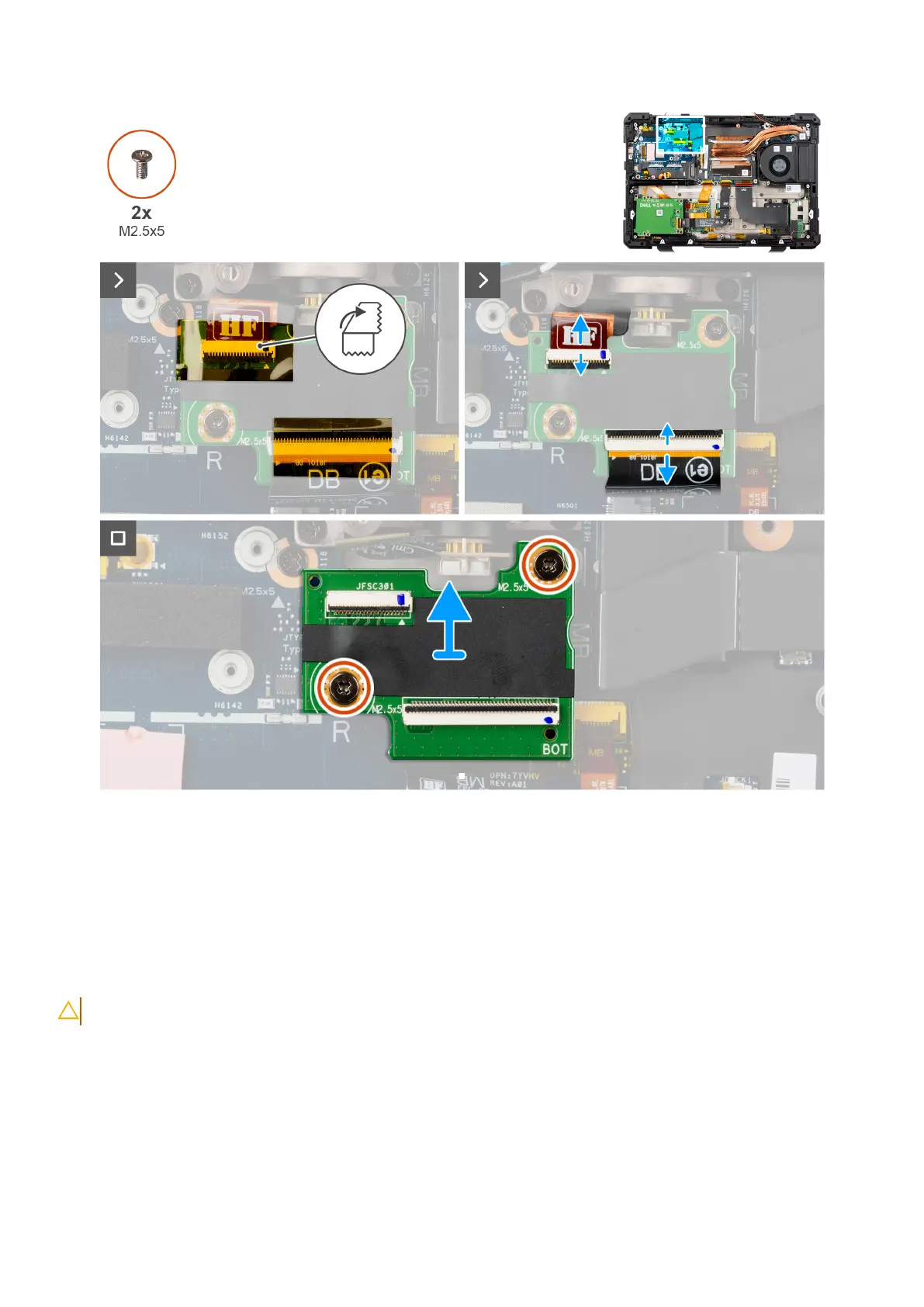

Figure 60. Removing the rear I/O-board
Steps
1. Peel the adhesive tape and disconnect the rear I/O flat printed cables.
2. Remove the two (M2.5x5) screws that secure the rear I/O-board to the system board and remove it from the computer
chassis.
Installing the rear I/O-board
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the rear I/O-board and provides a visual representation of the installation
procedure.
94
Removing and installing Field Replaceable Units (FRUs)
