Next steps
1. Install the base cover.
2. Install the solid state drive carrier.
3. Install the batteries.
4. Follow the procedure in after working inside your computer.
Smart-card reader
Removing the smart-card reader
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the solid state drive carrier.
3. Remove the batteries.
4. Remove the base cover.
5. Remove the express-card reader.
About this task
The following image indicates the location of the smart-card reader and provides a visual representation of the removal
procedure.

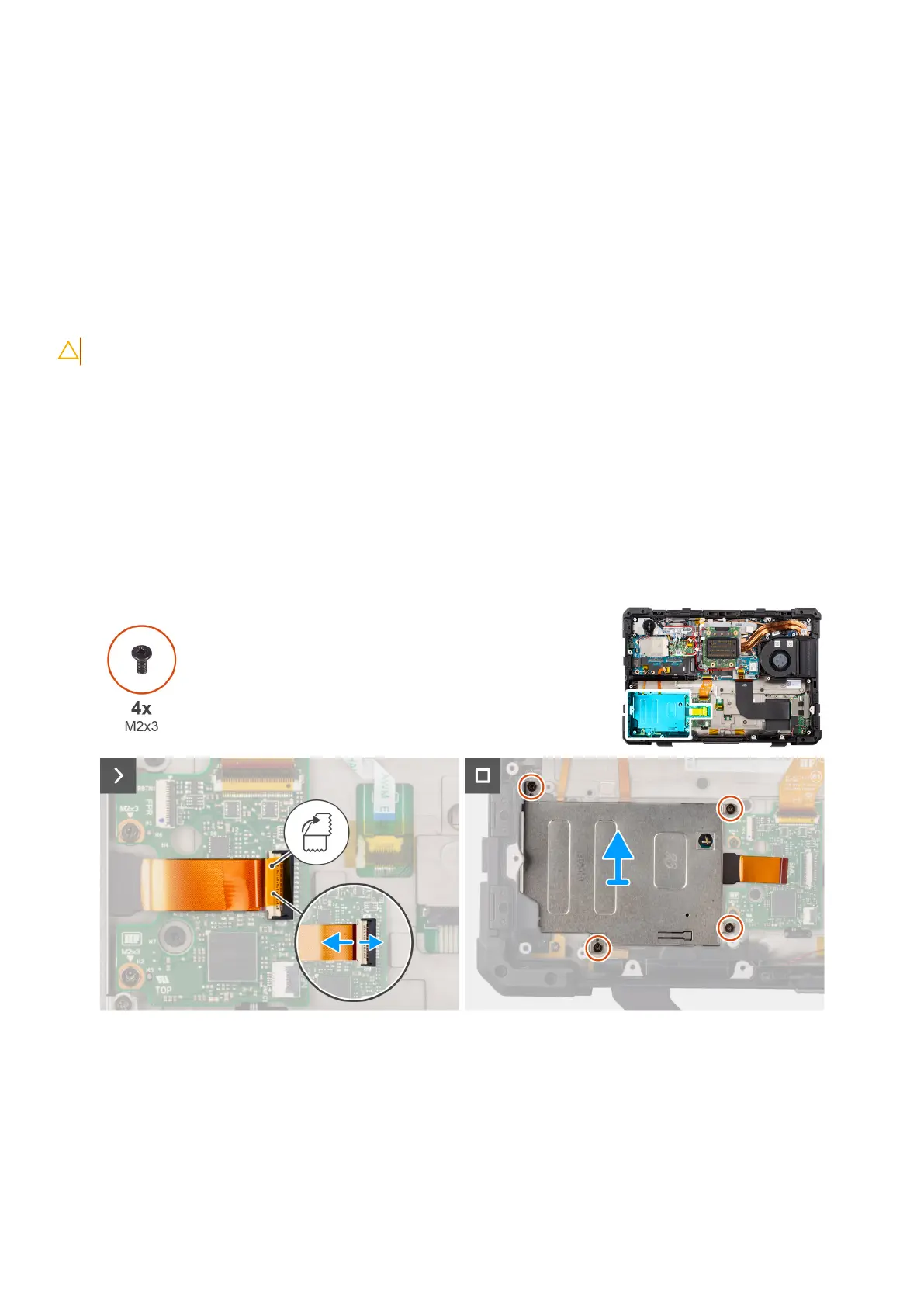

Figure 78. Removing the smart-card reader
Steps
1. Peel the adhesive tape and disconnect the smart-card reader flat-printed cable from the connector on the USH board.
2. Remove the four (M2x3) screws that secure the smart-card reader to the computer chassis.
3. Lift and remove the smart-card reader from the computer chassis.
Removing and installing Field Replaceable Units (FRUs)
115
