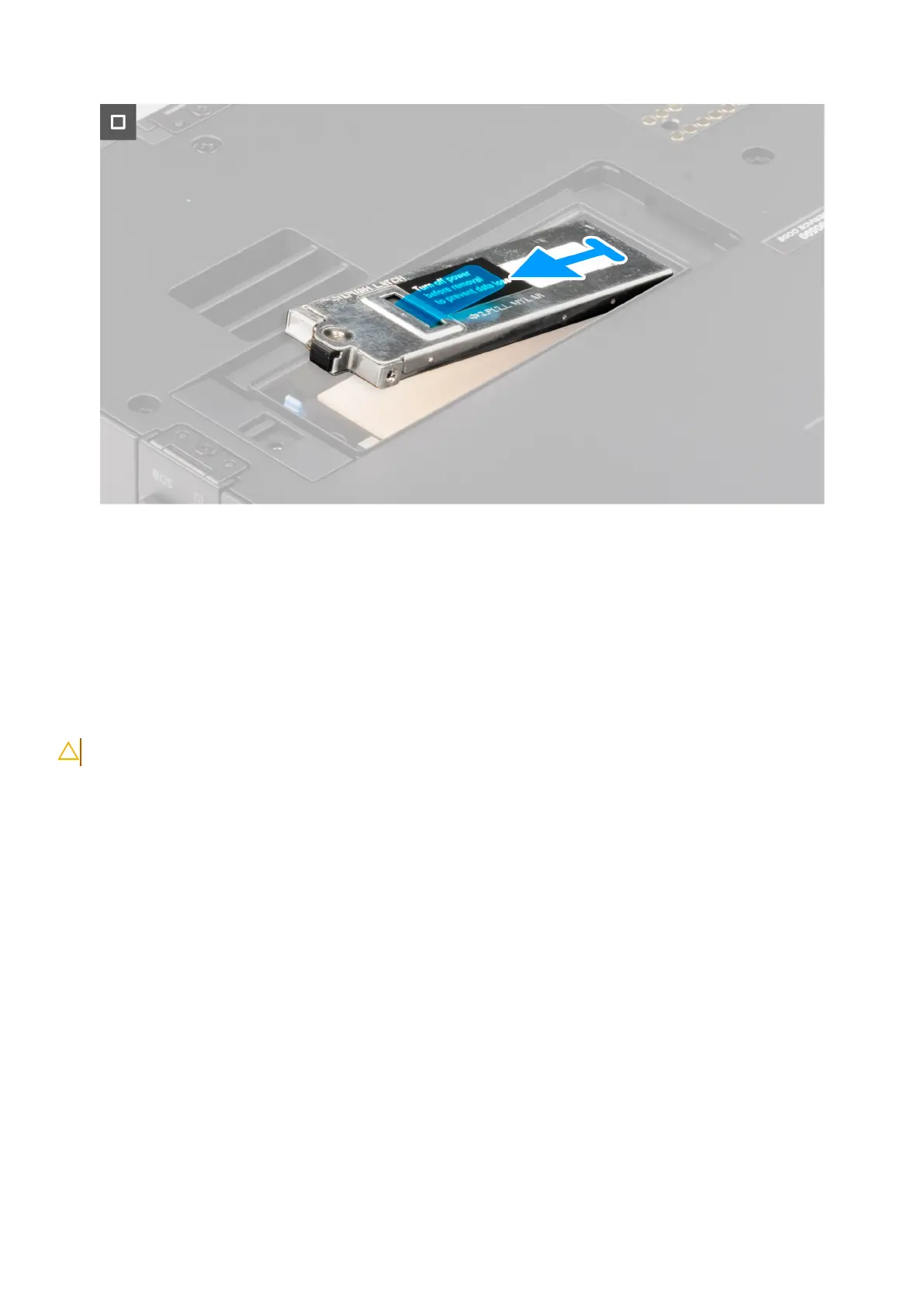

Figure 38. Removing the solid state drive carrier
Steps
1. Remove the (M2x3) screw on the SSD door-latch cover.
2. Push the SSD latch and lift the SSD door.
3. Push the carrier latch to release the SSD carrier.
4. Pull the mylar tape to lift the SSD carrier off the computer.
Installing the solid state drive carrier
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the solid state drive carrier and provides a visual representation of the installation
procedure.
