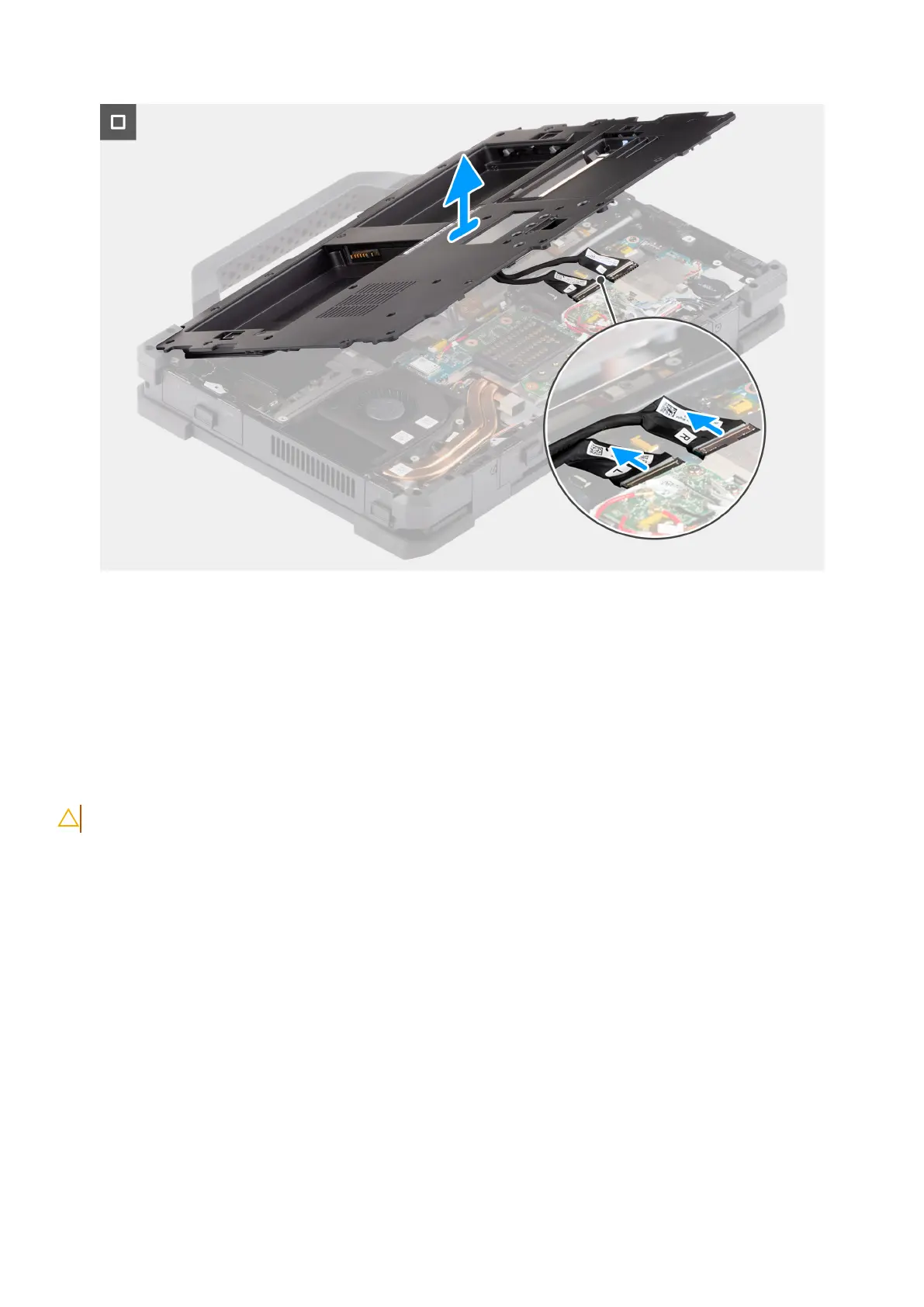

Figure 48. Removing the base cover
Steps
1. Remove the 27 (M2.5x5) and four (M2x3) screws that secure the base cover to the computer chassis.
2. Lift the base cover slightly to unroute the left and right battery cables from the computer chassis.
3. Disconnect the left and right battery cables from the connectors on the system board.
4. Lift the base cover from the computer chassis.
Installing the base cover
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the base cover and provides a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
