Steps
1. Disconnect the GPS antenna cable on the GPS board.
2. Disconnect the GPS flat-printed cable from the connector on the GPS board.
3. Remove the two (M2.5x5) screws that secure the GPS board to the computer chassis.
4. Lift the GPS board from the computer chassis.
Installing the GPS board
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the GPS board and provides a visual representation of the installation procedure.

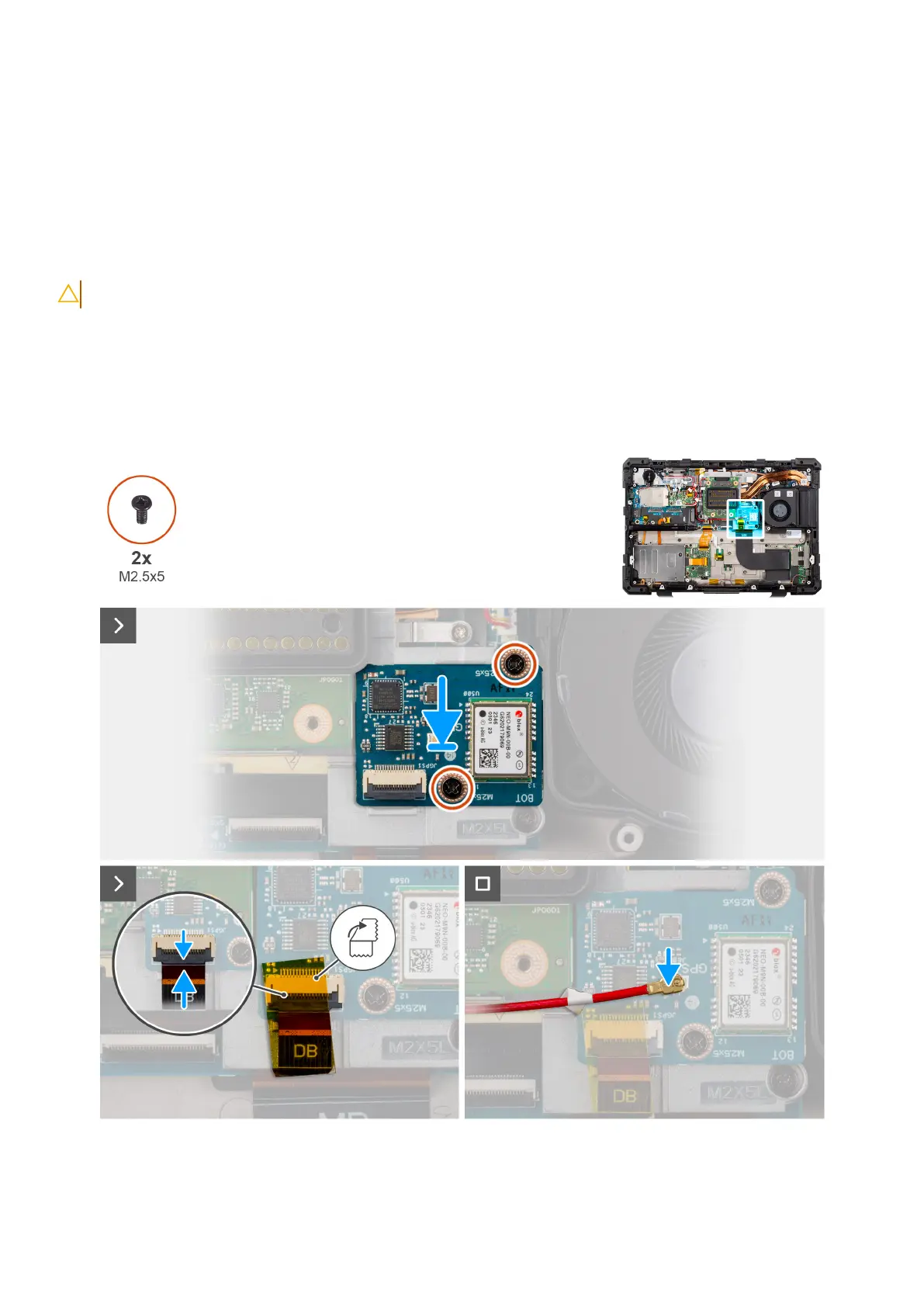

Figure 59. Installing the GPS board
