About this task

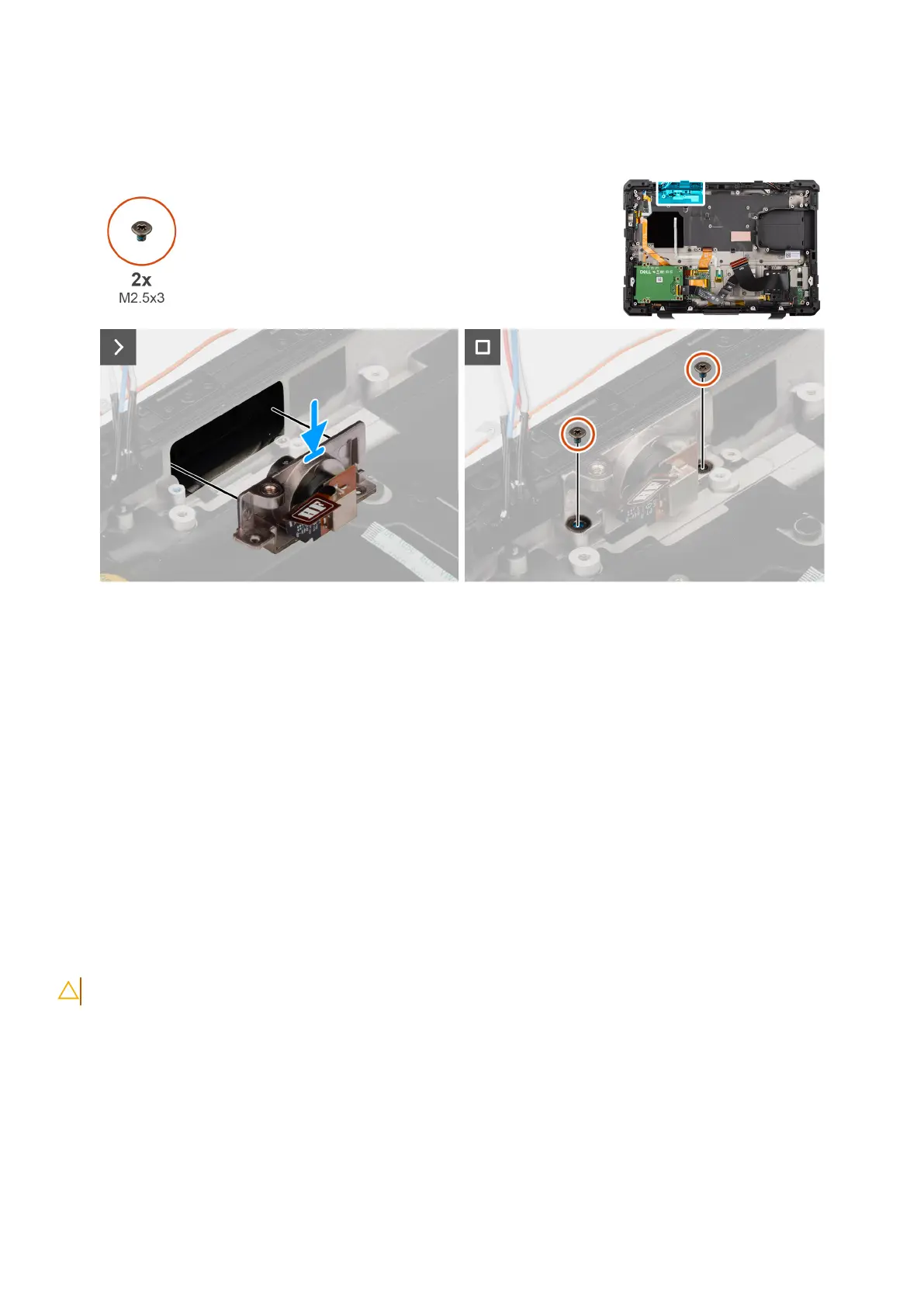

The following image indicates the location of the rear Fischer USB port and provides a visual representation of the installation
procedure.
Figure 63. Installing the rear Fischer USB port
Steps
1. Align the screw holes on the Fischer USB port with the screw holes on the computer chassis.
2. Replace the two (M2.5x3) screws to secure the rear Fischer USB port to the system board.
Next steps
1. Install the rear I/O-board.
2. Install the base cover.
3. Install the solid state drive carrier.
4. Install the batteries.
5. Follow the procedure in after working inside your computer.
RF switch board
Removing the RF switch board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the batteries.
3. Remove the solid state drive carrier.
4. Remove the base cover.
Removing and installing Field Replaceable Units (FRUs)
97
