About this task

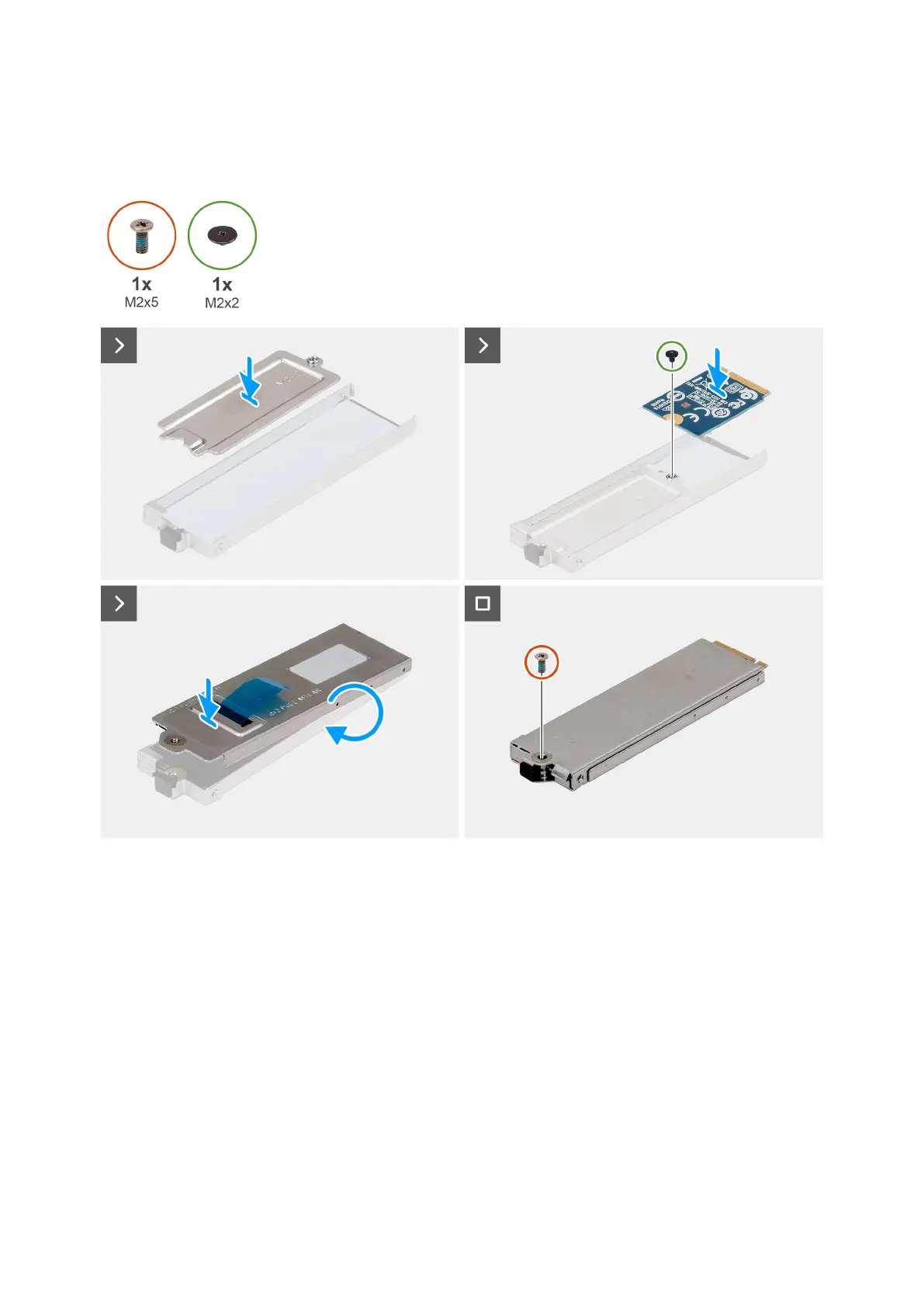

The following image indicates the location of the solid state drive and provides a visual representation of the installation
procedure.
Figure 42. Installing the M.2 2230 solid state drive into the carrier
Steps
1. Place the SSD extender on the SSD carrier.
2. Replace the (M2x2) screw to secure the M.2 2230 solid state drive into the SSD carrier.
3. Place the SSD carrier cover and flip the SSD carrier.
4. Replace the (M2x5) screw to secure the SSD carrier cover to the SSD carrier.
Next steps
1. Install the solid state drive carrier.
2. Follow the procedure in after working inside your computer.
