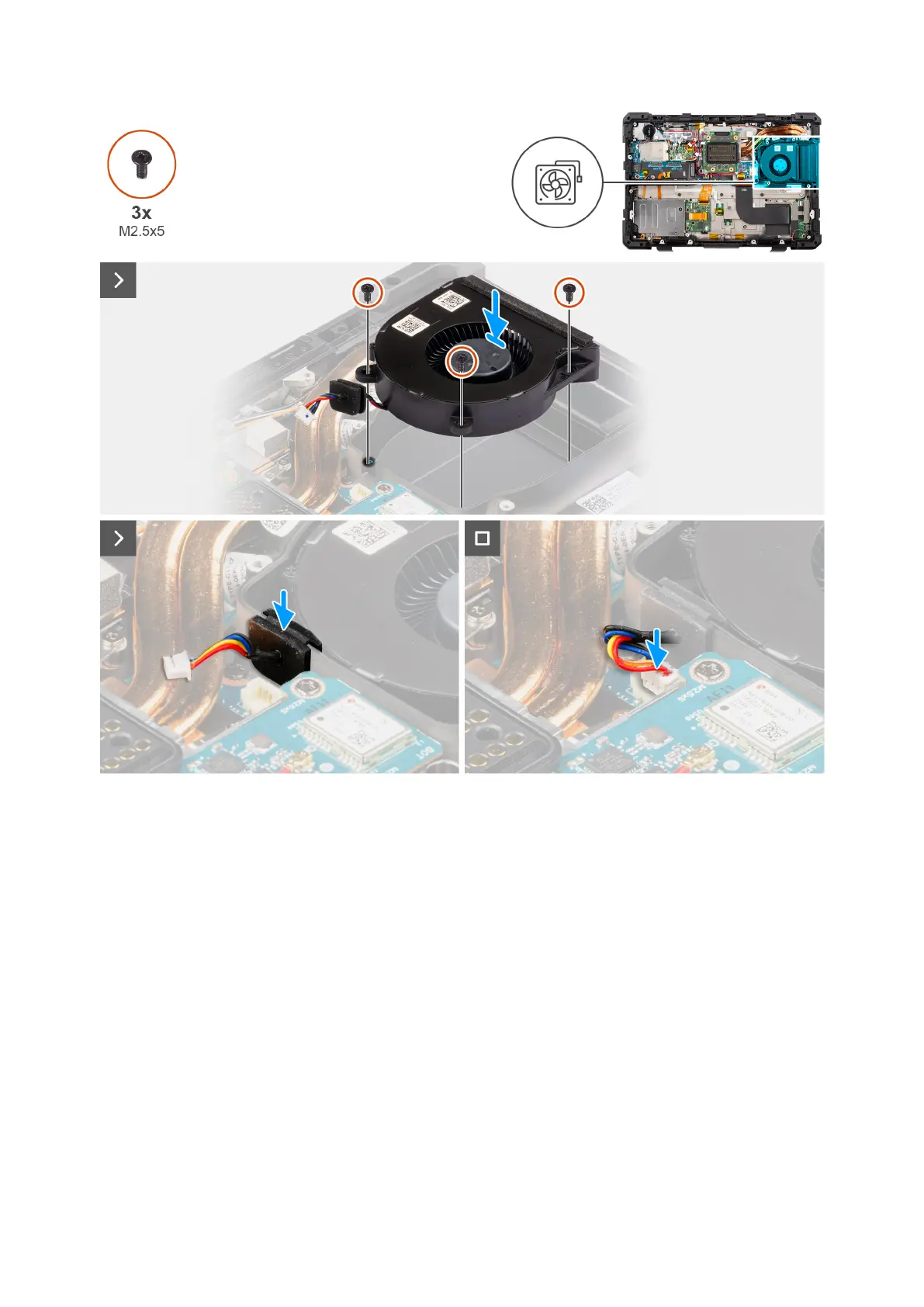

Figure 57. Installing the fan
Steps
1. Place the fan on the computer chassis.
2. Connect the fan cable connector clip to the chassis.
3. Connect the fan cable to its connector on the system board.
4. Replace the three (M2.5x5) screws that secure the fan to the computer chassis.
Next steps
1. Install the base cover.
2. Install the solid state drive carrier.
3. Install the batteries.
4. Follow the procedure in after working inside your computer.
