Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

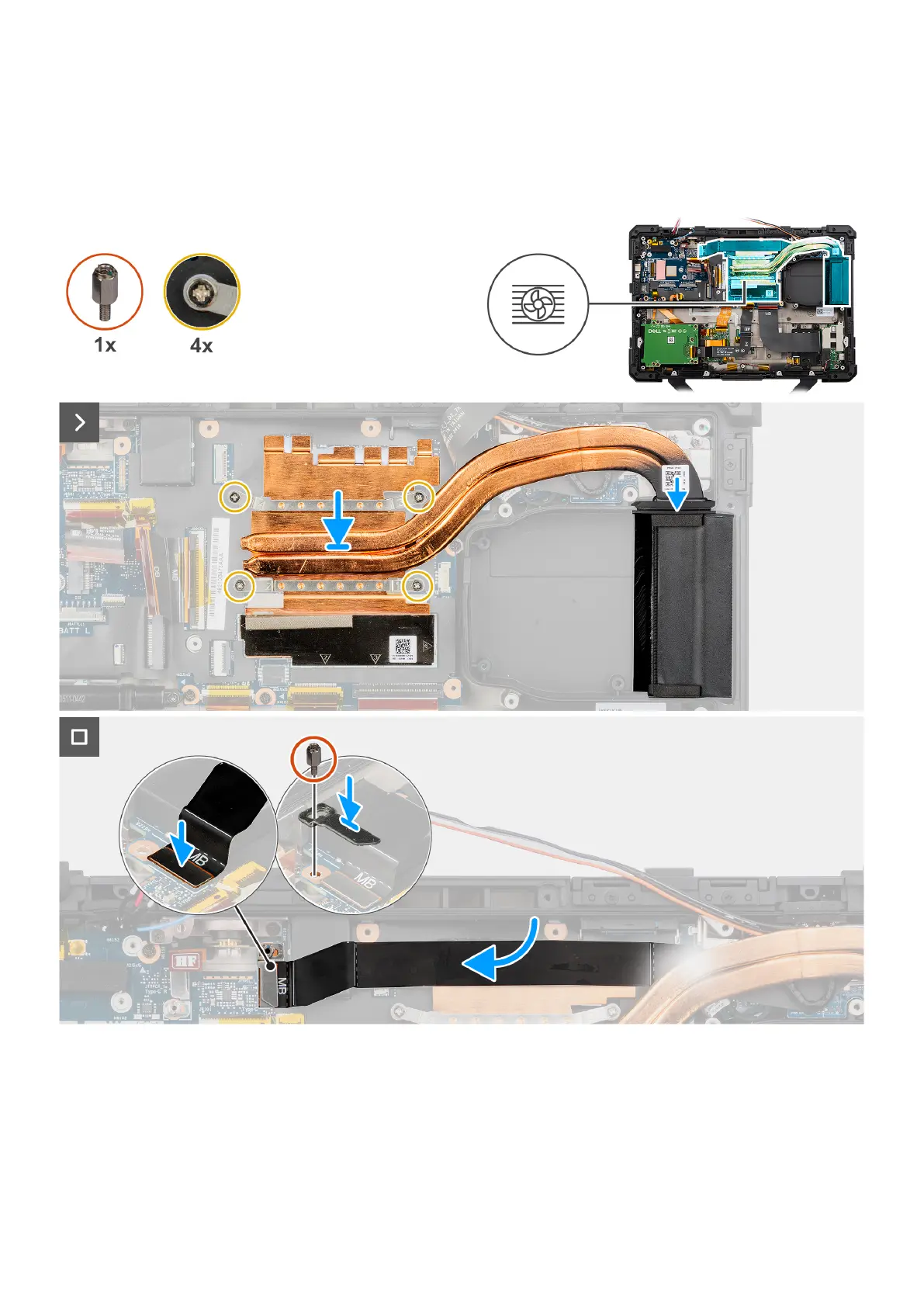

The following image indicates the location of the heat sink and provides a visual representation of the installation procedure.
Figure 87. Installing the heat sink
Steps
1. Align the heat sink screw holes with the system board and place it on the computer chassis.
2. Replace the four (captive) screws to secure the heat sink to the system board.
3. Connect the left Type-C flat printed cable connector on the system board.
4. Place the flat printed cable connector bracket on the connector and replace the standoff nut.
Removing and installing Field Replaceable Units (FRUs)
125
