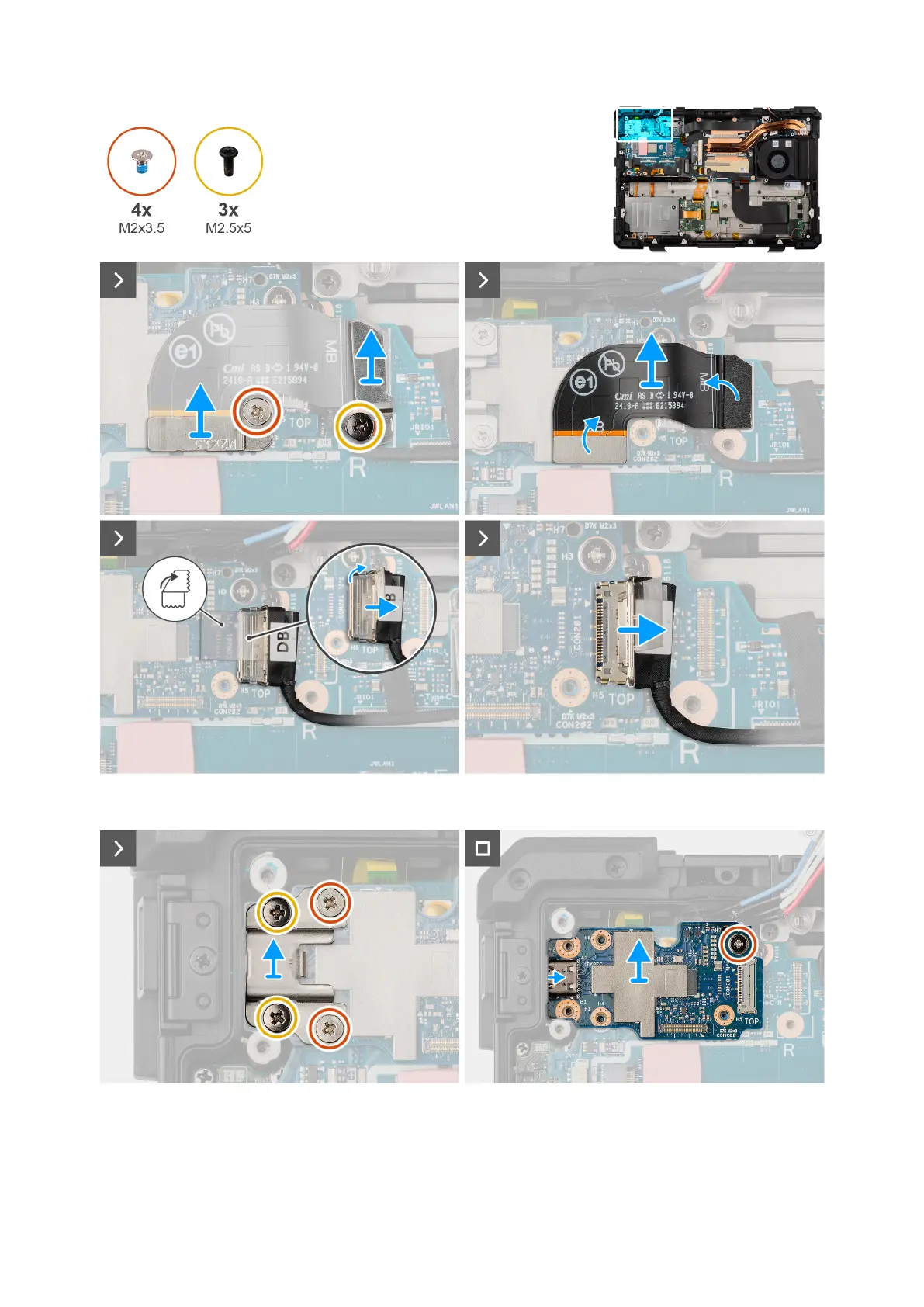

Figure 98. Removing the right Type-C board
Figure 99. Removing the right Type-C board
Steps
1. Remove the (M2x3.5) and (M2.5x5) screw that secures the flat printed cable holder to the right Type-C board.
Removing and installing Field Replaceable Units (FRUs)
137
