Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the solid state drive and provides a visual representation of the installation
procedure.

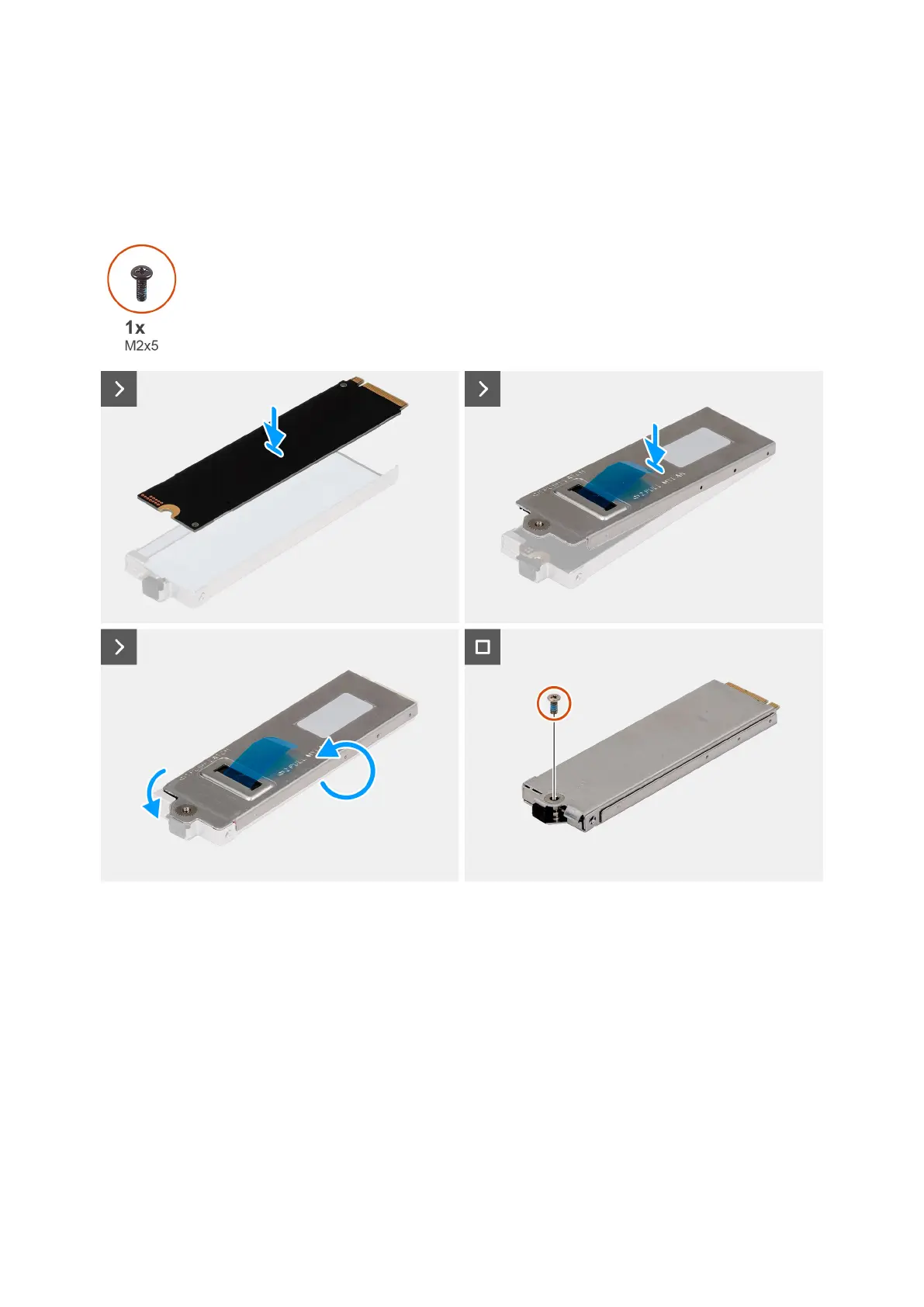

Figure 44. Installing the M.2 2280 solid state drive into the carrier
Steps
1. Place the M.2 2280 solid state drive into the SSD carrier.
2. Place the SSD carrier cover.
3. Flip the SSD carrier.
4. Replace the (M2x5) screw to secure the SSD carrier cover to the SSD carrier.
Next steps
1. Install the solid state drive carrier.
2. Follow the procedure in after working inside your computer.
