6. Description of the Add-On instruction call

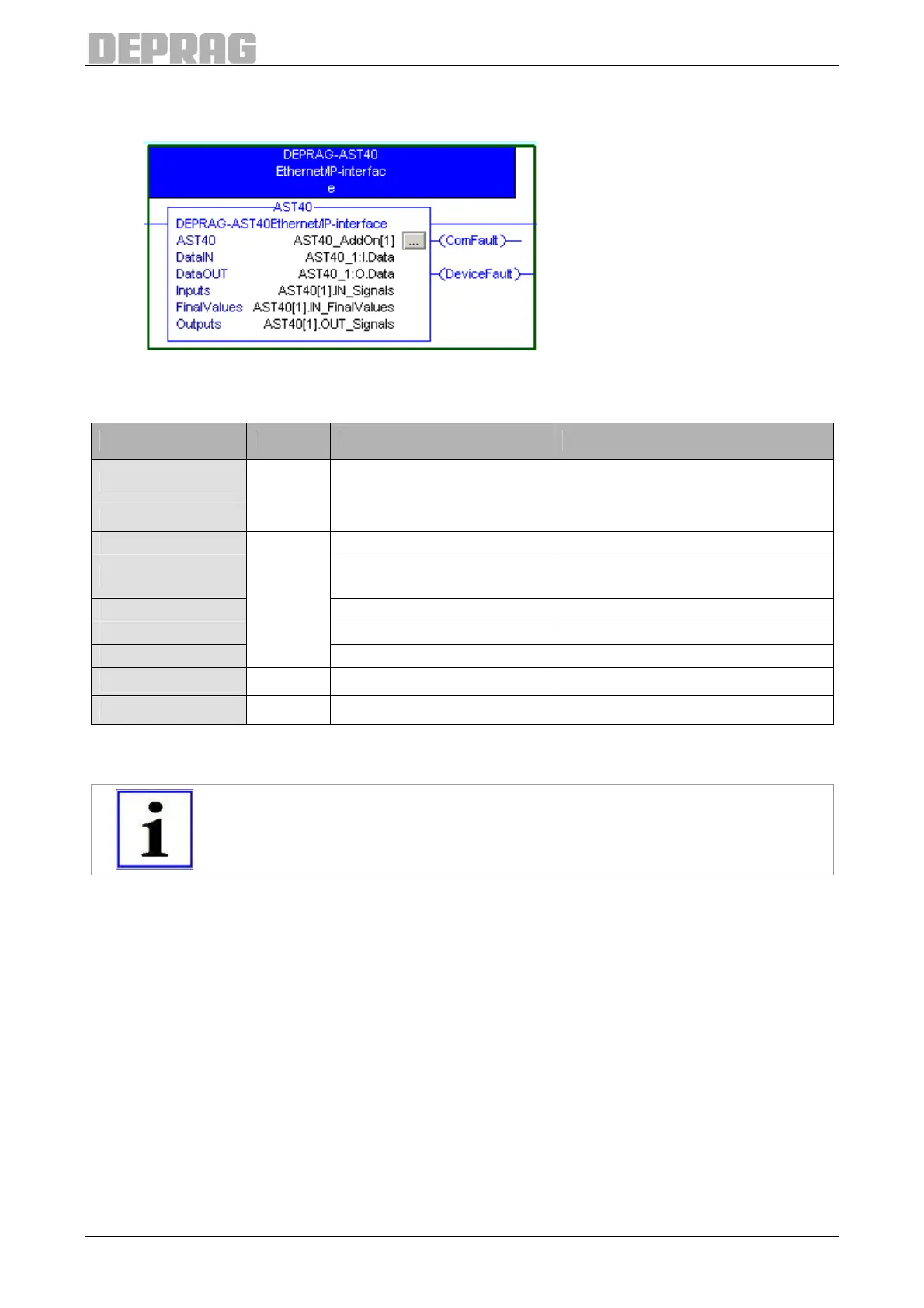

Figure 27: Import AST40_Control.L5X – Add-On instruction call
Designation Type Data type Description
EnableIn
IN
Bool
Validation condition of the
module
AST40 AST40 Add-On Instruction instance
DataIn SINT[228] EtherNet/IP - module input data
DataOut SINT[224]
EtherNet/IP - module output
data
Inputs AST40_IN_Signals AST40 inputs
FinalValues AST40_IN_FinalValues AST40 end value
Outputs
InOut
AST40_OUT_Signals AST40 outputs
ComFault
Output Bool
AST40 communication error
DeviceFault
Output Bool
EtherNet/IP Slave not OK
Table 17: Import AST40_Control.L5X – Add-On Instruction
IMPORTANT
The module AST40_Control still has to be called in the cyclical program!
