37
2.

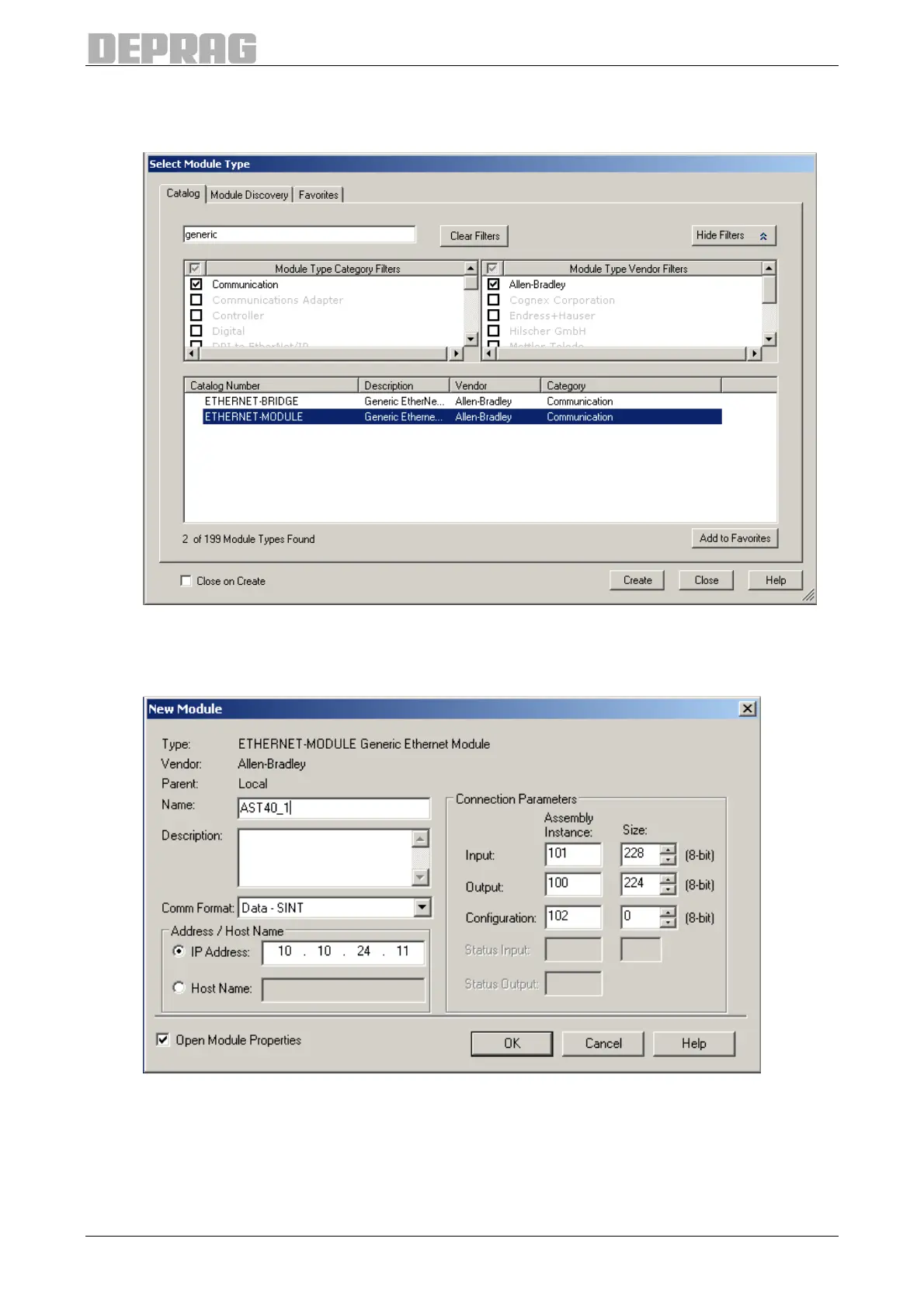

Select the module "ETHERNET-MODULE – Generic Ethernet" and confirm with
"Create".
Figure 8:
Creating Ethernet / IP – select module
3.
Enter the settings and confirm with "OK".
Figure 9:
Creating Ethernet / IP – confirm settings
