97

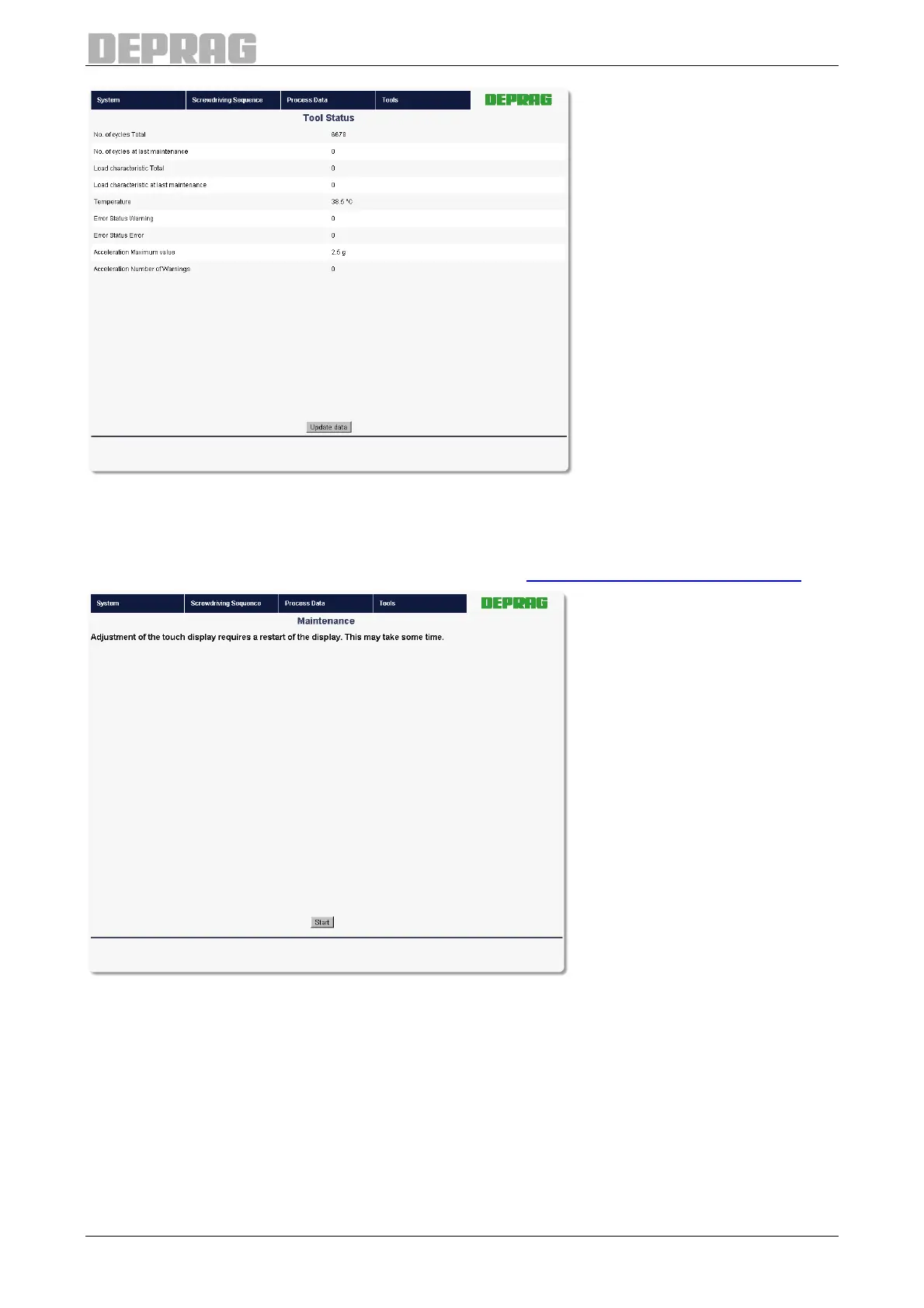

Figure 92:
Tool status
10.3.3.6 Maintenance
Calibration of the display
is started on this page (see
14.3
Calibrating the touch display
).
Figure 93:
Adjustment of the touch display
10.3.3.7 Log
in
You can log in again on this page if the AST40 s
equence controller had to be re-started or
the web-based user in
terface remained open.
You can also log in as another user.
96
98
