Deprag AST40-1 User Manual

71

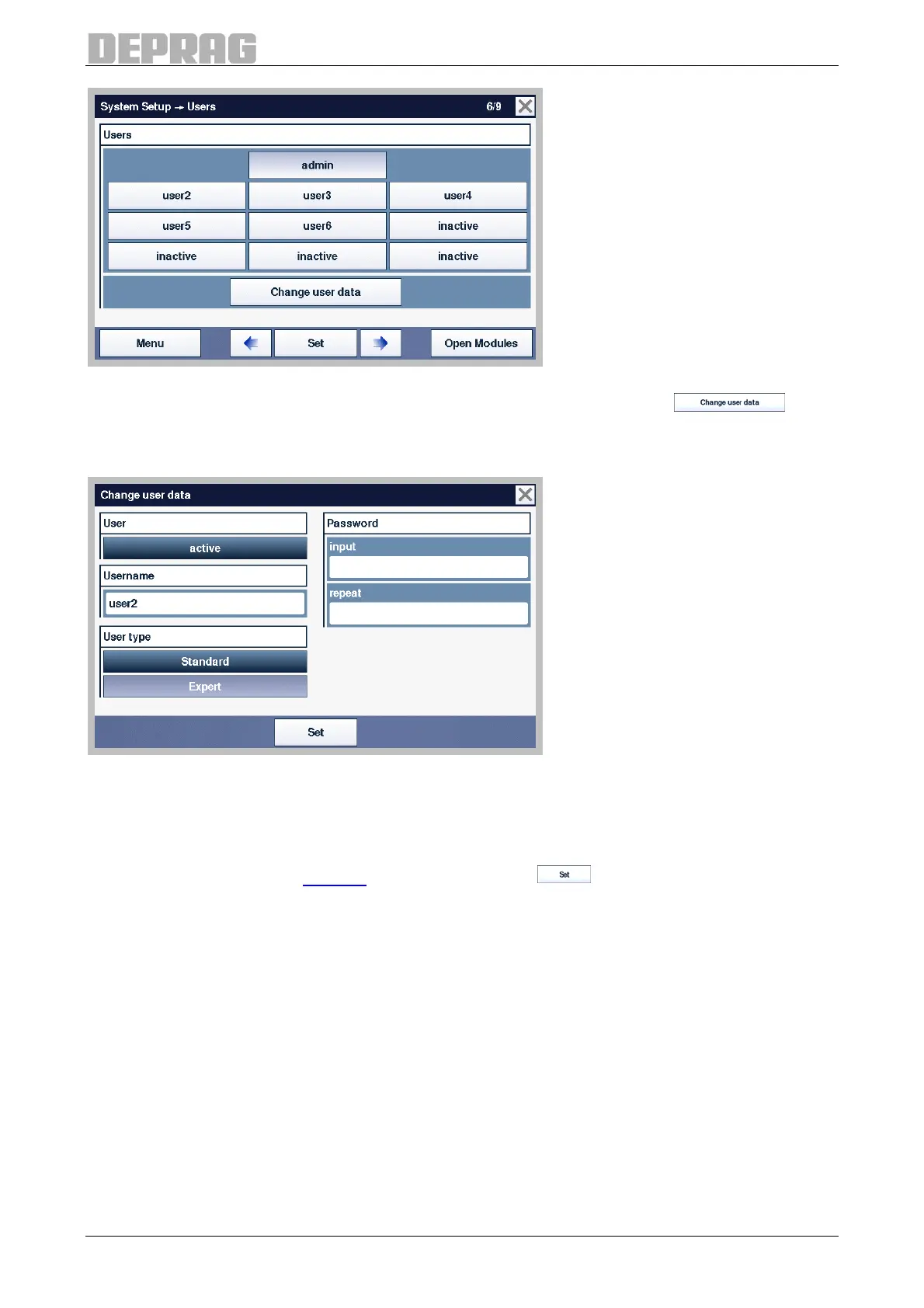

Figure 54: System setup – Users
Select the user you wish to create or modify and then press on the key .
Users that have not been prepared or were deleted again can be recognized by the fact
that the button is set to “inactive”.
Figure 55: Change user data
You can set the selected user to active or inactive in the screen “Change user data”.
Select “active” if you want to create a new user or change user data.
Enter a user name and the password for the user. Re-enter the password.
Select the User type (see 8 Users) and then press on .
9.2.5.4 Tool data
All the information on the connected MINIMAT–EC-Servo screwdriver is displayed in the
menu Tool Data.
