58
9 Operation Using the Integrated Touch Display
9.1 Control elements
9.1.1 Buttons
The touch display has different operating areas:
Display fields Display fields can be recognized by the pointed corners. They
only have a display function.
Input fields Input fields can be recognized by the rounded corners.
Buttons Keys are buttons that can be used to access and control the
menu, for example.
Switches Switches are used, for example, in the interface tests to switch the
outputs on and off.
The keys for the menu as well as the open modules are always located along the lower
edge of the display (also see 9.2 Description of the menu structure).
9.1.2 Selecting between two options
If only two options are available for selection, e.g. active or inactive, then the selected
option is displayed in a key. To switch to another option, tap on the key.

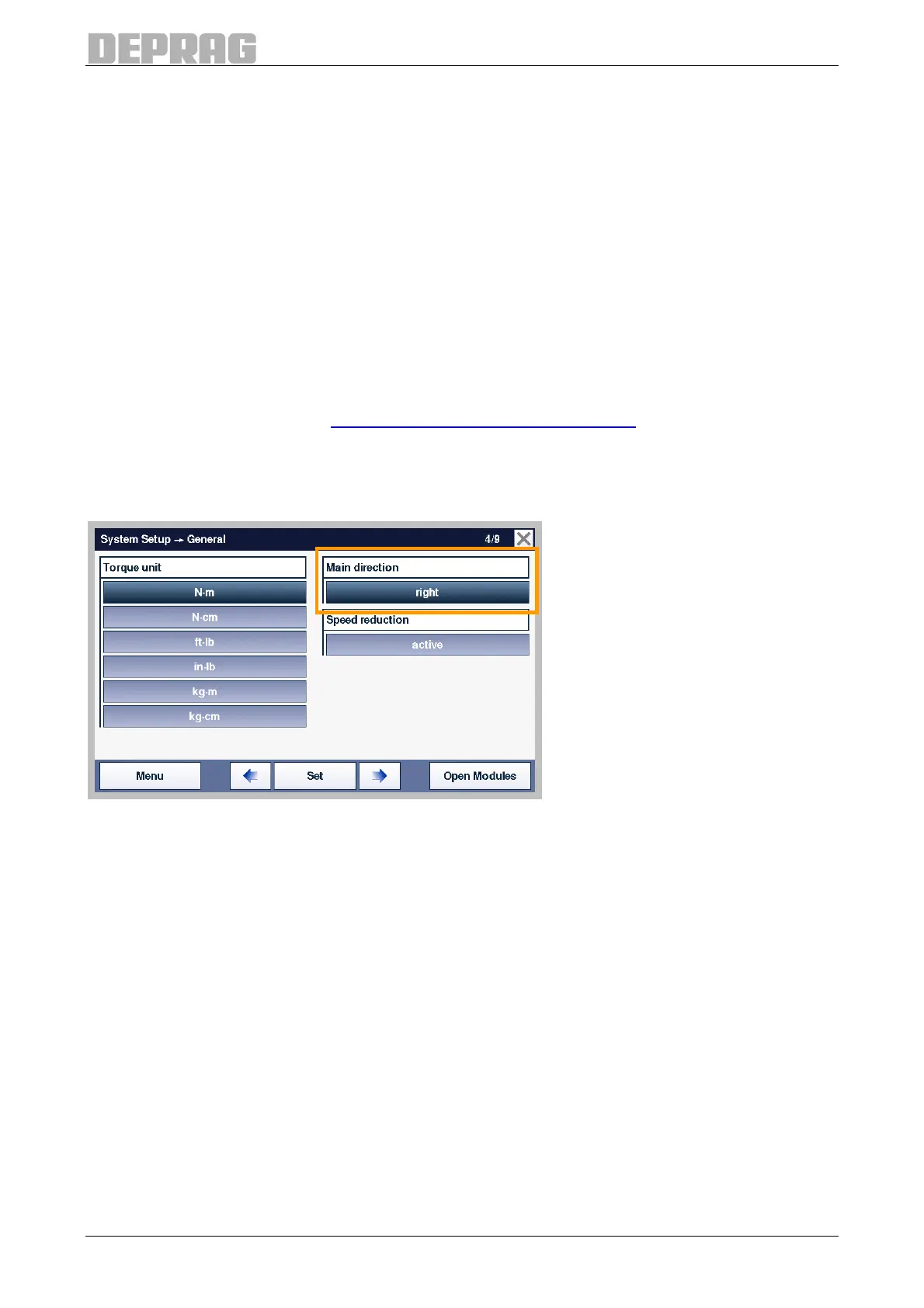

Figure 28: Selecting between two options
