9.2.7 Menu Area - Diagnosis
Various tests and diagnosis can be performed for the connected MINIMAT–EC-Servo
Screwdriver and the AST40 sequence controller in the Diagnosis menu area. In order to
be able to use the menus in the Diagnosis area, a user must be logged in. The menus “I/O
Interface” and “Fieldbus” in the Diagnosis area cause automatic mode to be canceled.

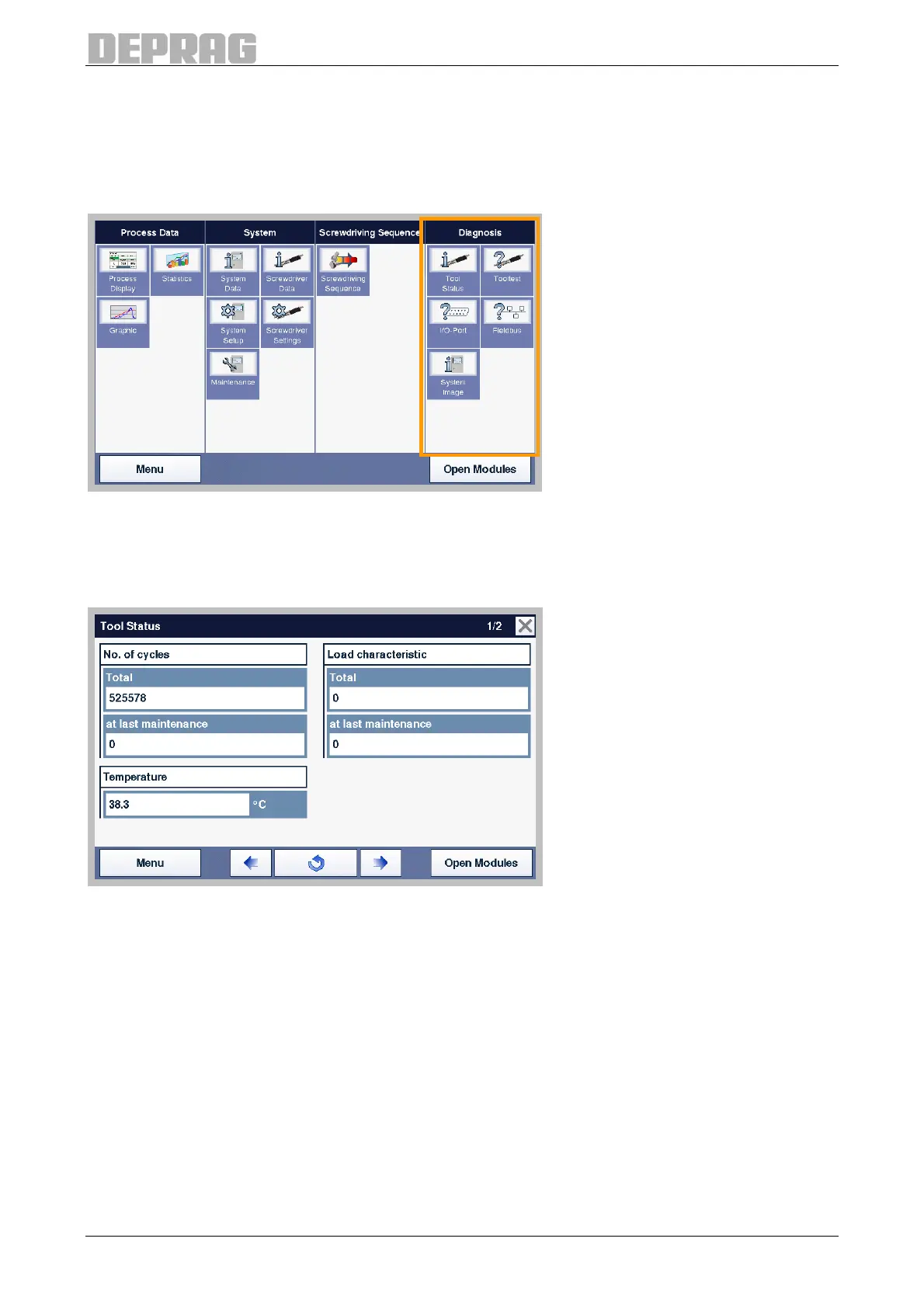

Figure 62: Menu Area - Diagnosis
9.2.7.1 Tool status
You can view the status of the connected MINIMAT–EC-Servo Screwdriver here.
Figure 63: Tool status – Page 1
The number of screwdriving cycles is shown on the left side. The total number of
screwdriving cycles performed by the MINIMAT–EC-Servo Screwdriver is displayed as
well as the meter reading at the time of the last service. The current temperature of the
MINIMAT–EC-Servo screwdriver is also displayed.
The load characteristic is shown on the right. The total load characteristics as well as the
load characteristic during the most recent service are displayed.
