40
2.

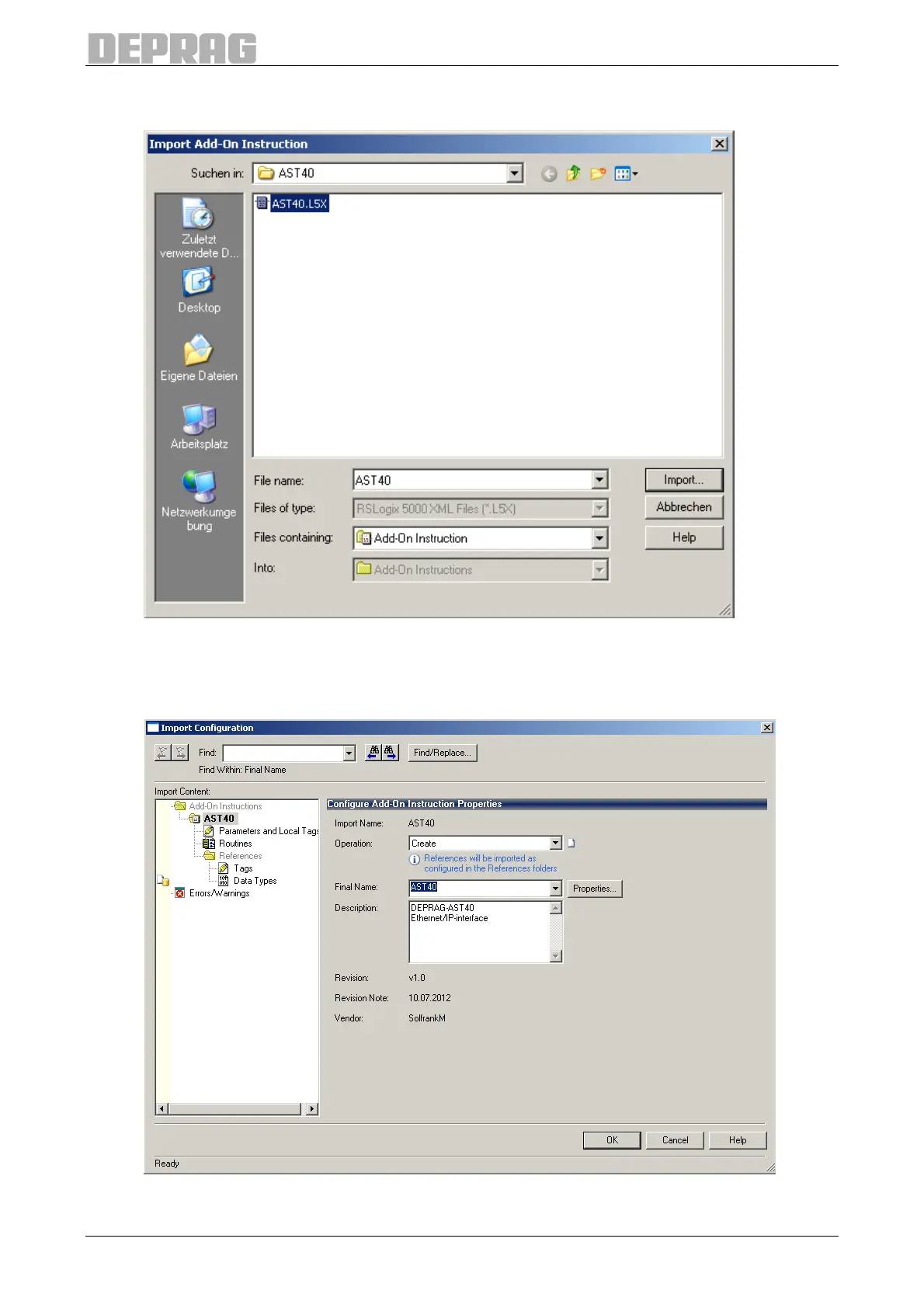

Search for the file "AST40.L5X" (cont
ained in DEPRAG_AST40EIP.zip) and confirm
with "Import":
Figure 11:
Import AST40.L5X – Confirm Import
3.
In the following dialog window user-s
pecific changes can be made to the name
"Final Name" and the description "Descrip
tion" (it is recommended to keep the
name and the description!),
Then confirm with "OK".
Figure 12:
Import AST40.L5X – “Final Name”
39
