74

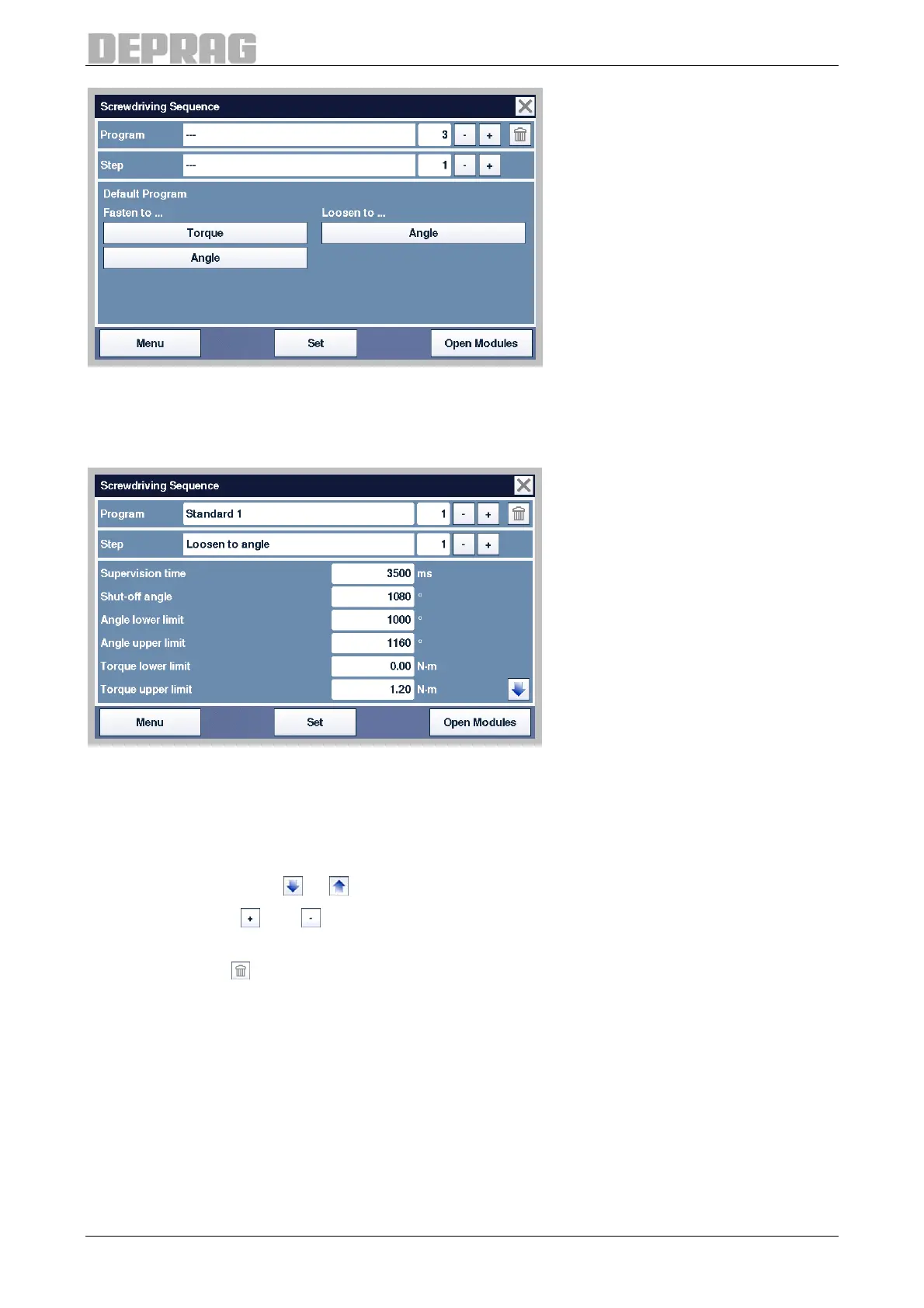

Figure 60: Creating a Default Program
It is possible for you to create a default program, if there is no program available. Select
the required screwdriving program. It will then be created by the AST40 sequence
controller.
Figure 61: Changing the Screwdriving Sequence
To modify the program name, press on the entry field on the right beside “Program”. The
superimposed keyboard can then be used to alter the name.
To modify the parameters, press on the number that is to be changed. The superimposed
keypad can then be used to set the required value.
Press on the arrow key or , to have other parameters to this program step displayed.
Press on the keys
and , to have other program steps displayed or directly enter the
step number.
Press on the key , to delete the current screwdriving sequence. Individual program steps
can however only be deleted via the web user interface.
