DGSHAPE DWX-52DCi - Page 36

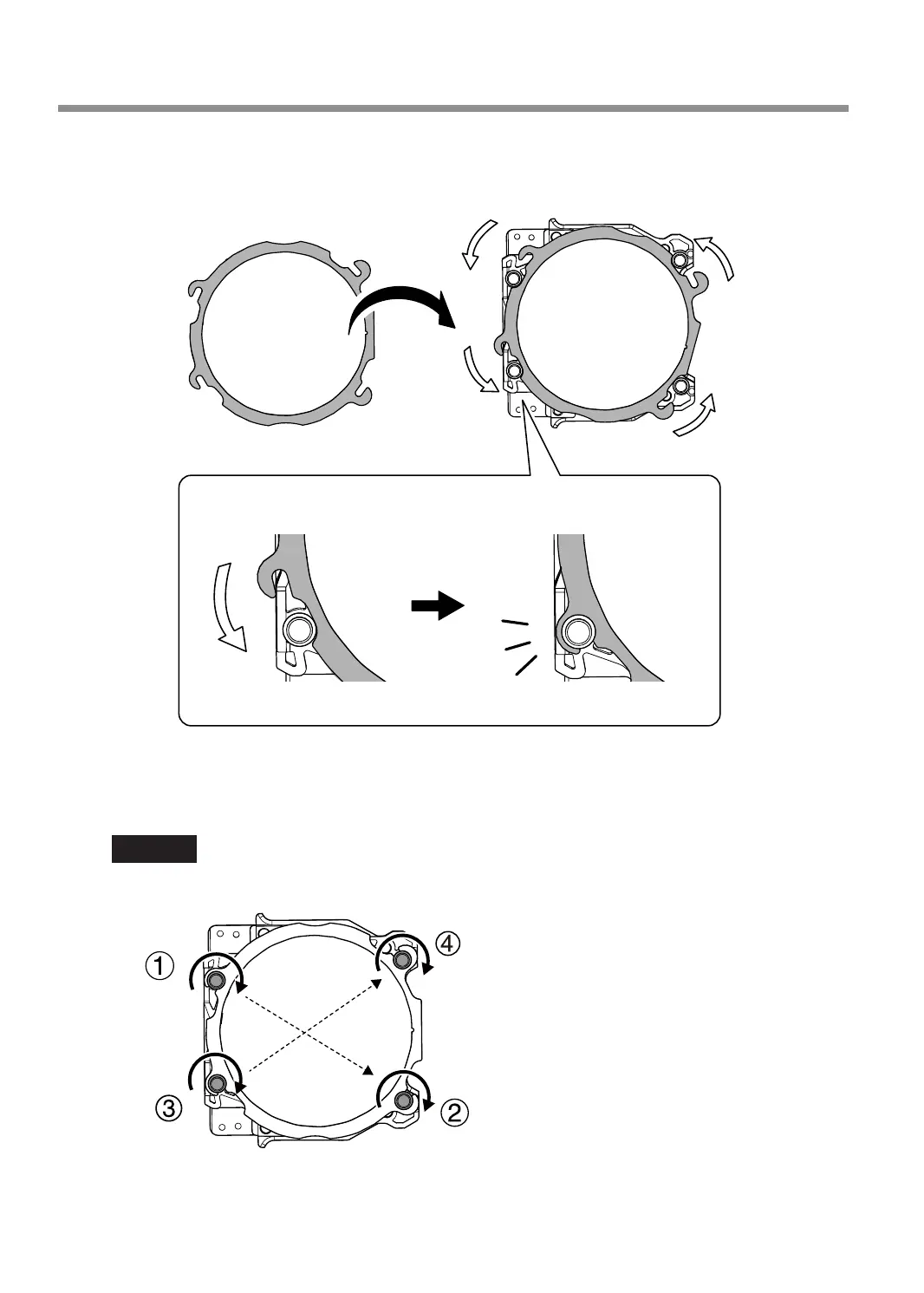

2 Turn the adapter cap in the direction of the arrows to attach it to the screws.
E
Use a torque screwdriver to tighten the screws in the locations shown in the gure (4
locations).
Tighten the screws until they click into place.
CAUTION
To prevent workpiece damage, tighten the screws in order across the diagonals.
Starting Milling
36
Chapter 2 Milling
