Manuale operativo
CHORUS
54 Rev. 0 del 06/2012
4.5.1 H
OW TO USE THE
C-L
IST
When the C-list window opens, there may be two possible situations:

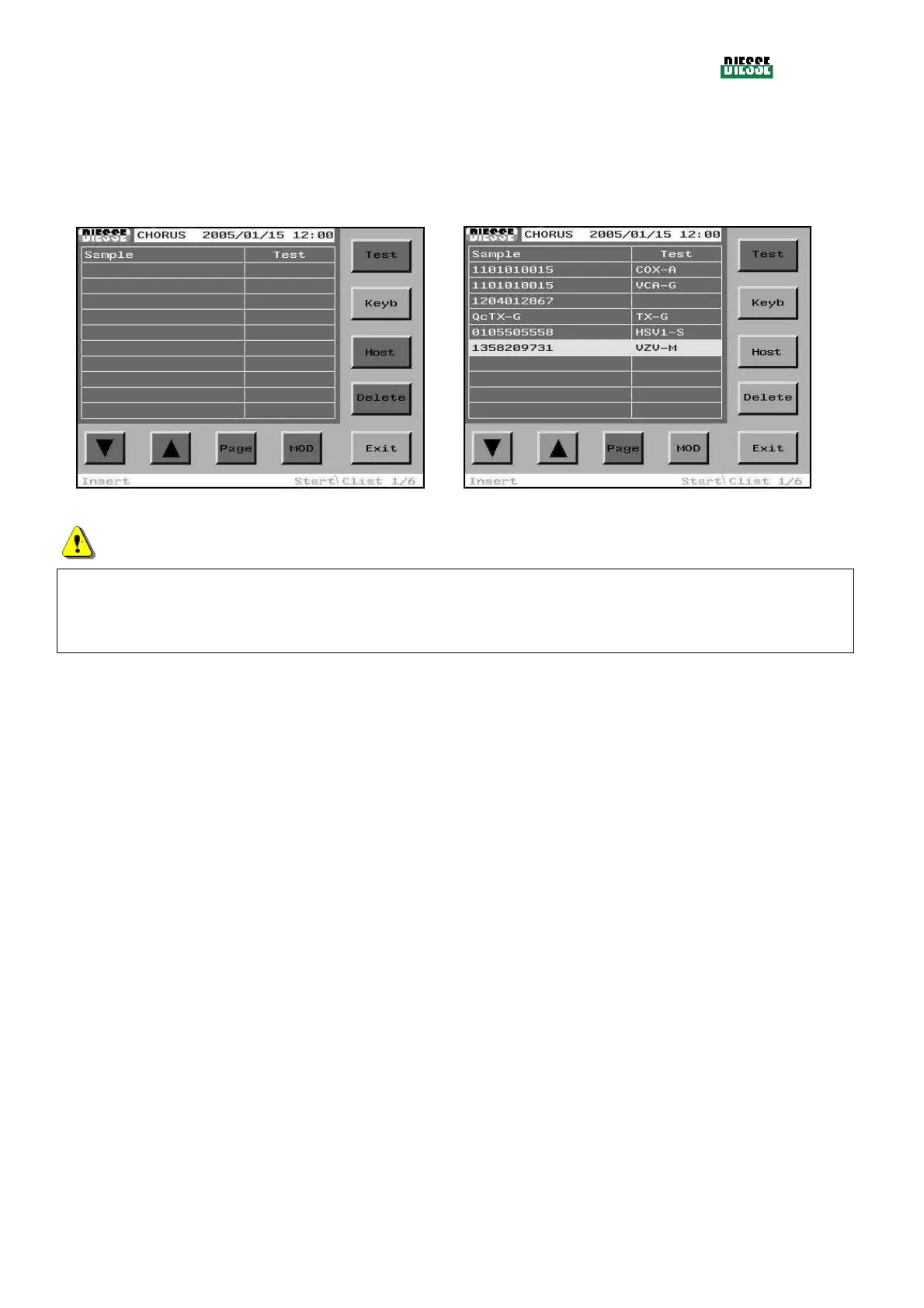

First case: list empty Second case: list compiled
fig. 39 fig. 40
ATTENTION
It is not possible to start the compilation of a C-list unless at least one sample code has been inserted,
because each test must be associated to a sample code already present. An empty C-list, therefore,
will disable all of the keys except the Edit and Exit keys.
Apart from the limit reported above, there are no differences in the compilation procedure for an empty
list compared to one already compiled.
Note:
To not have to move, once entered into the R-list, any strips inserted during the compilation of the C-
list, it is essential to position the strips associated with the calibrators from position 1 onwards, without
empty positions.
