Manuale operativo
CHORUS
78 Rev. 0 del 06/2012
The possible codes of the operations being performed on the samples are the following:
TR: Transfer
W1 W2 W3: Washings in the three stations
R1 R2 R3: Optic readings in the three stations
For the error codes, see Errore. L'origine riferimento non è stata trovata..

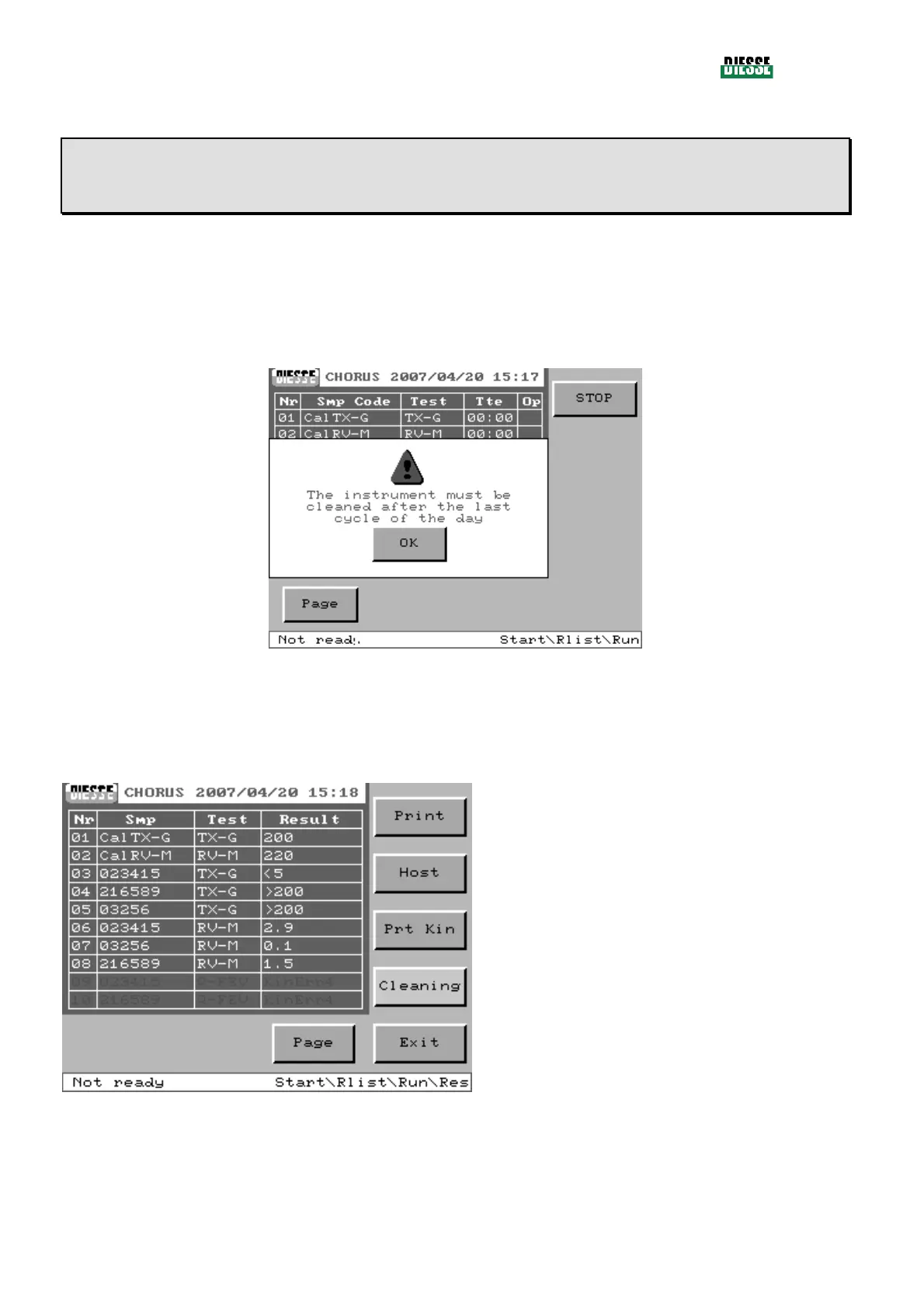

At the end of the cycle a message box notifies the operator it is necessary to execute a washing at the
end of the working day, to avoid the deposit of molds.
fig. 88
4.8.2 C
YCLE RESULTS
At the end of the work cycle the following window appears, reporting the results of the last cycle
performed
Print: prints the results
Host: sends the results to the Host
PrtKin: prints the kinetics
Cleaning: executes the washing of the circuit of
the buffer solution
Pag: visualizes the next page of the results
Exit: returns to the main window
fig. 89
Note:
The lines relative to strips which have not been processed due to error are shown in red.
The strip codes inserted manually are shown in magenta.
